5 Service programs
Training manual Convotherm 4 71
5.2.2.2 I/O tab
The 'I/O' tab provides on/off switching of all the actuators.

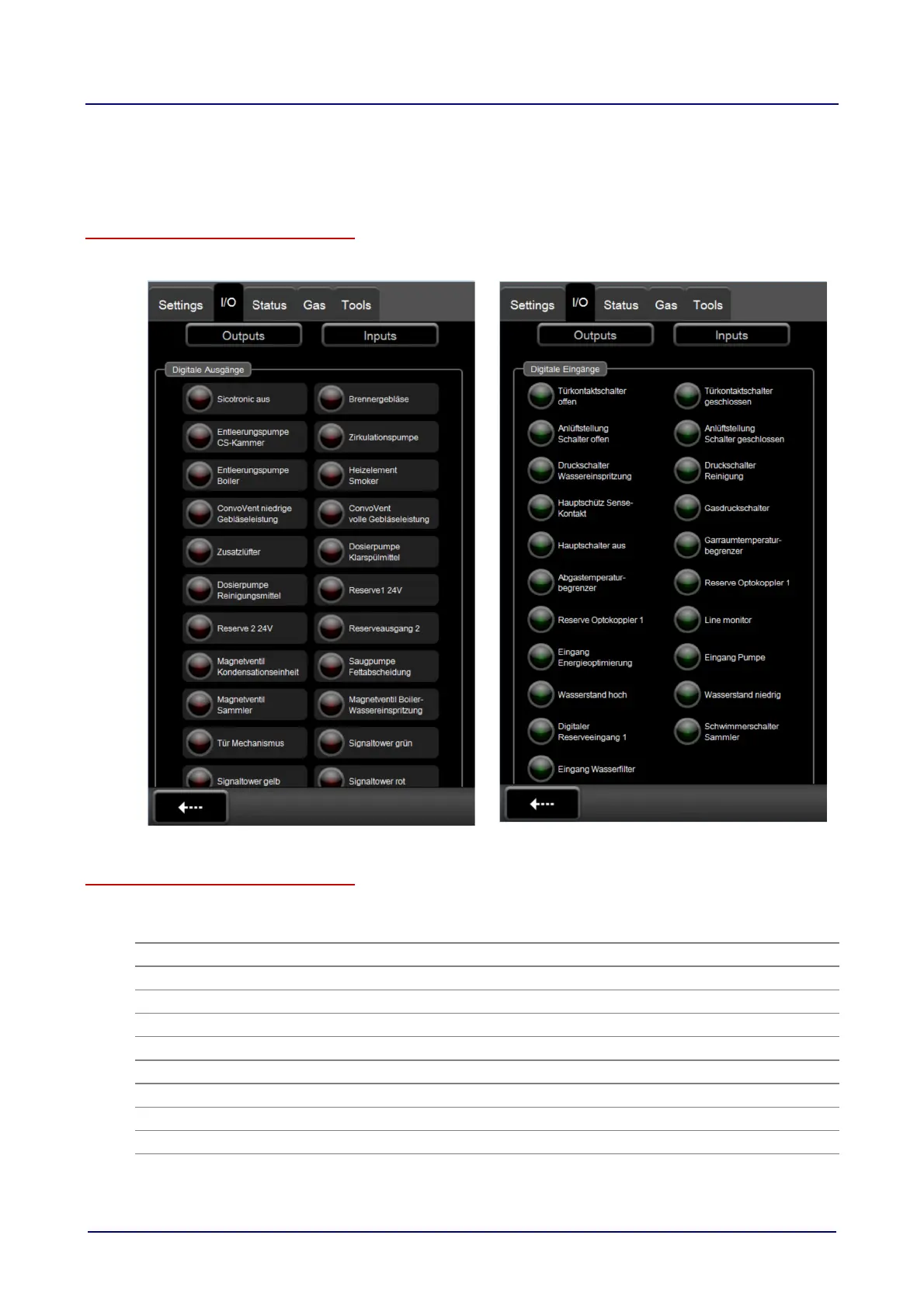

Layout of the 'I/O' tab
Digital outputs Digital inputs
Functions in the 'I/O' tab
Digital outputs
Name Name
Sicotronic out Burner fan
CS-chamber drainage pump Circulation pump
Boiler drainage pump Smoker heating element
ConvoVent low extraction rate ConvoVent full extraction rate
Extra fan Rinse-aid dispensing pump
Cleaning-agent dispensing pump Spare 1 24V
Spare 2 24V Spare 1
Suction pump grease filter Collector solenoid valve
Boiler/water-injection solenoid valve Door mechanism
