Welbilt Convotherm 4 - Wiring Compartment; Gas Appliances

3 Appliance construction / modules
Training manual Convotherm 4 29
3.3.2 Gas appliances
Wiring compartment

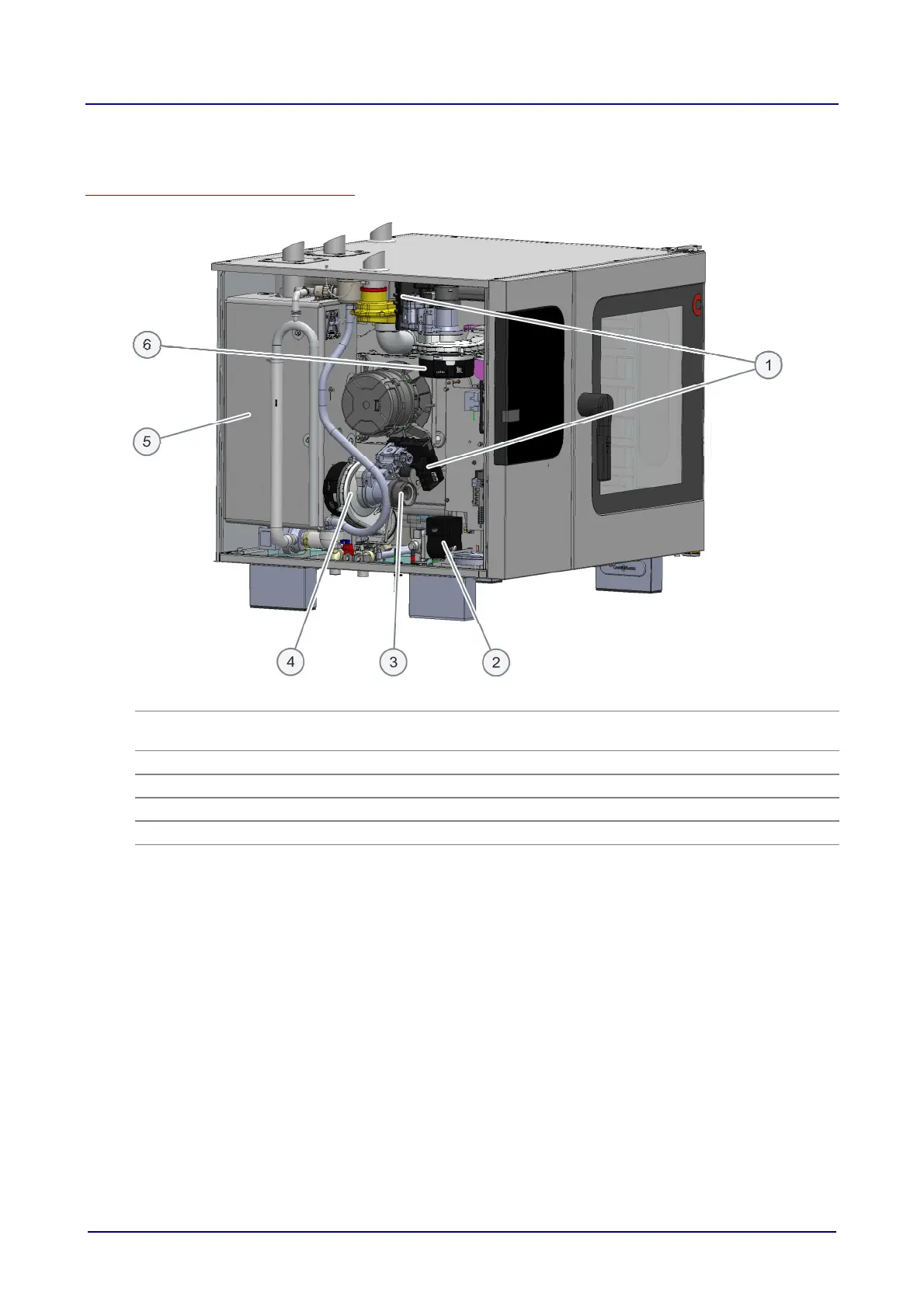

Item Name Function
1 Digital automatic burner
control unit
Generates the ignition voltage / monitors the flame
2
Main gas valve Shuts off gas supply when safety thermostat trips
3
Venturi gas/air mixture
4
Boiler burner assembly Boiler heating element
5
Boiler Steam generation
6
Convection burner assembly Convection heater
