5.2.2.4 Gas tab
The 'Gas' tab provides a facility for diagnostic testing and burner adjustment in gas appliances.

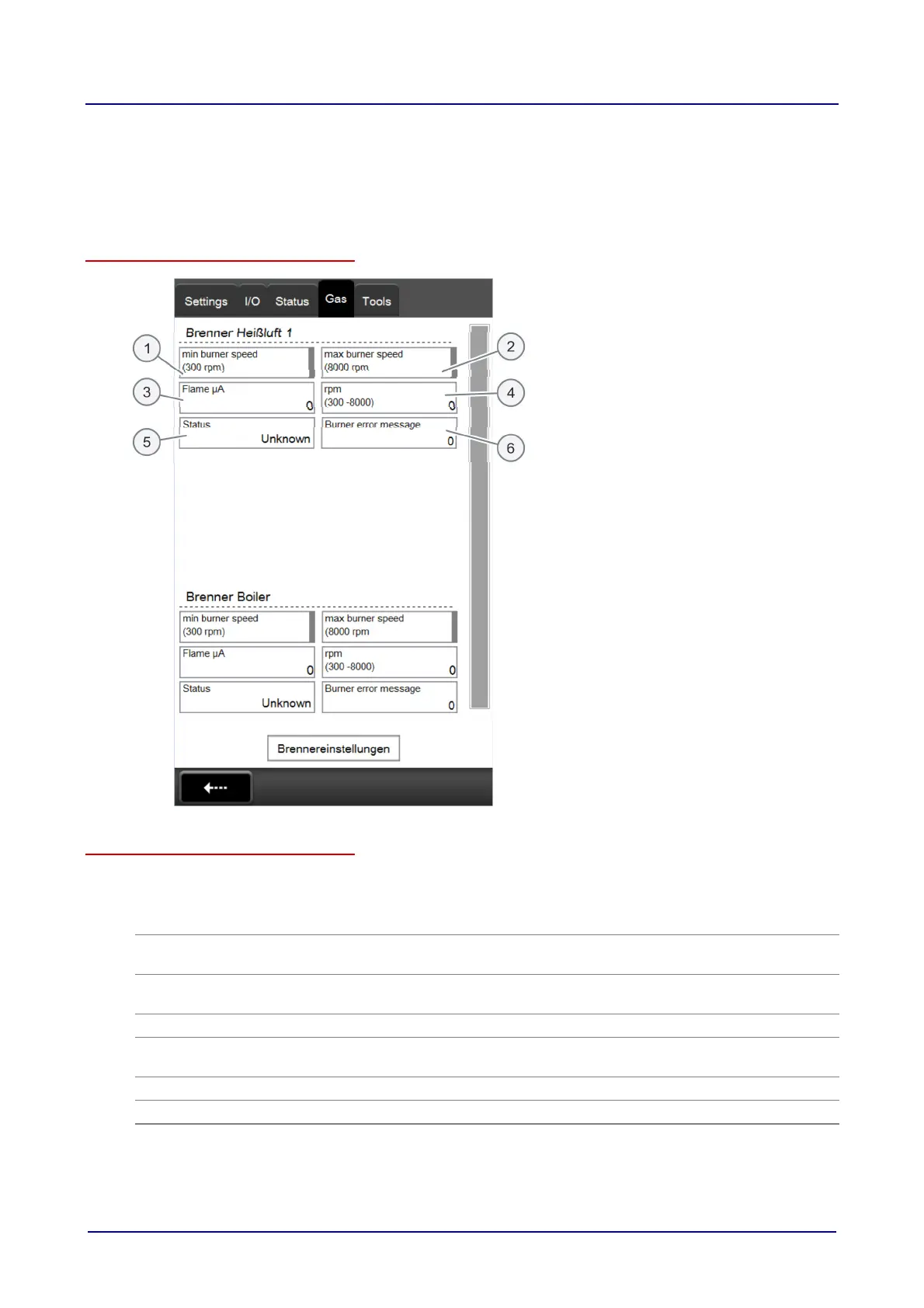

The following image shows the tab for a table-top unit as an example for all appliance sizes.
Layout of the 'Gas' tab
Functions in the 'Gas' tab
Burner
Convection 1 / Convection 2 / Boiler
Item Name Function
1 min burner speed
(300 rpm)
Minimum speed of burner
2 max burner speed
(8000 rpm)
Maximum speed of burner
3
Flame µA Current consumption of ionization electrode
4 rpm
(300 - 8000)
Actual speed
5
Status Current status
6
Burner error message Current fault message
