3 Appliance construction / modules
Training manual Convotherm 4 26

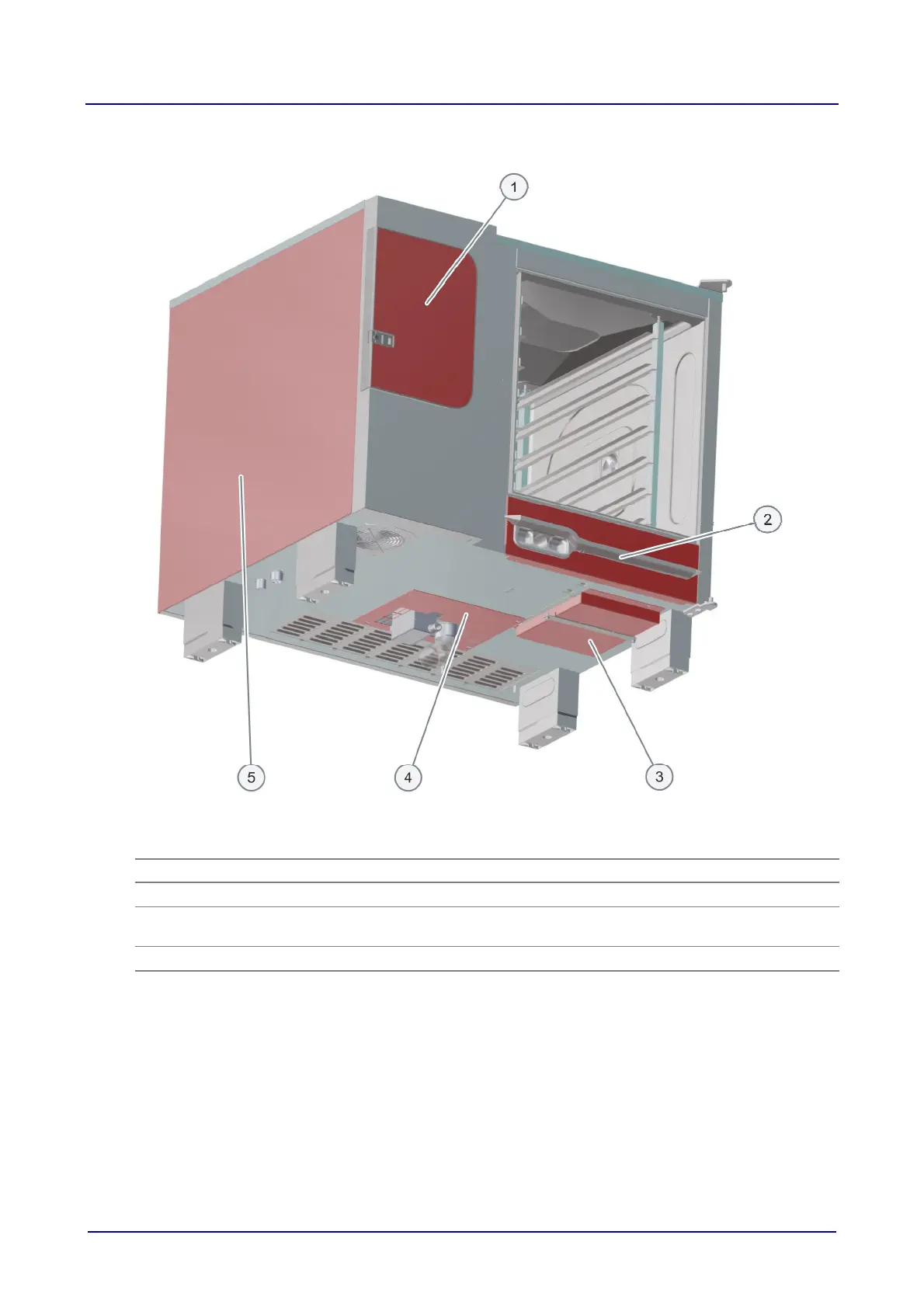

3.1 Service hatches
Service
access
hole
Name Access to ...
1
Operating electronics UI board / SI board / fuses / safety thermostats
2
Appliance drip tray Pump area (cleaning-agent dispensing pump)
3
Floor hatch
Pump area
(circulation pump / drainage pump for CS chamber)
4
Floor hatch Drain box
5
Left side panel Wiring compartment
