Welbilt Convotherm 4 - Water Circuit

4 Operating principles
Training manual Convotherm 4 43

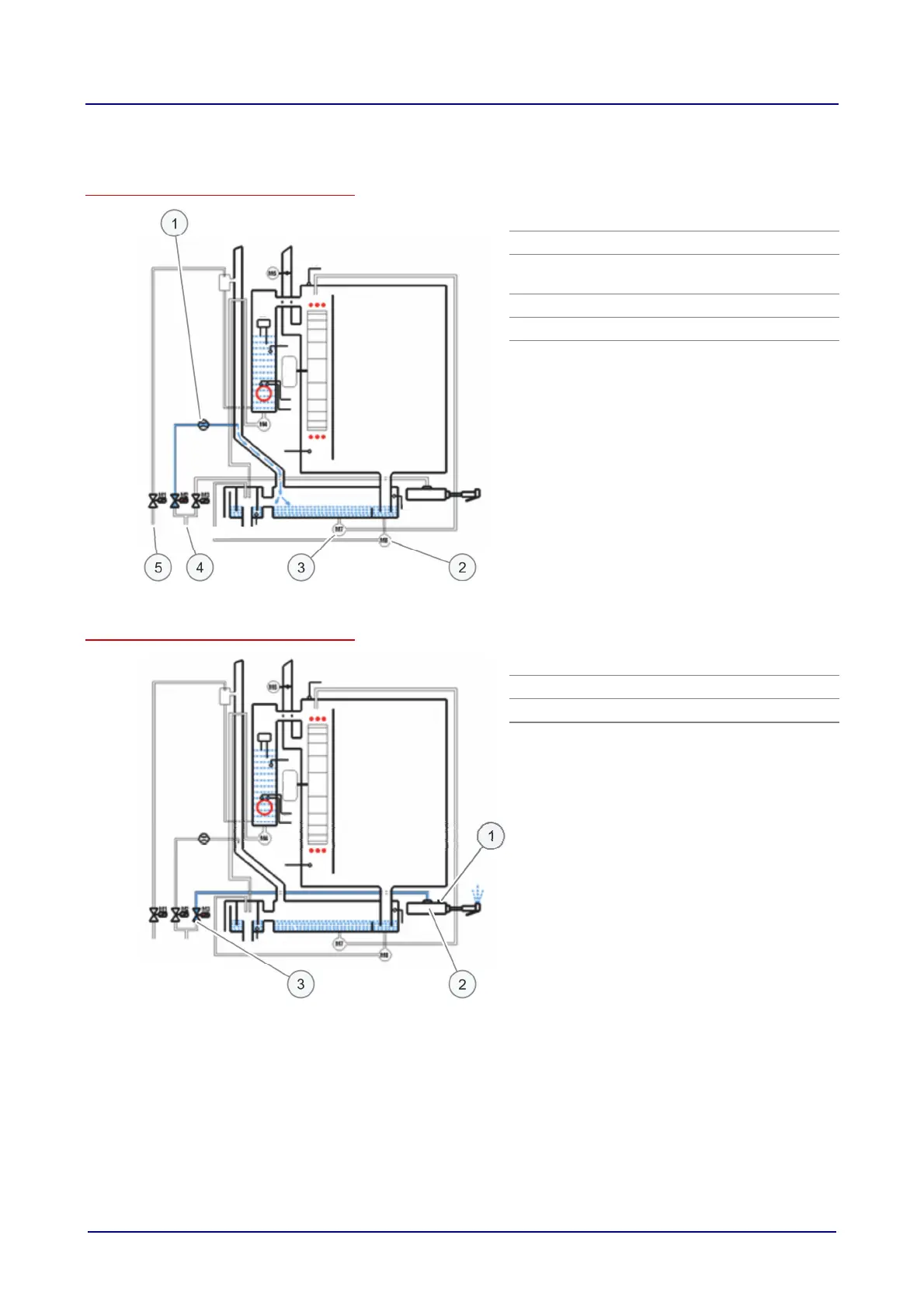

4.4 Water circuit
Filling the collector box
Item Name
1
Flowmeter (water saving device)
2 CS-chamber drainage pump
(Drains the collection box)
3
Circulation pump (cleaning)
4
Dual solenoid valve
5
Single solenoid valve
Recoil hand shower
Item Name
1
Micro-switch
2
Recoil hand shower
3 Recoil hand-shower solenoid valve (switch-
es off recoil hand shower when shower in
coiled position)
