7.3 System Interface Board (SI board)

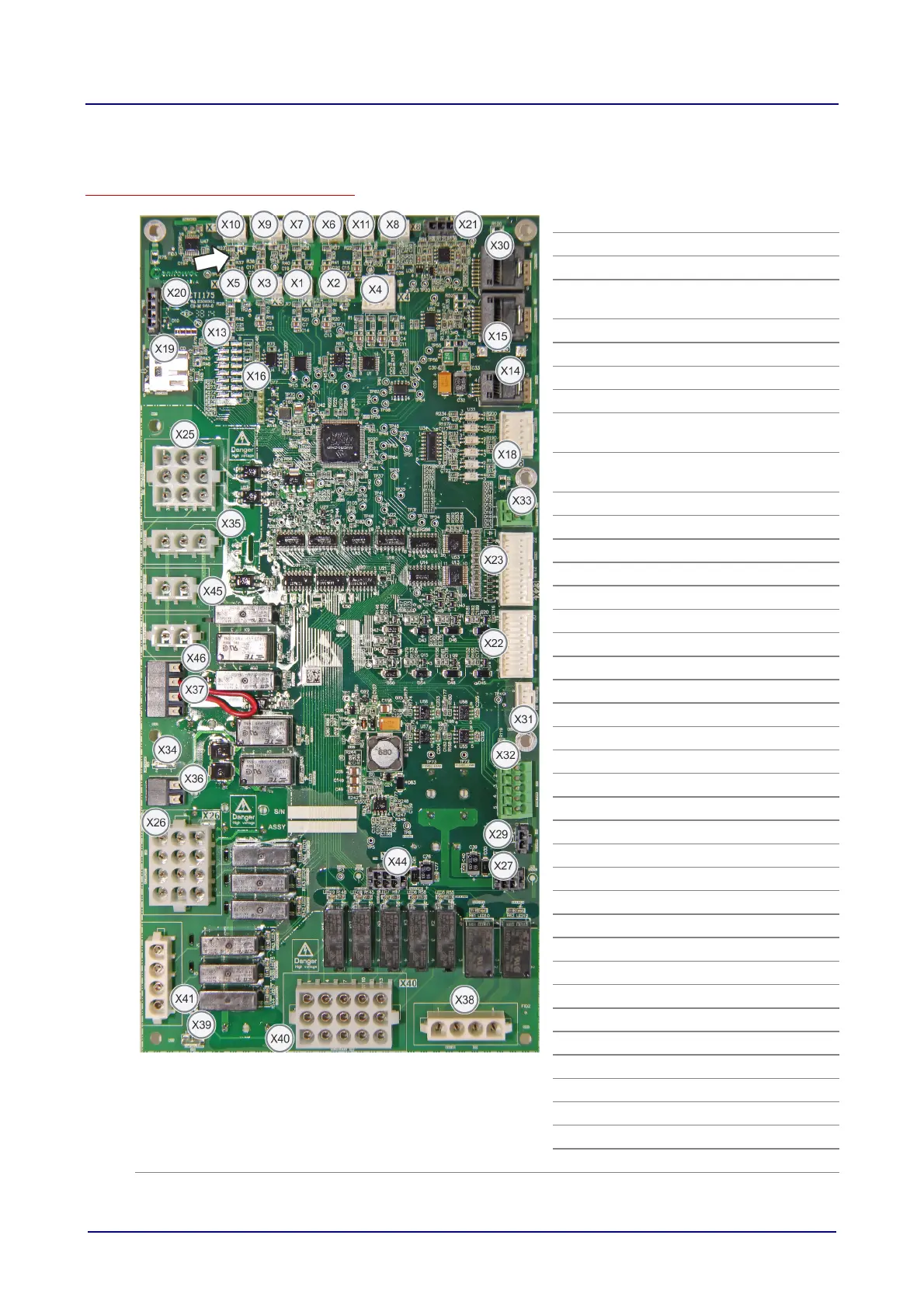

Layout and components on the front side of the SI board
Item Name
X1
Oven sensor
X2
Sous-vide sensor
X3 Temperature of heatsink for cook-
ing-chamber heating element
X4
Core temperature probe
X5
Spare
X6
Drain probe
X7
Bypass sensor
X8 Temperature of heatsink for boiler
heating element
X9 Safety thermostat
Boiler
X10
Boiler sensor
X11
Spare temperature
X13
DEBUG
X14
C-BUS
X15
Variable frequency drive 1
X16
DEBUG interface
X18
Burner control unit
X19
SD card
X20
Identification module (IDM)
X21
Water level in boiler
X22
Digital outputs
X23
Digital inputs
X25
Main contactor
X26
AC relay
X27
Power supply
X29
Door opener
X30
Variable frequency drive 2
X31
Spare outputs for low voltage
X32
Signal tower
X33
Water treatment
X34
AC phase input
X35
Appliance ON/OFF switch
X36
Smoker
X37
Sicotronic
X38
Extraction hood
X39
AC Neutral 2 input
X40
AC relay
X41
Spare relay (outputs)
X44
Power supply
