Welbilt Convotherm 4 - Bottom Frame

3 Appliance construction / modules
Training manual Convotherm 4 27

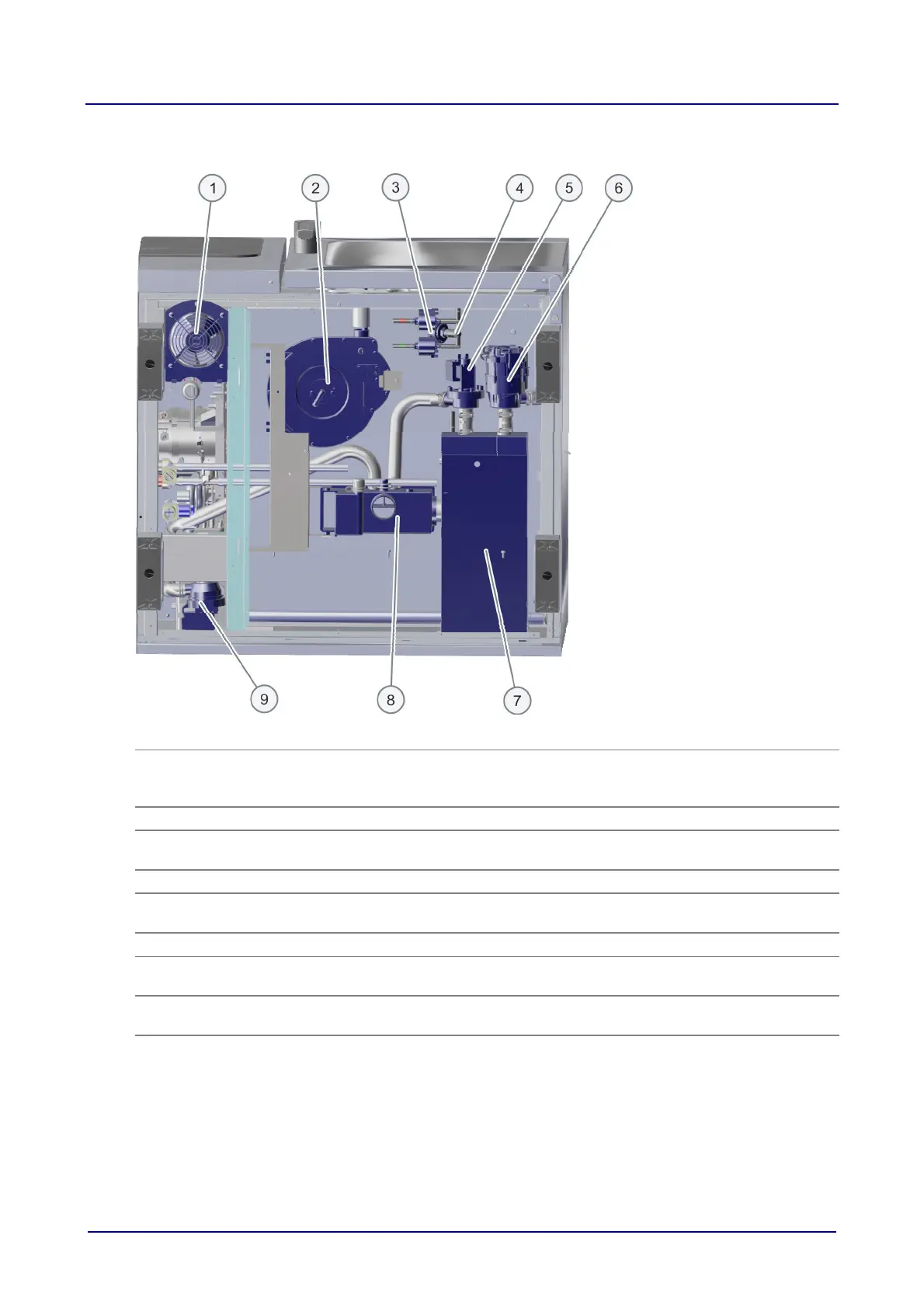

3.2 Bottom frame
Item Name Function
1
Fan
Cools the wiring compartment.
Please note: the outside of the fan grille (filter) should be cleaned
annually with a soft cloth.
2
Recoil hand shower Extensible shower with automatic recoil
3 Cleaning-fluid dispensing
pumps
Dispense the chemicals in the collector.
4
Cleaning-fluid pressure switch Monitors the cleaning-fluid dispensing pressure.
5
CS-chamber drainage pump
Opens the system and drains the Advanced Closed System area in the
collector.
6
Circulation pump Circulates the cleaning solution.
7
Collector
Collects condensate and water from the cooking chamber and closes the
system.
8
Drain box
Discharges the cooled used water and the cleaning solution; overflow
function.
9
Boiler drainage pump Drains the boiler.
