3 Appliance construction / modules
Training manual Convotherm 4 30

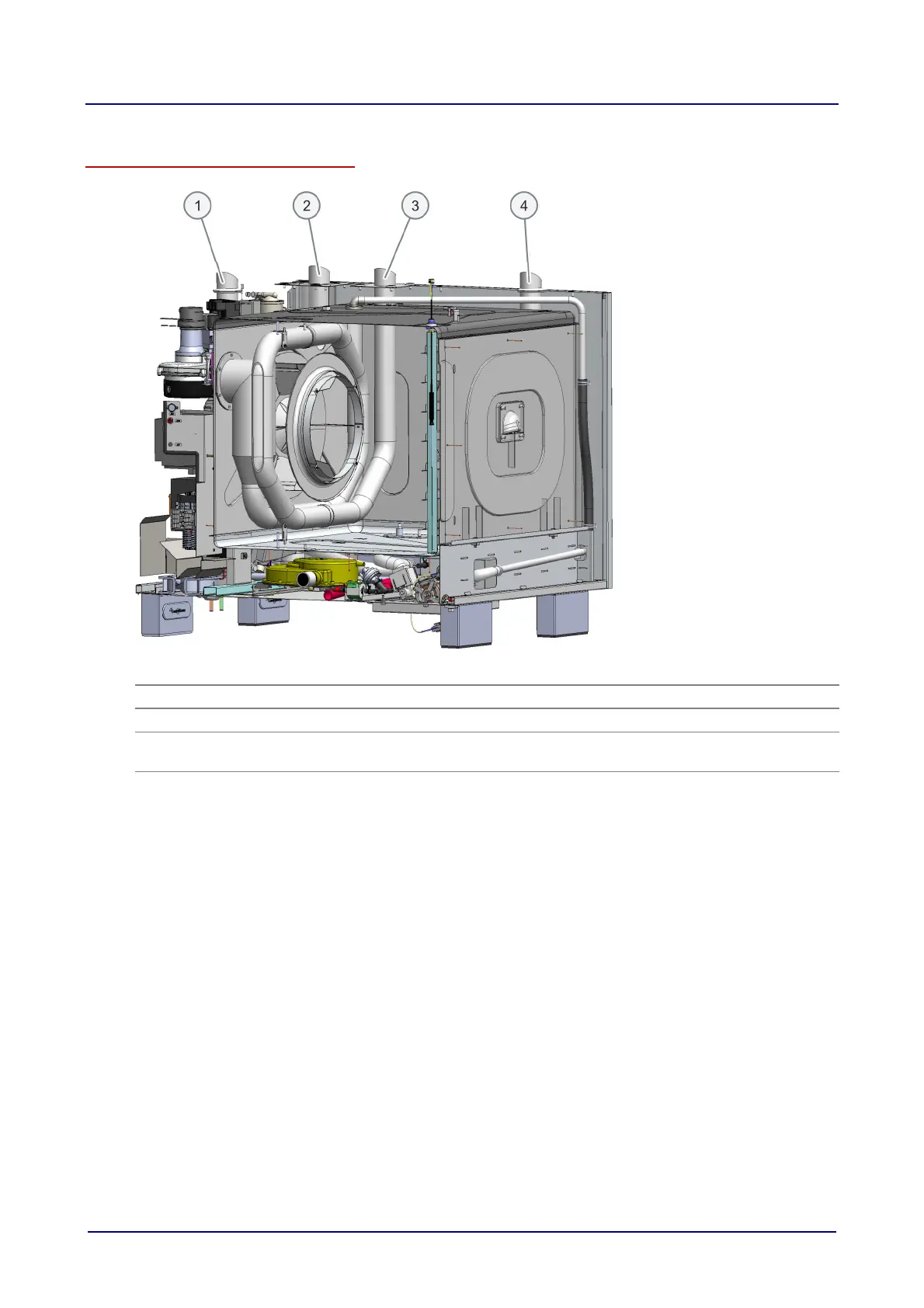

Ventilation and exhaust gas system
Item Name Function
1
Air intake for Crisp&Tasty Draws fresh air into the cooking chamber.
2
Boiler exhaust outlet Outlet for exhaust gases
3 Exhaust outlet for convection
burner
Outlet for exhaust gases
4
Vent for collector box Outlet for moisture removal
Please note: The apertures on the top of the appliance must never be blocked or closed off.
