3 Appliance construction / modules
Training manual Convotherm 4 31

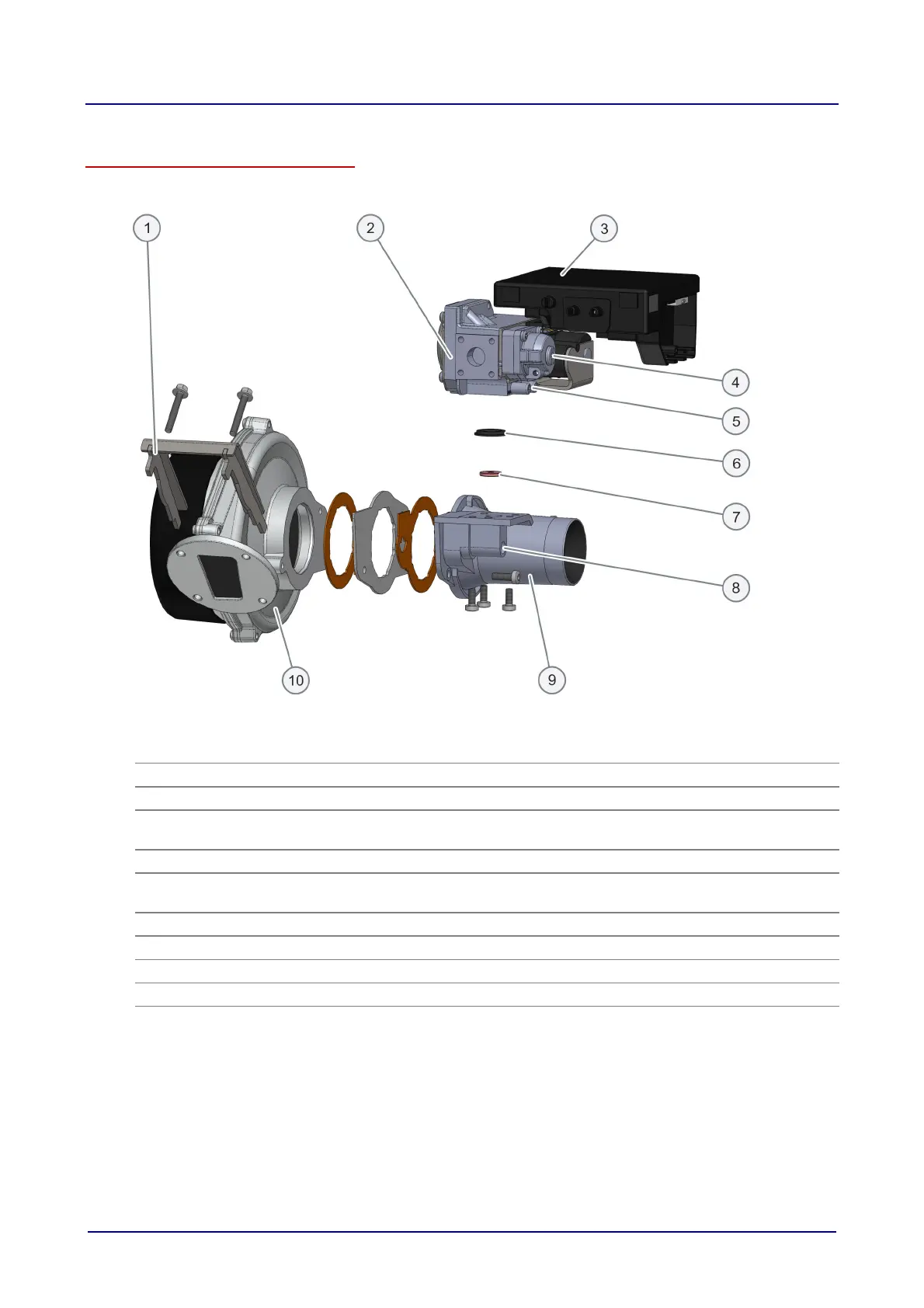

Boiler burner
Item Name Function
1
Quick-release mechanism For releasing the burner easily
2
Gas valve Regulates and disconnects the gas supply
3 Digital automatic burner
control unit
Generates the ignition voltage and monitors the flame
4
Setscrew Pressure control valve (remove cap first)
5 Input/output measurement
pipe
For measuring the input/output pressure
6
Seal for gas orifice plate
7
Gas orifice plate "Reducer orifice" for controlling the gas flow rate
8
Setscrew for air flow rate Air adjustment
9
Venturi Mixes gas and air.
10
Burner fan Forces the gas/air mixture into the combustion chamber
Please note: after assembling or fitting gas components, always check that the system is gas-tight.
