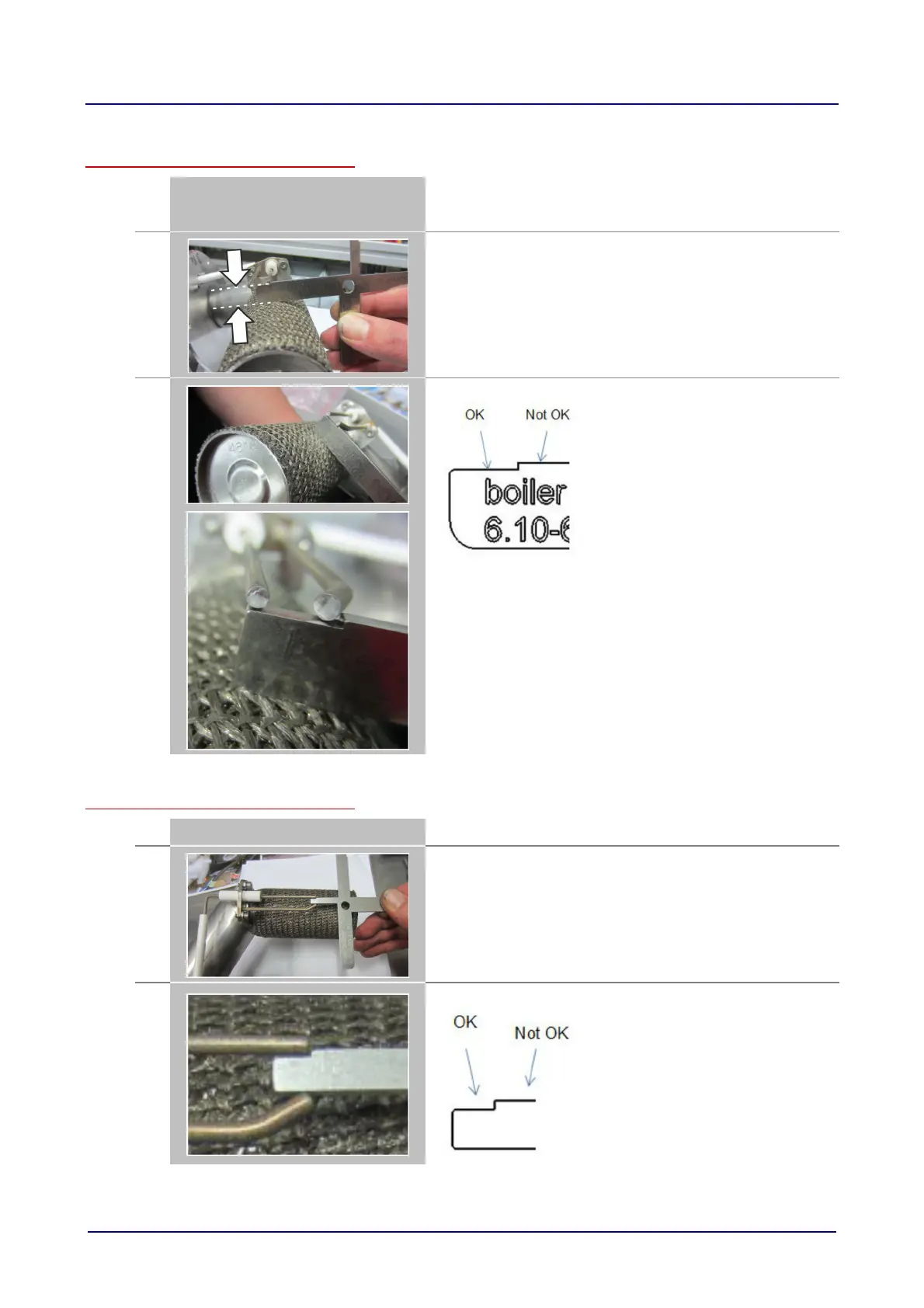

Gap between ignition electrode and burner mantle
1.
Select the correct gauge arm for the particular appliance burner
mantle
(arm 1, 2 or 3)
2.
Place the gas gauge P4 in the position shown in the illustration.
3.
Check whether the gap lies in the OK range of the gas gauge.
Gap between ignition electrode and monitoring electrode
1.
Select the gauge arm for the monitoring electrode (arm 4).
2.
Place the gas gauge P4 in the position shown in the illustration.
3.
Check whether the gap lies in the OK range of the gas gauge.
