4 Operating principles
Training manual Convotherm 4 56

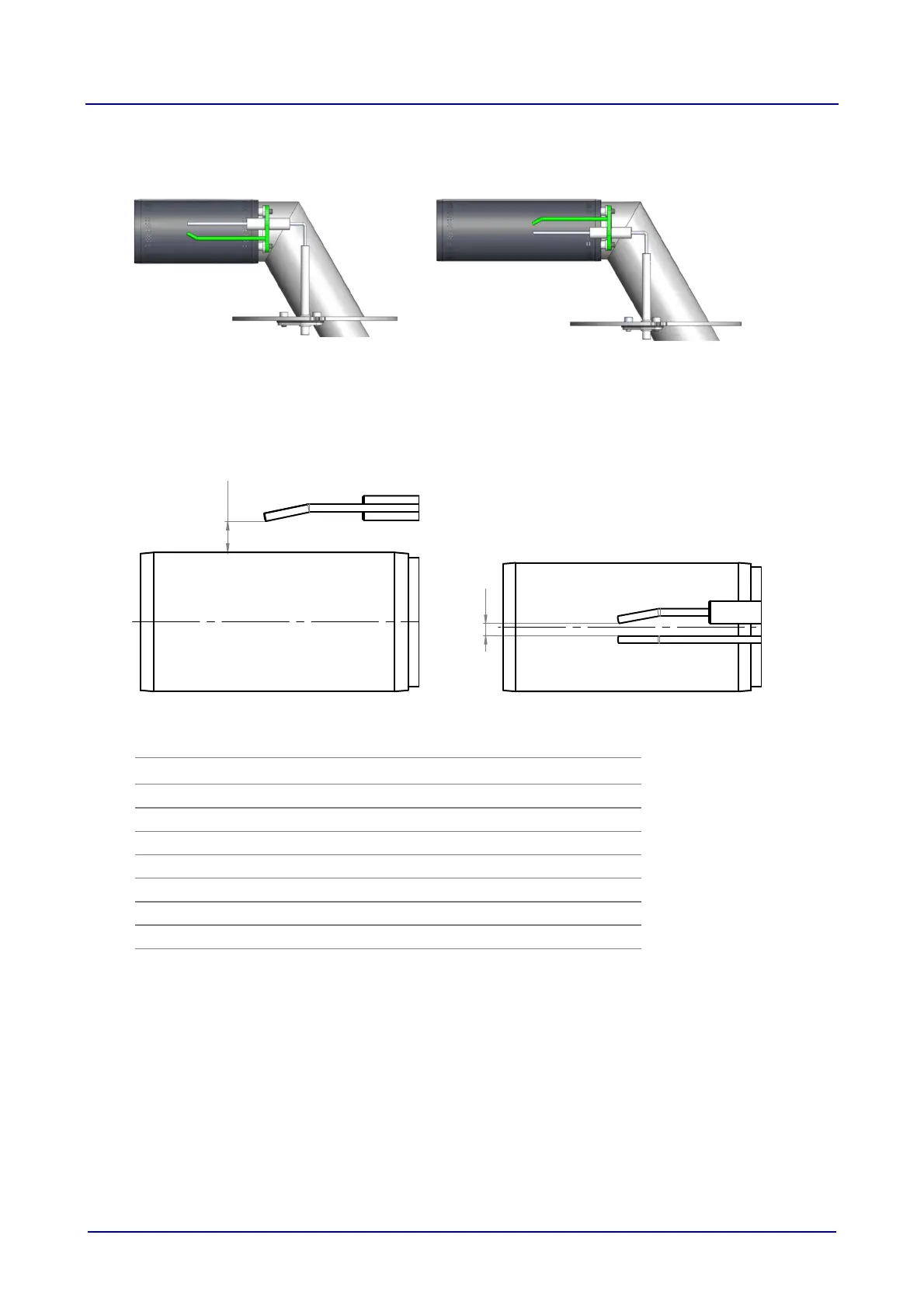

Small burner Large burner
A
B
Dimension A Dimension B
Appliance size Convection Boiler
6.10 10.5 mm 11.8 mm 5 mm
6.20 10.5 mm 11.8 mm 5 mm
10.10 10.5 mm 11.8 mm 5 mm
10.20 10.5 mm 13.2 mm 5 mm
12.20 10.5 mm 13.2 mm 5 mm
20.10 10.5 mm 13.2 mm 5 mm
20.20 10.5 mm 13.2 mm 5 mm
