14
Construction and Features
704 67 020 00 _ 111
GF Robimat XL / XM
OPERATING INSTRUCTIONS

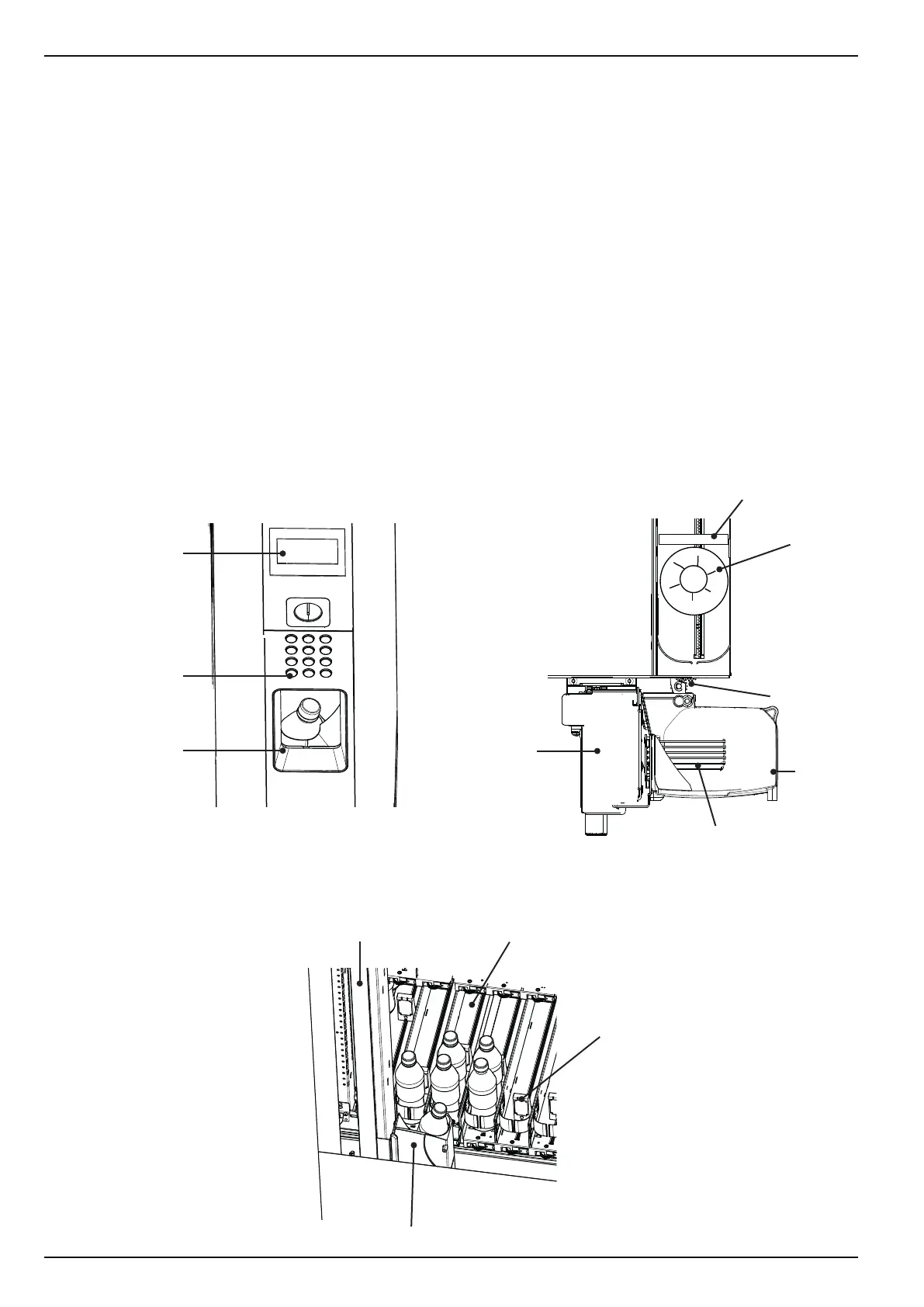

The vending process is as follows:
1. The customer selects product; the compartment number is read; money is inserted.
2. Compartment number is entered (selection keypad).
3. The basket is moved by the lift system to the compartment.
4. The motor moves the conveyor belt, the product is transported.
5. Product pushes down the product retainer.
6. The product "moves" into the product basket; the light grid is activated.
7. The gear is activated.
8. Basket is moved to transfer position; the shutter door is pushed open.
9. The product delivery door opens. Customer can take the product.
10. The change is deposited in the coin return.
11. Delivery door closes, basket moves back to its home position bottom left.
Slider
Basket
Container
Delivery unit
shutter
Refund button
Display
Gear
Bottle
Slider
Basket
Light grid
Lift system
Lift system
