Westomatic GF Robimat XM - 3.4 Kickplate

17
Installation and commissioning
704 67 020 00 _ 111
OPERATING INSTRUCTIONSGF Robimat XL / XM

Only when the machine is free-standing:

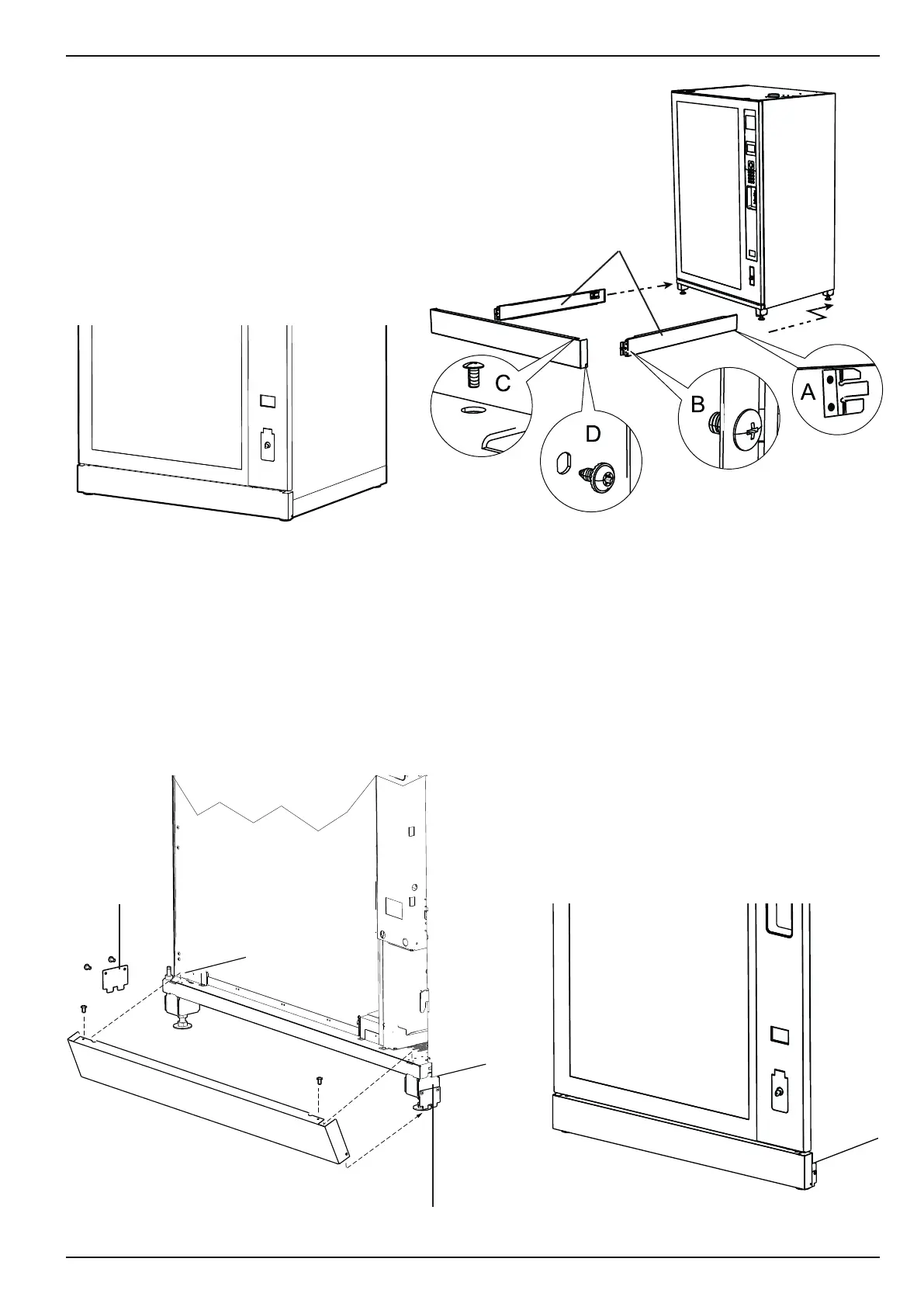

• hook the (optional) side kickplates into the rear feet (A) and x them
with the securing screws (B).
• t the front kickplate from the top and secure (C).
• nally secure them with screws on the sides (D).
If only a frontkick plate is tted:
• Mount xing plate using 2 screws onto the machine feet
• Fit the front panels from underneath and mount them in the xing plates
• Press the panel on, and with the door open secure with two screws
optional
Fixing plate
Fixing plate
