Installation and commissioning
704 67 020 00 _ 111
GF Robimat XL / XM
OPERATING INSTRUCTIONS
• The machine is delivered ready for connection, with cable and shock-proof plug for a
single-phase AC supply of 230 V/50 Hz. It must be plugged into a properly installed socket
with earth connection.
• Do not use extension cables and multiple sockets!
• The circuit must be fuse-protected by an B16A safety cut-out.
• A permanent installation should only be carried out by a qualied electrician.
• The plug must be easily accessible after installation.

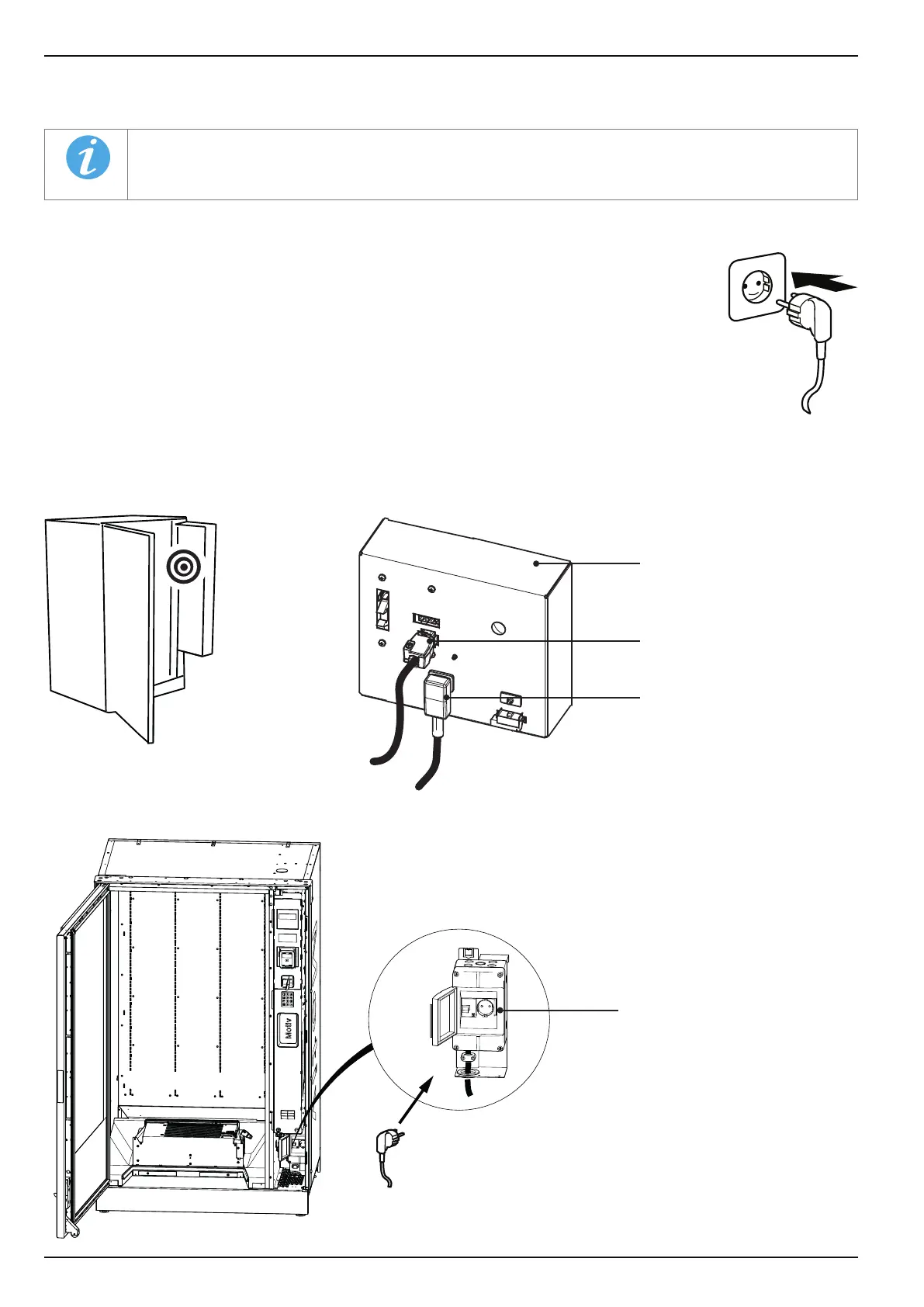

Mains supply plug
Chiller unit plug
Power supply
The mains plug is not connected when the machine is delivered. To supply the machine with power, connect the mains
plug to the power supply unit.
The mains plug should be connected only after the transportation locks have been removed.
Switch box
Regularly activate the F1-safety cut out
switch by hand (test)
