Installation and commissioning
704 67 020 00 _ 111
OPERATING INSTRUCTIONSGF Robimat XL / XM

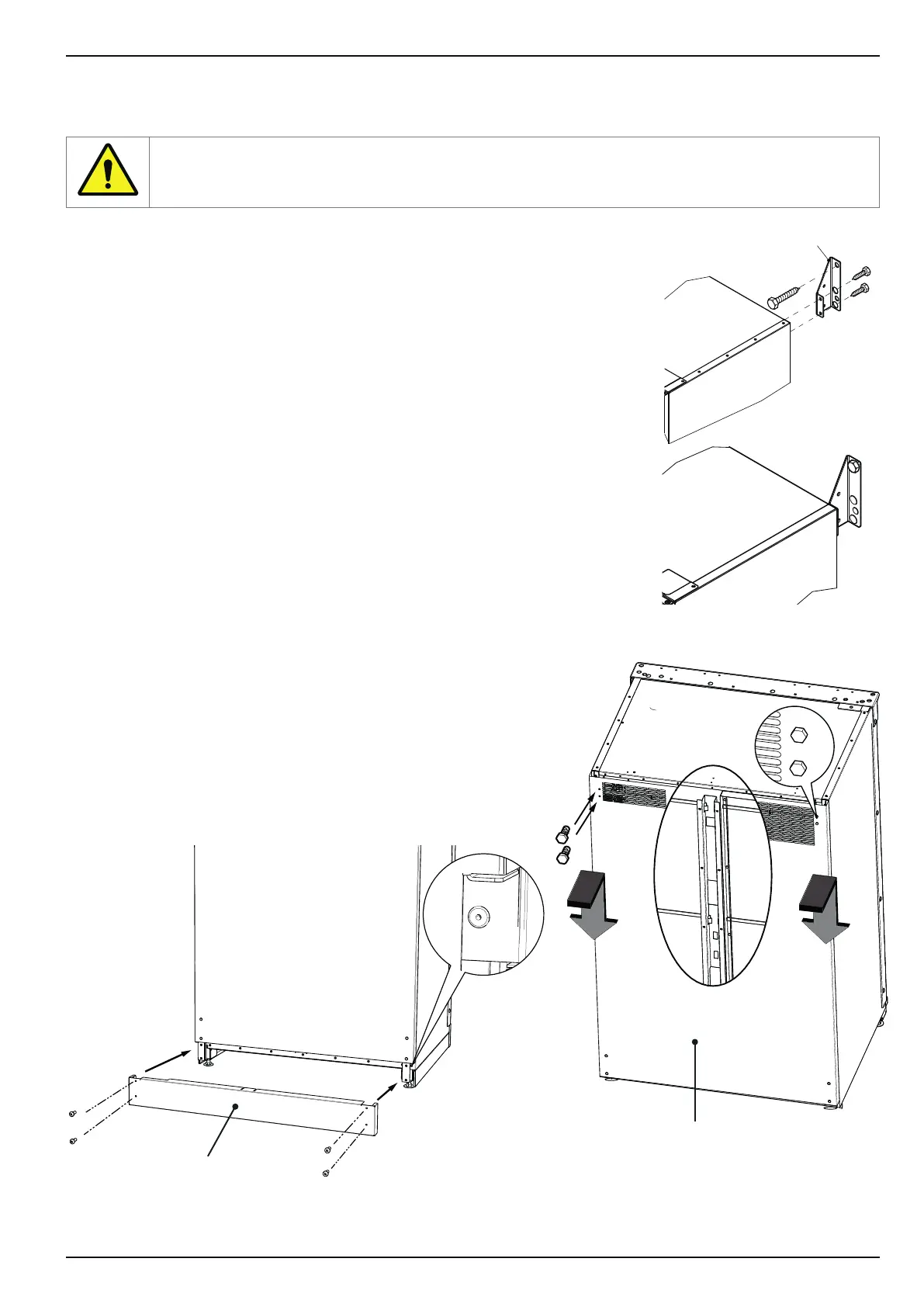

A rear advertising panel (optional) can be tted on free-standing
machines. It oers additional advertising space for stickers or posters.
The rear advertising panel is mounted from the top and secured with
screws.
At the bottom, the kick plate is attached and secured with screws.
M10
Rear advertising panel
Kickplate
2x
How to proceed
The wall brackets supplied must be used to x the machine to the wall. They must
be fastened to the machine using the screws provided. Use appropriate screws and
dowels for the wall.
In order to ensure proper and reliable operation, the machine must stand upright.
The vending machine must be installed at a distance of 5 cm from the wall in order
to ensure adequate air circulation.
Fix vending machines to the wall or oor:
