Westomatic GF Robimat XM - 3.10.2 Electrical Connection - Coin Mechanism to Vending Machine

24
Installation and commissioning
704 67 020 00 _ 111
GF Robimat XL / XM
OPERATING INSTRUCTIONS

Depending on the type of coin mechanism di󰀨erent adapters, cables or junction boxes to the connector may be
required:
Kit for Executive: 704 01 558 00
Kit for BDV: 310 02 530 00
MDB
connection

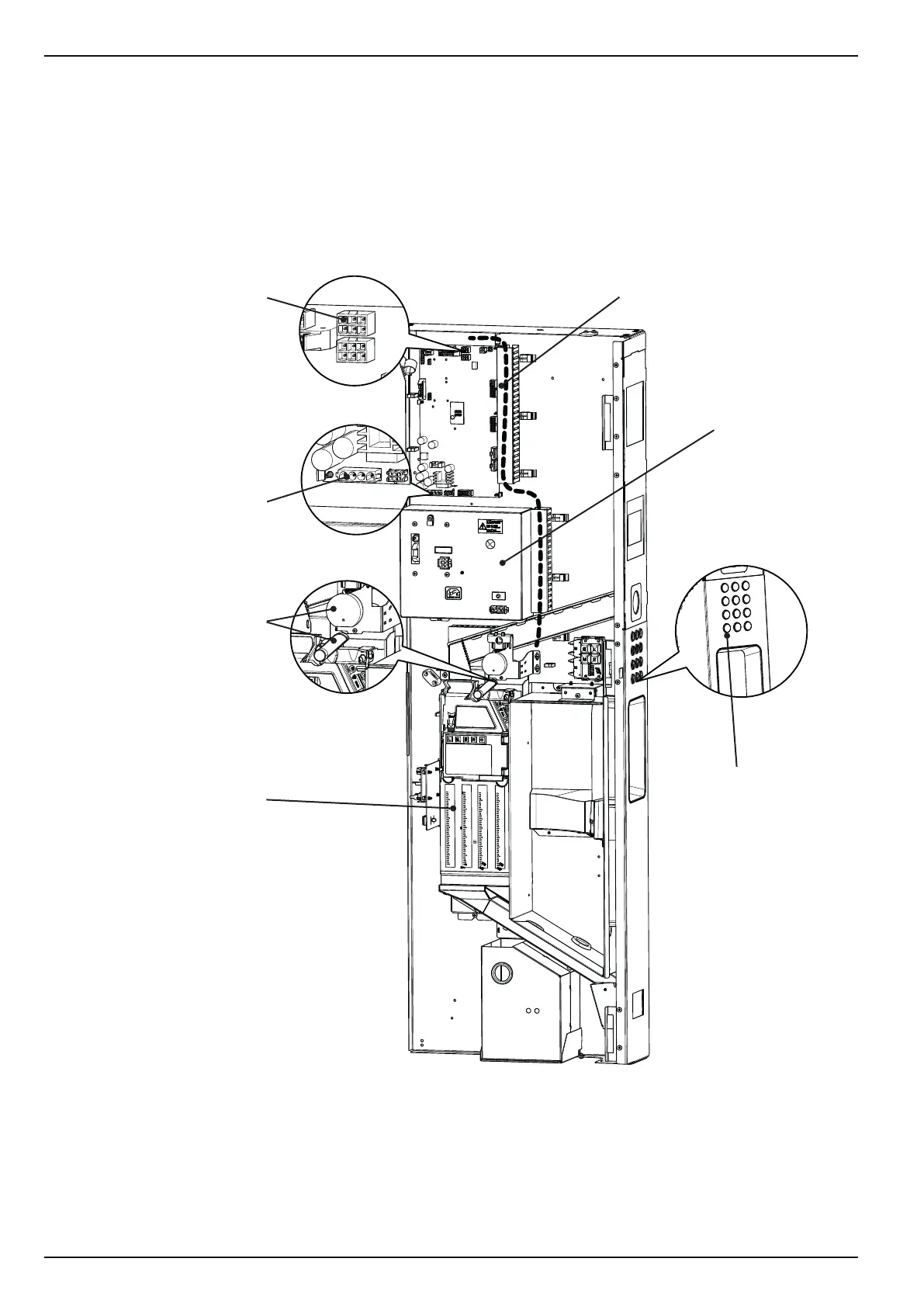

Input voltage supply M32
control board
(alternating current voltage)
Coin refund motor
release lever
R- Return button;
return motor test
Power
supply
Coin mechanism tted
The coin mechanism connectors are plugged into the appropriate sockets on the control board, adapter or junction
boxes. Pay attention to the contacts and ensure that cables are properly positioned.
Cable correctly laid; cable duct
