Westomatic GF Robimat XM - 6.4.3 [COOLING PROGR.] M2

42
Machine control board, Software
704 67 020 00 _ 111
GF Robimat XL / XM
OPERATING INSTRUCTIONS

M
2
E
E L
E L
E L
E L
E L
E
L
E L
E L
E L
E L
E L
E L

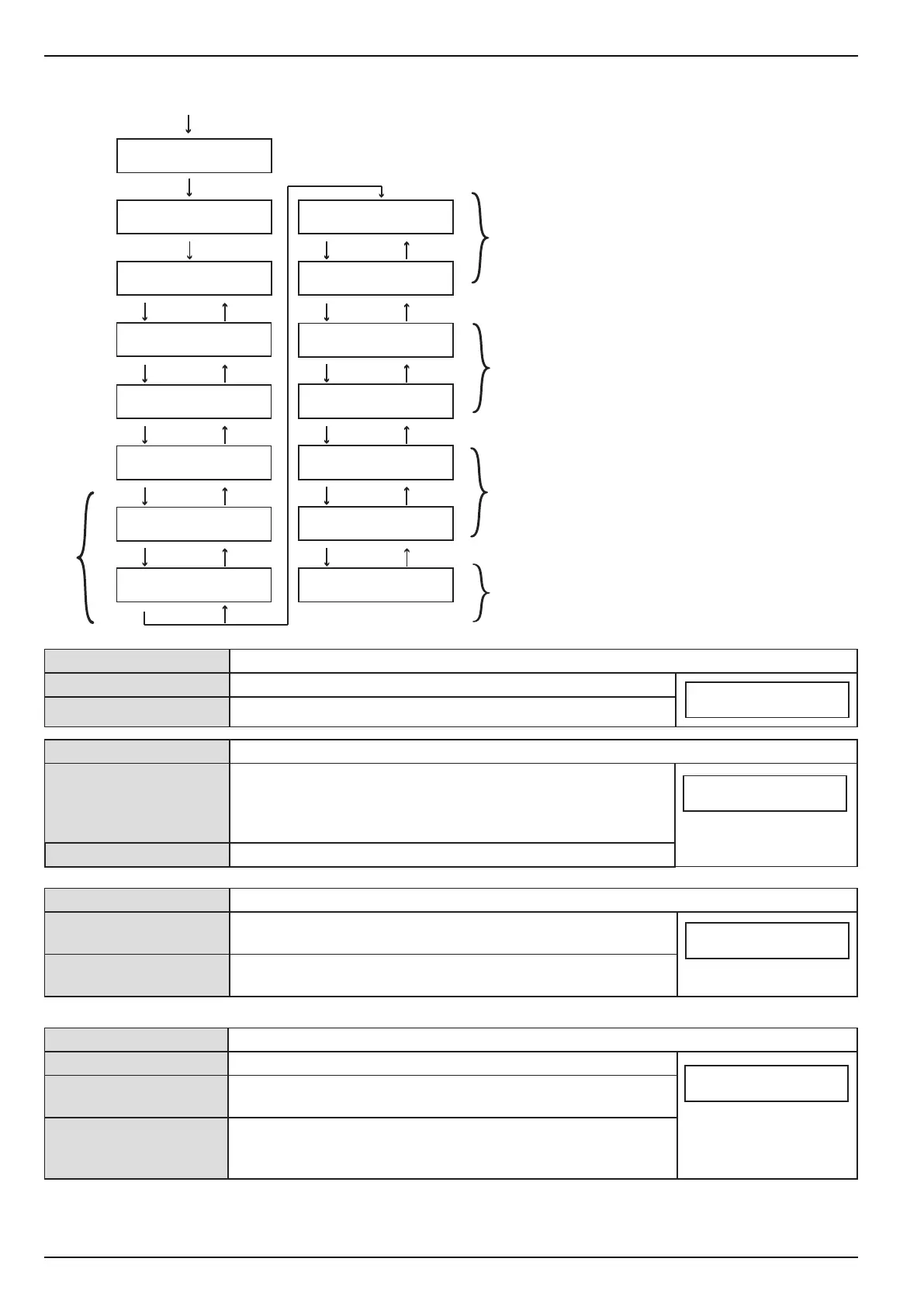

CHECK
←L SEL. M→ :E
COOLING PROGR.
←L SEL. M→ :E
yes=1, no=0
EL. COOLING ? 1
yes=1, no=0
AUTO SET? 0
TEMP.COOLING 1
NORM. 7C PLU.11C
TEMP.COOLING 1
NORM. 7C PLU.11C
TEMP.COOLING 2
NORM. 8C PLU.12C
TEMP.COOLING 2
NORM. 8C PLU.12C
COOLING
FROM TU TO SA
COOLING
FROM TU TO SA
COOLING
FROM 06.30
COOLING
FROM 06.30
COOLING
to 23.30
COOLING
to 23.30
TEMP1/COMP./DUR.
9°C ■ 43%
Only side-pack
[EL. COOLING ?]
1 (default) with electronically controlled cooling
yes=1, no=0
EL. COOLING ? 1
yes=1, no=0
AUTO SET? 0
TEMP.COOLING 1
NORM. 7C PLU.11C
TEMP1/COMP./DUR.
11°C ■ 43%
0 without electronically controlled cooling (with thermostat)
from ... to weekday
Time from ... hour/minute
Time up to... hour/minute
Overview: current temp.; compressor on or o󰀨;
power-on time of compressor since last time the door
was opened
[AUTO SET?]
1 (default) electronically controlled chilling with the following xed basic
settings: Chilling temperature 8 °C, increased temperature 8
°C
These settings cannot be altered.
yes=1, no=0
EL. COOLING ? 1
yes=1, no=0
AUTO SET? 0
TEMP.COOLING 1
NORM. 7C PLU.11C
TEMP1/COMP./DUR.
11°C ■ 43%
0 electronically controlled chilling with adjustable temperatures
[TEMP.COOLING 1] [TEMP.COOLING 2] refers to a Side pack
[NORM.] Enter the desired chilling temperature using the numerical
keys.
yes=1, no=0
EL. COOLING ? 1
yes=1, no=0
AUTO SET? 0
TEMP.COOLING 1
NORM. 7C PLU.11C
TEMP1/COMP./DUR.
11°C ■ 43%
[PLU.] Increased temperature indicates what temperature is held
outside the cooling time.
[TEMP1/ STAT/ DUR.] STAT = STATUS; [DUR.] =duration (compressor run time)
[TEMP1] 11 °C current temperature in the chilling cabinet
yes=1, no=0
EL. COOLING ? 1
yes=1, no=0
AUTO SET? 0
TEMP.COOLING 1
NORM. 7C PLU.11C
TEMP1/COMP./DUR.
11°C ■ 43%
[STAT] □ : → empty square, chiller o󰀨;
■ : → full square, chiller on
[DUR.] 86 % : duty cycle of compressor since last switched on (Reset):
Explanation: 99 % is an indication that the compressor has
been on permanently. In everyday operation that is an error.
