Installation and commissioning
704 67 020 00 _ 111
GF Robimat XL / XM
OPERATING INSTRUCTIONS
The vending machine must be levelled, and it is essential that the following criteria is adhered to:
• Horizontal, stable position.
• Correct height adjustment if part of a vending machine station.
• The machine door can be opened and closed without it dragging.
• When the machine door is closed, the door contact switch is correctly closed by the actuator!
How to proceed
1. Place the machine in its designated location.
2. Lift the machine if a pallet truck is available.
3. Screw the four feet out evenly. The distance between the oor and the lower edge of the side wall must be
approx. 9 cm.
4. Remove the pallet truck.
5. Check if the machine rocks over the axis B - C, when the corner F2 is pressed. If it rocks, screw in foot B until it
stops.
6. Check if the machine rocks over the axis A - D when the corner F1 is pressed down. If it rocks, screw in foot A until
it stops.
7. Place the spirit level on the rear wall and level by adjusting foot A.
8. Check if the machine rocks over the axis B - C, when the corner F2 is pressed. If it rocks, screw in foot B until it
stops.
9. Place the spirit level on the side wall and level by adjusting foot C.

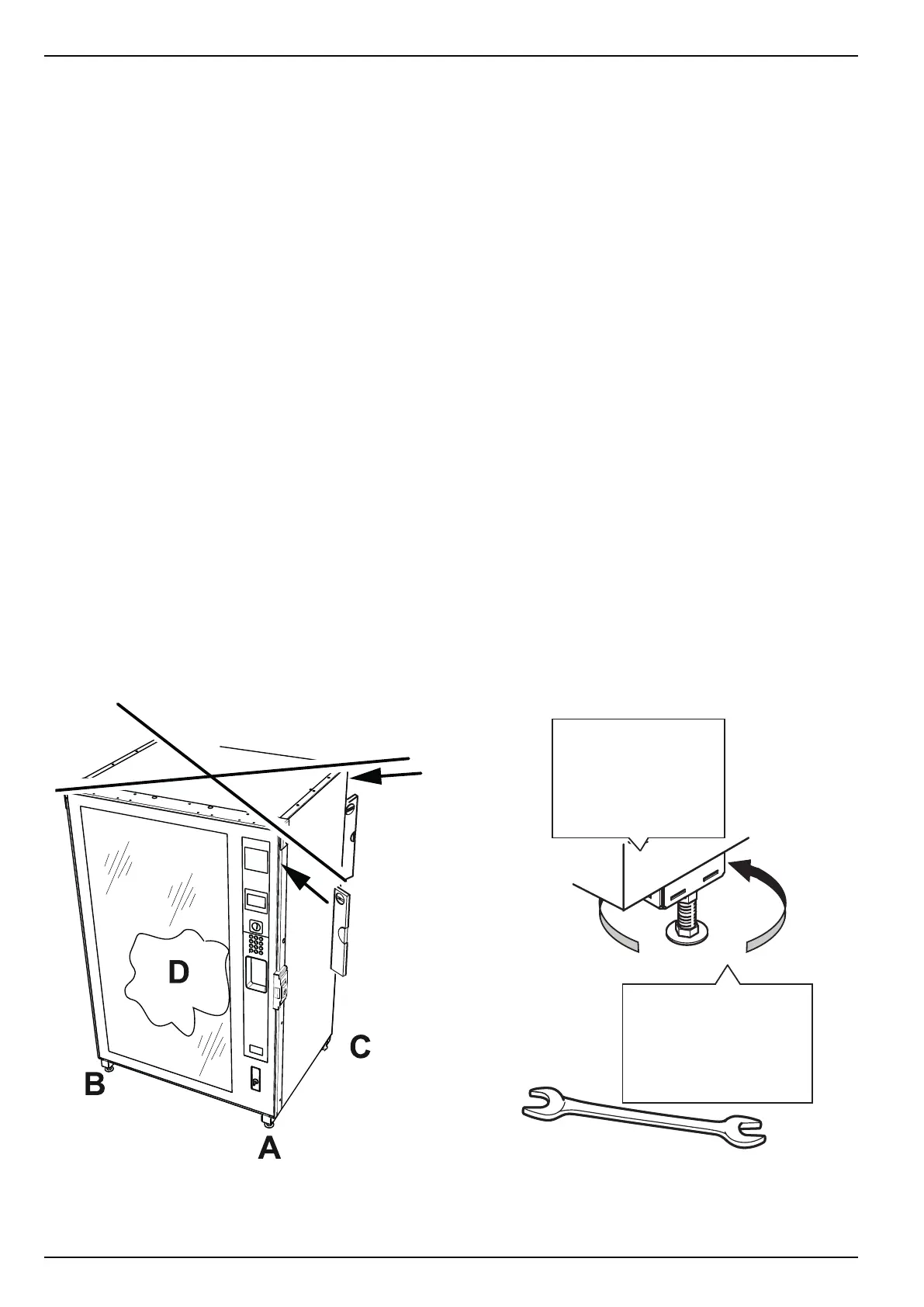

A
M 24
Unscrew the
adjustable foot;
becomes longer;
greater load
Screw in the
adjustable foot;
becomes shorter;
less load
F1
F2
Axis B - C
Axis A - D
