Installation and commissioning
704 67 020 00 _ 111
OPERATING INSTRUCTIONSGF Robimat XL / XM
The machine is prepared to operate with a coin
mechanism.
As there are many dierent coin mechanisms, the
appropriate adapter set for the connection to the
control board must be available when installing.
The machine software must also be set accordingly.

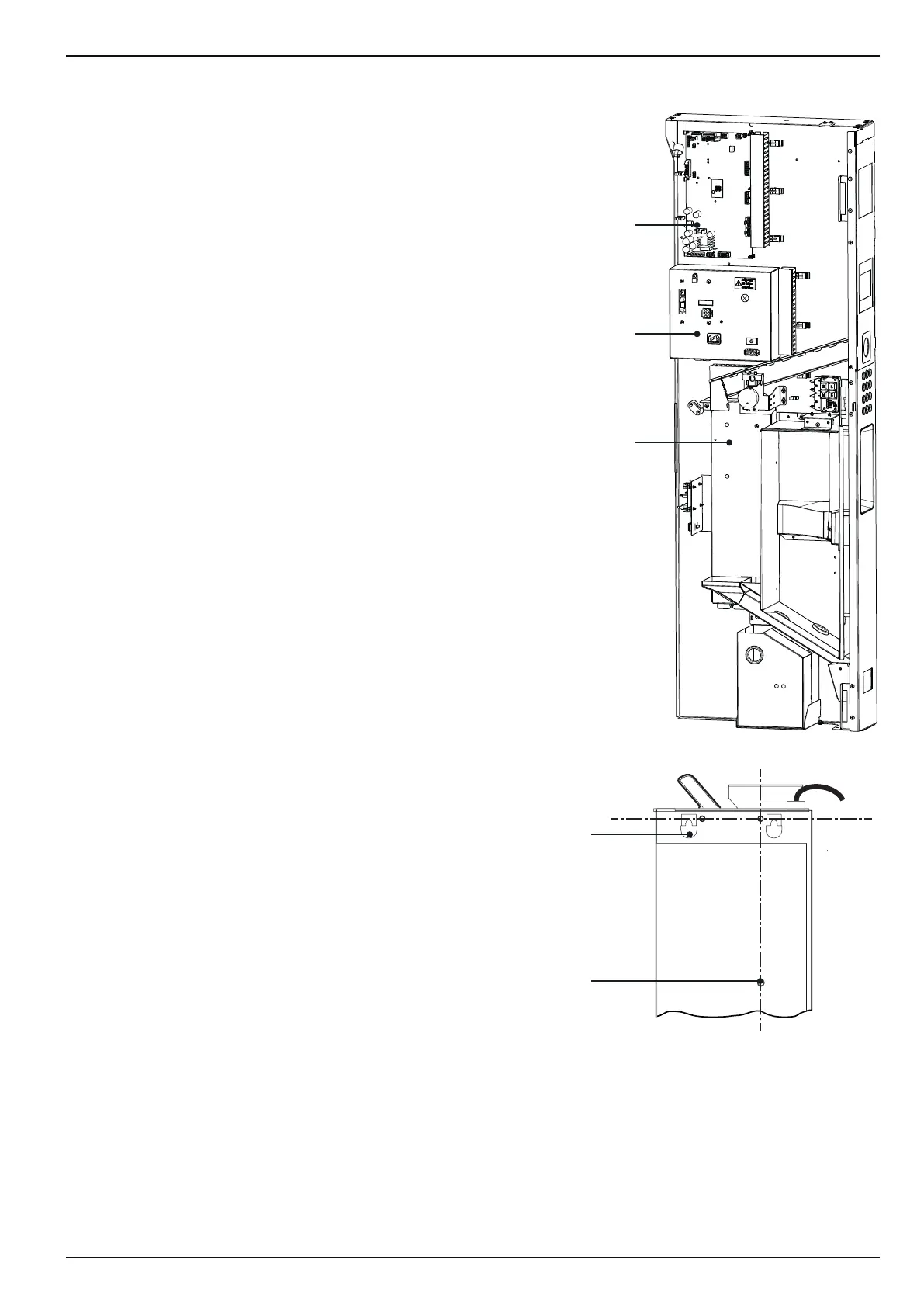

Coin mechanism
Power supply
M32 control board
Before mounting the coin mechanism, please
read the operating instructions supplied by the
manufacturer. The installation instructions must be
adhered to.
Fit the coin mechanism into its allocated position by
hooking it into the xing eyes.
Some coin mechanisms are secured by a screw to
prevent them from becoming unhooked.
Securing screw
Fixing eyes
