Windhager FireWIN - Firewin Without Heating Fittings; Firewin - UAM

19
2. For the Installer
2.7.2 FireWIN without heating fittings
Note!
When using the FIRE 025 and 026 covering screens, all connections must be positioned under the
exhaust pipe because the covering screens are fully closed above the exhaust pipe.

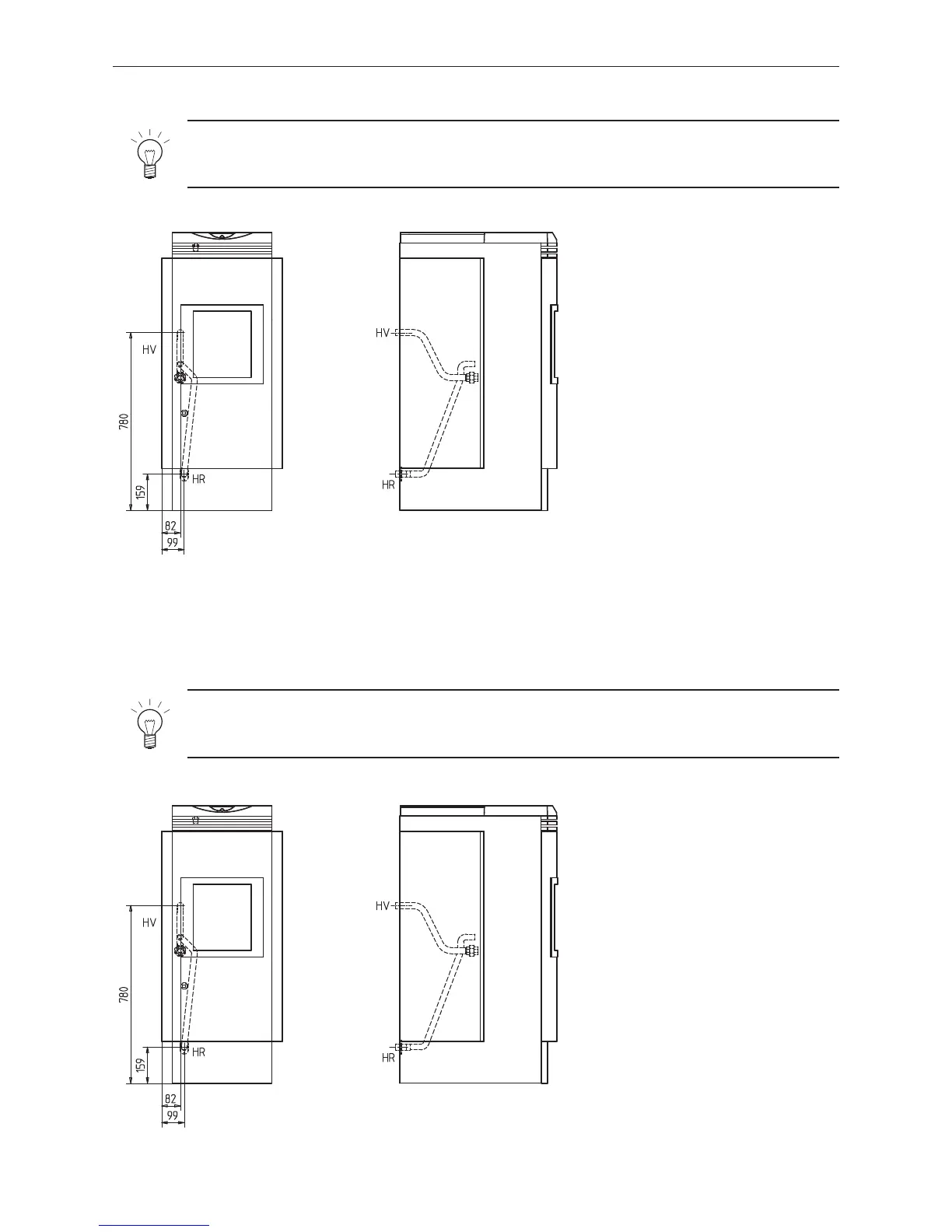

Fig. 12 FireWIN without heating fittings
All dimensions in mm:
HV.......Heating feed (3/4” pipe)
HR.......Heating return (3/4” pipe)
Front view Side view
2.7.3 FireWIN – UAM
with energy-saving circulation pump, expansion tank 12 l, motorised mixing valve, safety valve and pressure
gauge
Note!
When using the FIRE 025 and 026 covering screens, all connections must be positioned under the
exhaust pipe because the covering screens are fully closed above the exhaust pipe.
Fig. 13 FireWIN UAM
All dimensions in mm:
HV.......Heating feed (3/4” sleeve)
HR.......Heating return (3/4” pipe)
Front view Side view
