2. For the Installer
2.7.4 FireWIN – UAML
with energy-saving circulation pump, hot water tank feed pump with gravity brake, expansion tank 12 l, moto-
rised mixing valve, safety valve, pressure gauge and non-return valve for heating circuit
Note!
When using the FIRE 025 and 026 covering screens, all connections must be positioned under the
exhaust pipe because the covering screens are fully closed above the exhaust pipe.

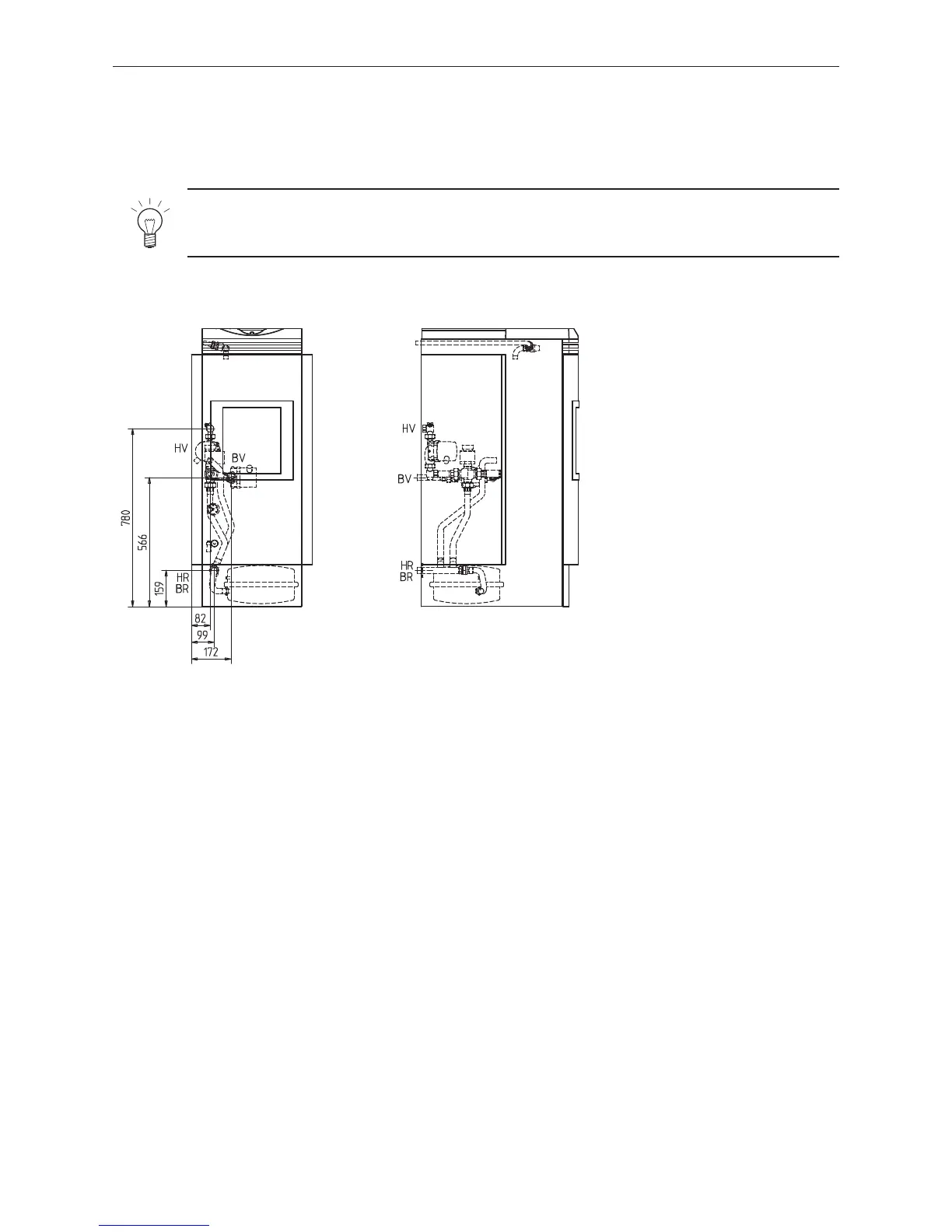

Fig. 14 FireWIN UAML
All dimensions in mm:
HV ........Heating feed (3/4” sleeve)
HR .......Heating return (3/4” pipe)
BV ........Boiler feed (3/4” pipe)
BR........Boiler return (3/4” pipe)
Front view Side view
