Windhager FireWIN - Mounting Plate for Non-Flammable Steel Tubes Within the Area of the Exhaust Pipe

29
2. For the Installer
2.13 Mounting plate for non-flammable steel tubes within
the area of the exhaust pipe
That the steel tubes of the supply do not rest against the exhaust pipe, the enclosed mounting plate can be ins-
talled in the back at the rear wall between steel tubes and exhaust pipe – Fig. 39.
– Screw both hinges of the “cladding door” (part 8) onto the left side panel using – Fig. 35.
– Check the setting of the door safety switch; close the door, the door safety switch must be operated about
2 –3 mm before the door magnet closes (audible clicking of the switch); adjust the actuation play with the
screw if necessary – Fig. 36.

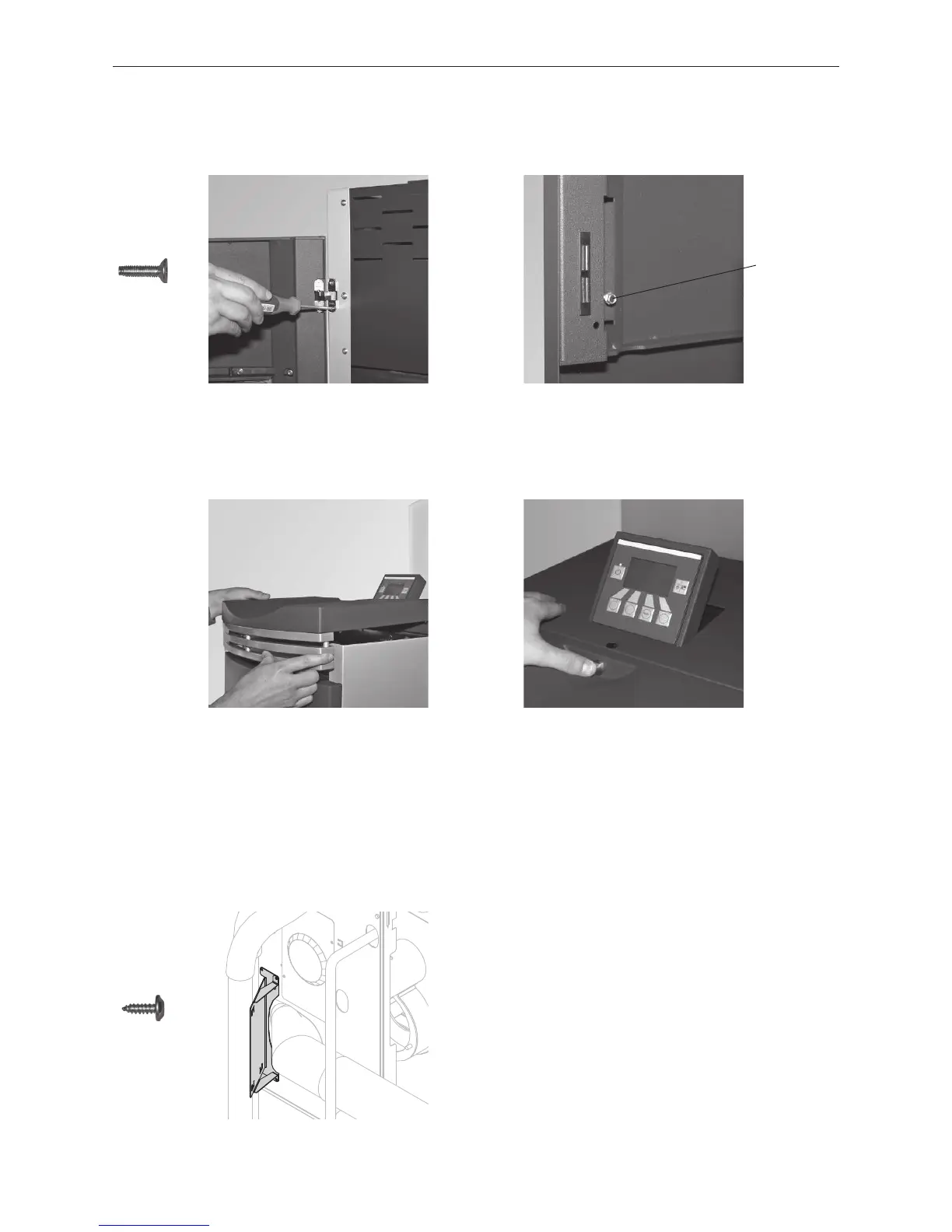

Fig. 35 Inserting the hinges in the side
panel
Fig. 36 Checking the setting of the door
safety switch
2 x
Screw door
safety switch
– Place the “front cover” (part 4) onto the side wall with its pins in the holes provided on the side panel – Fig.37.
– Press the button (Fig. 38), it must be easy to open the glass cover, align the front cover if necessary.
Fig. 37 Putting on the front cover Fig. 38 Checking the button moves easily
4 x
Fig. 39 Mounting plate for supply steel tubes
