2. For the Installer
2.16 Initial start-up and operating instructions
Windhager Customer Service or the customer service partner will start up the boiler first of all, and will familia-
rize the customer with the system operation and cleaning of the boiler, with reference to the Operating Manual.
The following preconditions must be met before you order the initial start-up:
1.) Boiler installed correctly.
2.) System fully wired up electrically.
3.) System rinsed, filled and vented – heat consumption must be possible.
4.) Boiler connected to domestic water and filled.
5.) Sufficient quantity of fuel available (pellets, split logs, oil or gas).
6.) The customer must be present during start-up.
The initial start-up cannot be carried out if any of these points is neglected. The customer will be charged for
any unnecessary costs arising as a result.
Start-up and maintenance by WIindhager Customer Service or a customer service partner are part of the
guarantee requirements of the enclosed “guarantee limitations”.
2.15 Installing cover plates
Installation sequence:
– Separate the required feed-throughs for the exhaust pipe, feed and return, transport hoses, etc. from the
prepunched cover plates.
– Every other hexagon screw (5) at the rear on each side panel should not be screwed all the way to the stop
(1.5 mm gap).
– Hook both side cover plates (2 and 3) in at these screws and fix onto one another using 2 pcs. plastic rivets(4).
– Put on the to cover plate (1) and secure with 2 pcs. plastic rivets (4).

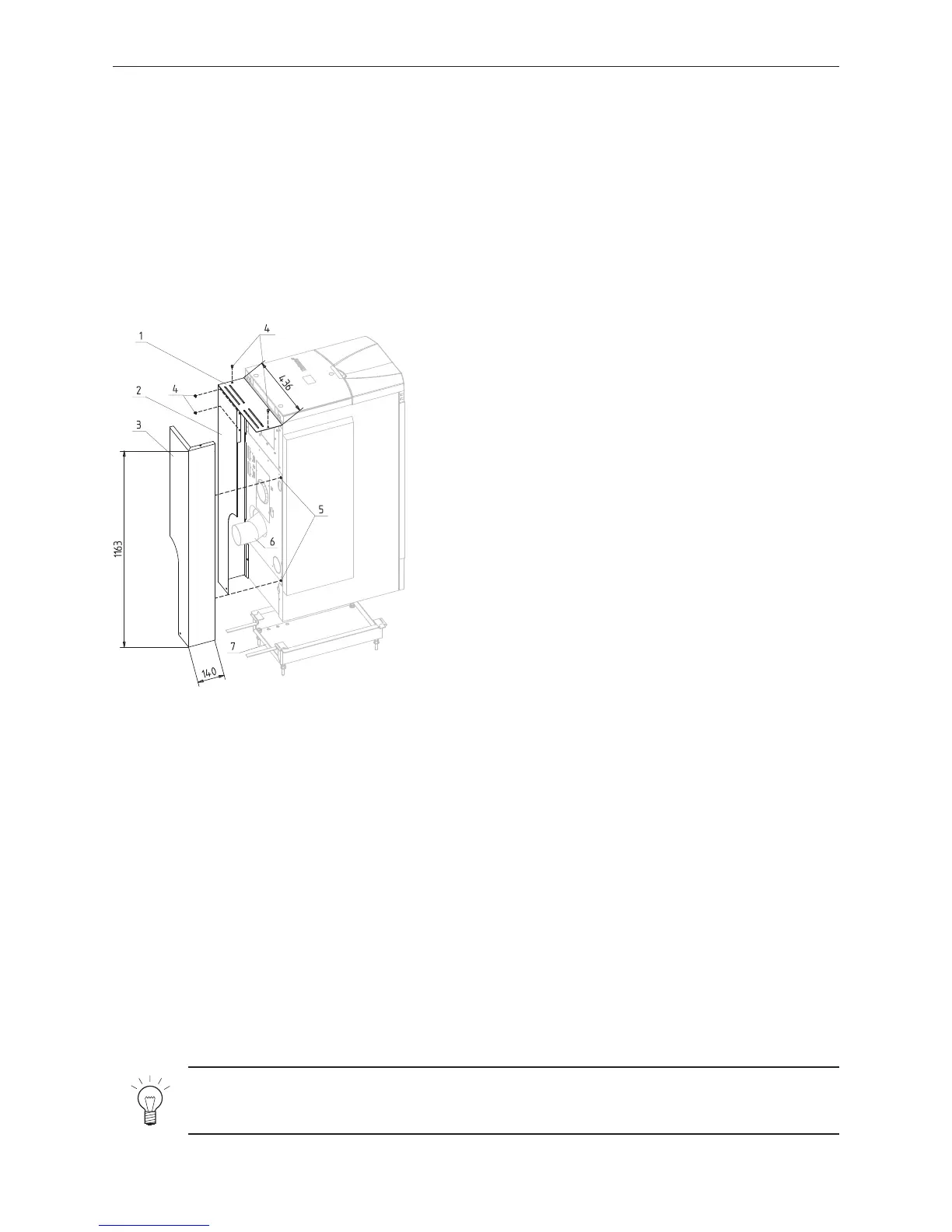

Fig. 41 Installing the cover plates
Cover plate FIRE 025 or FIRE 026
comprising:
1 ...........Top cover plate
2 ...........Right cover plate
3 ...........Left cover plate
4 ...........4 pcs. plastic rivets
5 ...........4 pcs. hexagon screws M5 x 12 TT
Other illustrated accessories acc. to price list:
6 ...........Double exhaust pipe bend rigid – AZB 057, for
FireWIN exhaust pipe connection in the middle
7 ...........Mounting pedestal – FIRE 022, for pre-mounting
FireWIN without finished floor screed
Note!
During the first few weeks after start-up, condensation can occur in the combustion chamber, ash
pan and on the heating surfaces. This has no effect on the function and service life of the boiler.
