2. For the Installer
2.7.5 Suction turbine
Note!
The hose connection to the changeover unit can be turned through 180° to the other side.
B
C
B
C

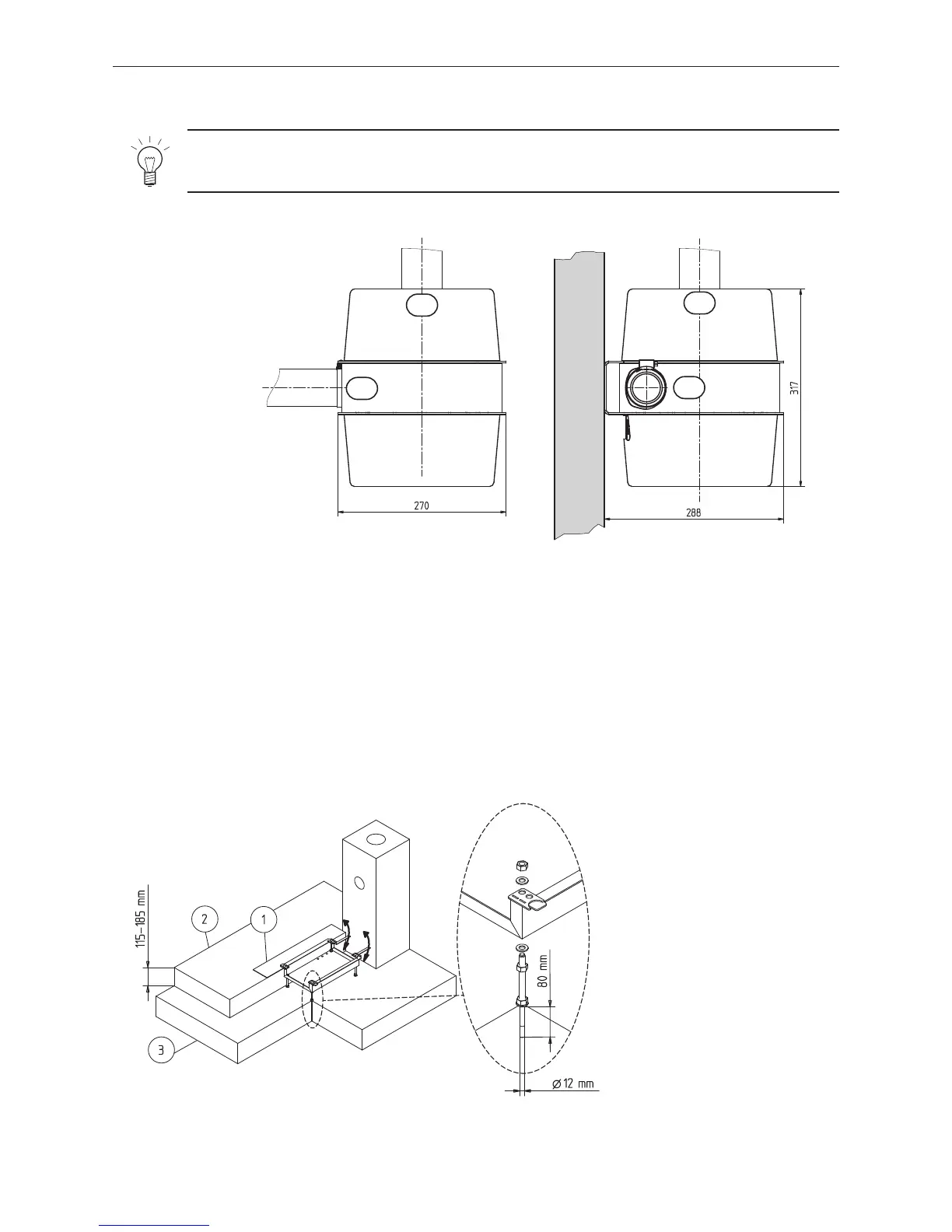

Fig. 15 Suction turbine
All dimensions in mm: Front view Side view
Connection to
pellet flue-connected boiler
Connection to
changeover unit
2.7.6 Mounting base – FIRE 022
for initial installation of FireWIN without finished floor screed
Fig. 16 FireWIN mounting base
All dimensions in mm:
1 ...........Sheet steel floor plate with recess for mounting base (FIRE 033 or FIRE 034)
2 ...........Floor structure with lining
3 ...........Concrete ceiling – provided by customer
