Windhager FireWIN - Storage Room and Feed System in Living Area or Basement

23
2. For the Installer
2.8.2 Storage room and feed system in living area or basement
With this routing variant, the temperature difference between the boiler installation room and the pellet storage
room containing the suction turbine and changeover unit must never exceed 15°C. Large temperature differen-
ces will cause condensation to form inside the hoses.
Attention!
The configuration of the entire system must comply with technical fire protection requirements in
accordance with the applicable regulations, standards and guidelines.
B
C
A C
B
A
3x
1
3
5
6
7
8

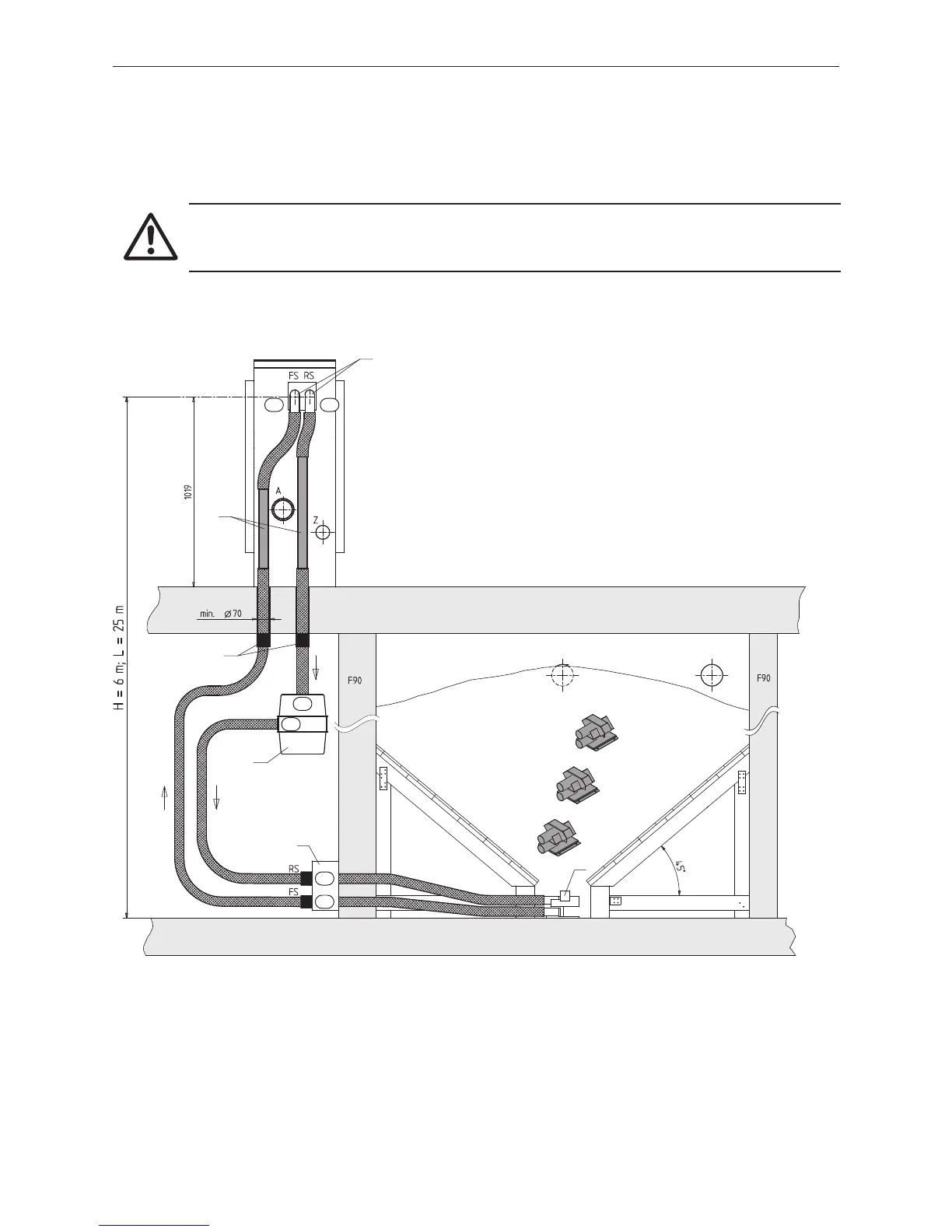

Fig. 18 FireWIN with automatic pellet feed from a storage room inside the heated living area – View from rear
1 ...........Standard hose connection downwards
3 ...........Metal pipes for delivery and return air straight – accessory: FIRE 044
5 ...........Fire protection collars incl. masonry attachment – accessory: BIO 010
6 ...........Suction turbine
7 ...........Fully automated changeover unit – in accessory: BIO 020
8 ...........Suction wands in storage room – in accessory: BIO 020
FS ........Transport hose
RS ........Reverse air flow hose
A ..........Exhaust pipe
Z ..........Air supply connection
H .......... Maximum transport height in metres
L .......... Maximum hose length in metres
