Windhager FireWIN - Connecting Diagram for Air Intake;Exhaust Flap

51
4. For the Service Technician

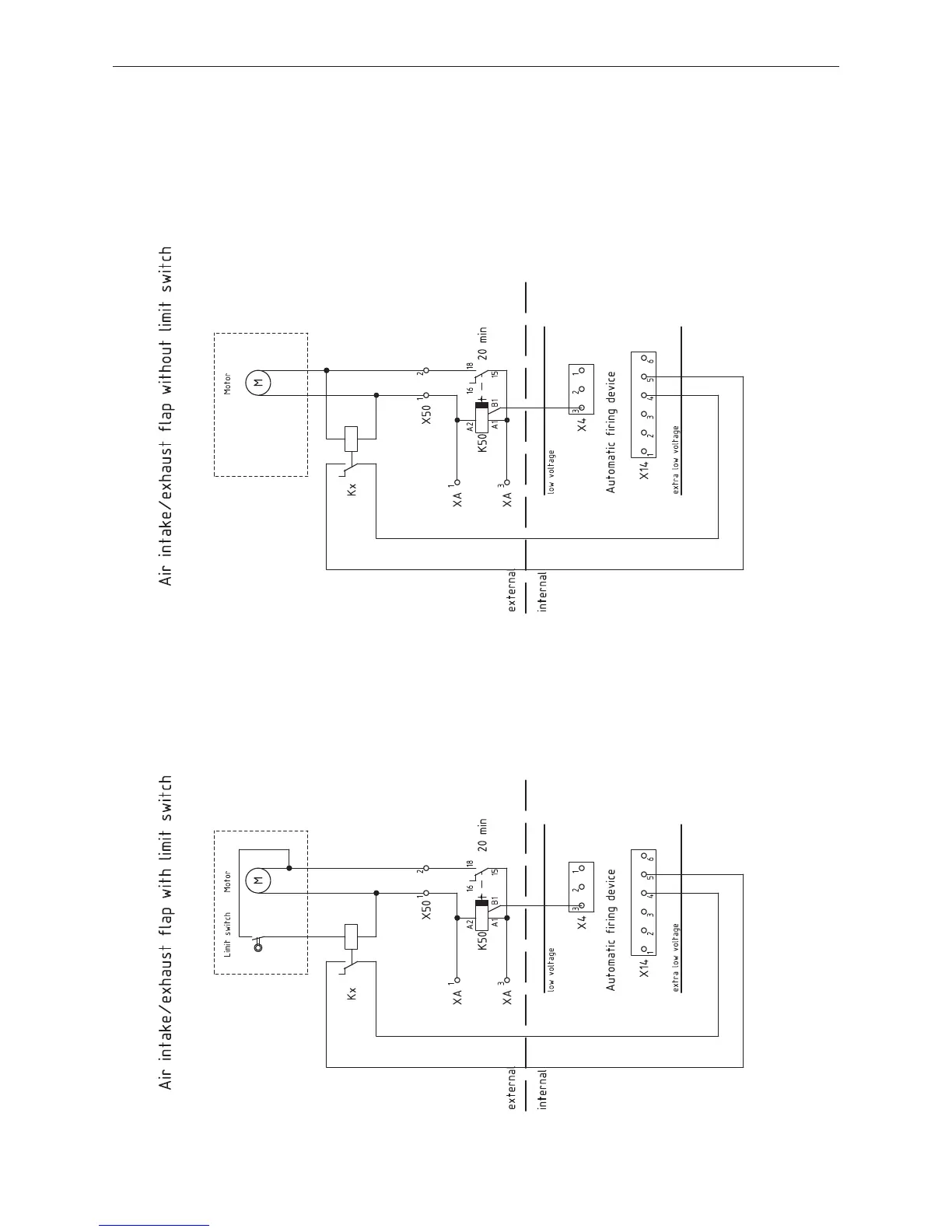

4.11 Connecting diagram for air intake/exhaust flap
The air intake/exhaust flap is directly connected to the automatic firing device (see basic circuit diagram 4.7) at
plug X4 (motor) and X14 (limit switch).
See section 4.5.1 Parameters; Flue gas thermostat or Air intake/ exhaust flap
.
092465/01
