28
2. For the Installer
– Secure the “left side panel” (part 2) to the boiler at the rear using 3 screws – Fig. 29 and front using 2 screws
– Fig. 30.

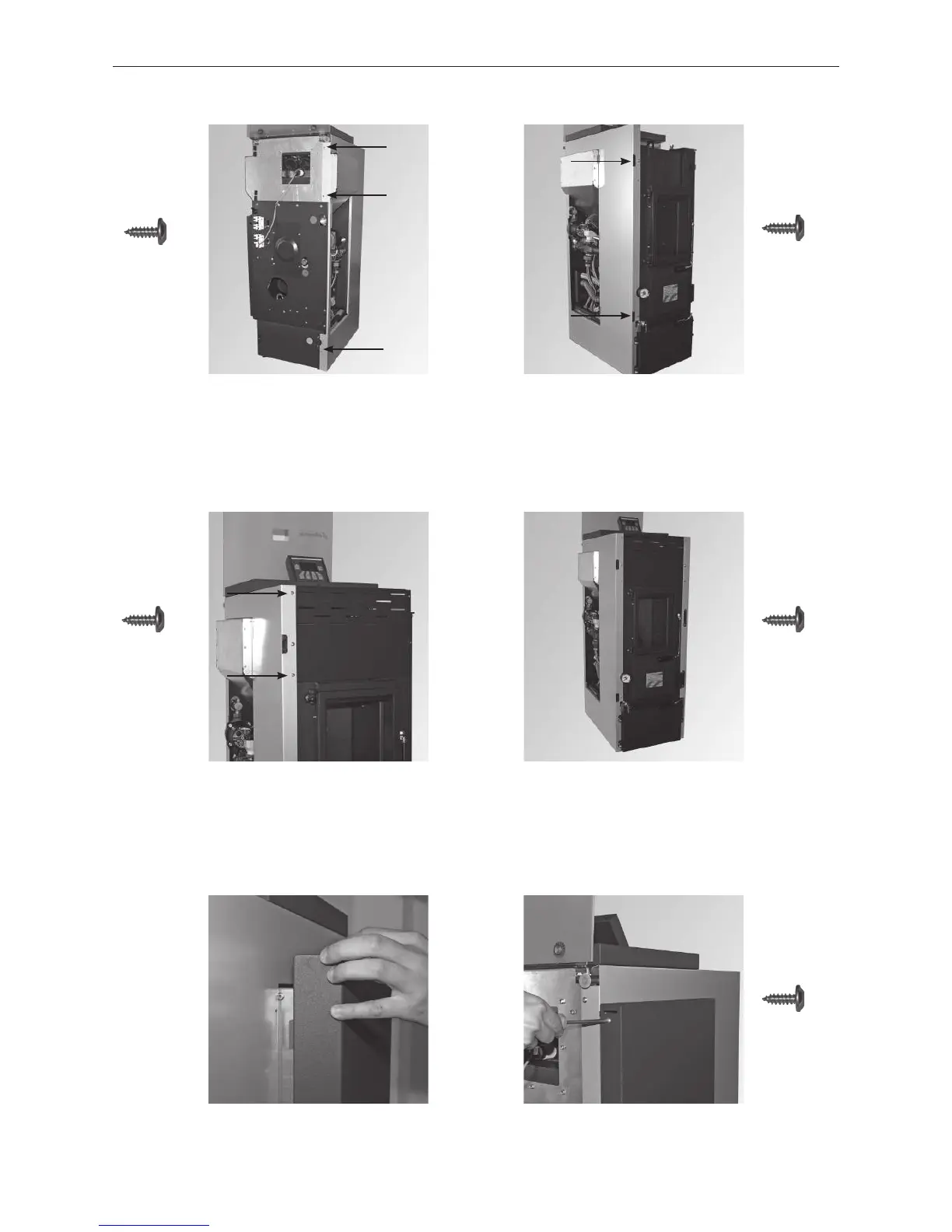

Fig. 29 Screwing the side panel on at the
rear at 3 points
Fig. 30 Screwing the side panel on at the
front at 2 points
3 x
2 x
Fig. 31 Screwing the front cover plate on at
the front at 2 points
Fig. 32 Mounting the right side panel in the
same way as the left side panel
2 x 5 x
– Secure the “front cover plate” (part 3) onto the side panel using 2 screws – Fig. 31.
– Secure the “right side panel” (part 6) to the boiler at the rear using 3 screws, at the front using 2 screws and
screw onto the “front cover plate” (part 3) – Fig. 32.
– Hook in the “rear side panels” (parts 1 and 7) – Fig. 33.
– Secure the “rear left side panel” using a screw at the rear – Fig. 34.
Fig. 33 Hooking in side panels at the rear Fig. 34 Securing the left side panel using a
screw at the rear
1 x
