34
3. For the Electrician
All electrical components (sensors, etc.) on the terminal blocks (screwless spring-type terminals) should be
connected with fine-wire PVC sheathed cables and be fixed at the rear with strain reliefs – Fig. 46, 47.
Two separate cables are required for connecting the boiler to the suction turbine or changeover unit – this is a
requirement of the guarantee conditions!
Recommended accessories: Ribbon cable FIRE 042 or FIRE 043; 5 x 2.5 mm
2
and 8 x 1 mm
2
Guide the ribbon cable through the rectangular openings and secure with cable ties as strain relief – Fig. 48.

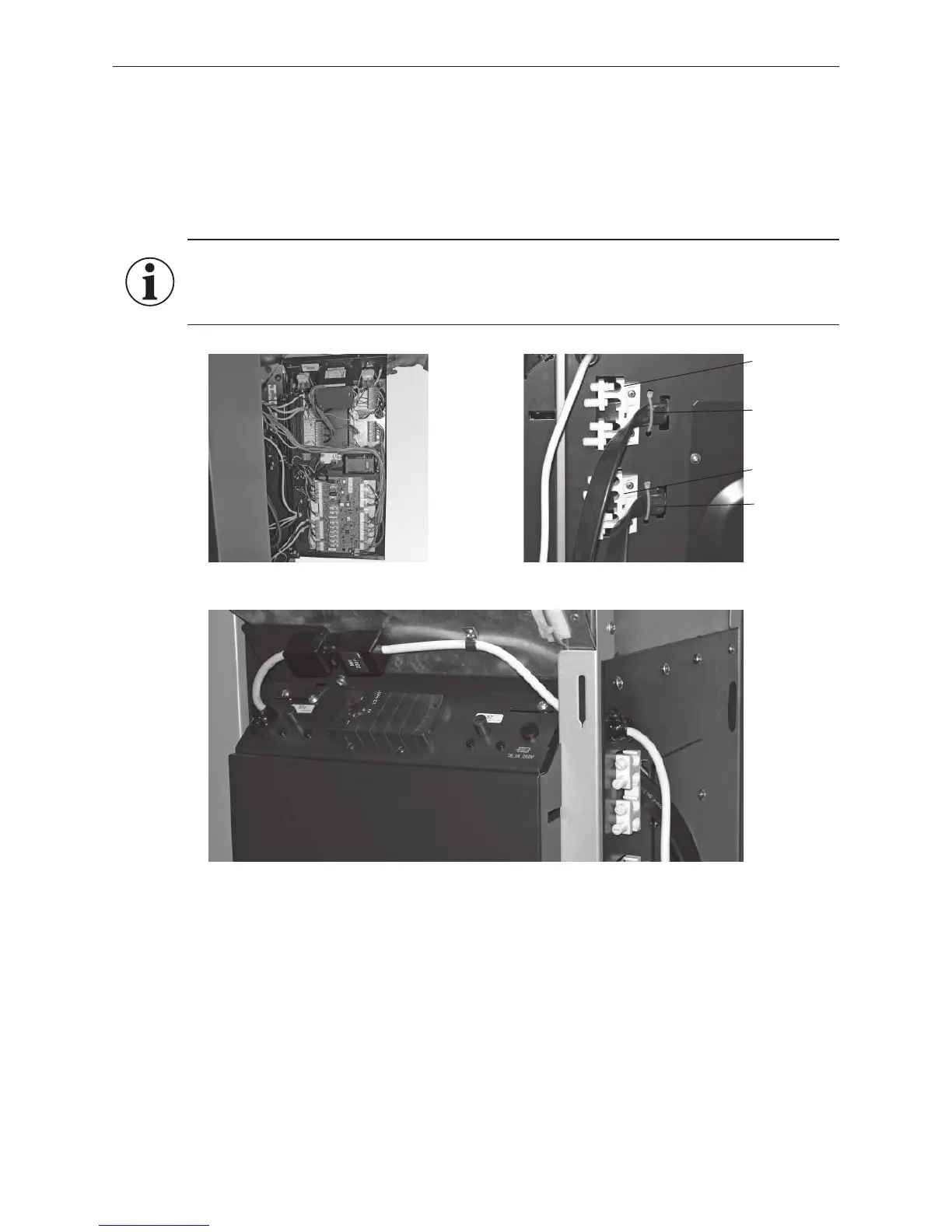

Fig. 46 Terminal blocks in the control panel Fig. 47 Strain reliefs and feed-through
for ribbon cable
Fig. 48 Cable feed-throughs – rear view
Strain reliefs
Low voltage (230
VAC)
Ribbon cable
Low voltage (230
VAC)
Strain reliefs
Extra-low voltage
Ribbon cable
Extra-low voltage
Information!
Each cable must be routed separately together with the delivery and return air hose. The cables
can be routed together with the hoses through the fire protection collars to the suction turbine or
to the changeover unit.
Electrical connections for installed fittings on UAM and UAML:
See separate assembly instructions: „Fitting the hydraulic assemblies UAM / UAML in the FireWIN or VarioWIN
pellet boiler“.
