Operation
2751−1/A1
Winterthur Gas & Diesel Ltd.
1/ 6
Exhaust Valve
1. General 1..........................................................
2. Function 4.........................................................
2.1 Open 4.......................................................
2.2 Close 4.......................................................
2.3 Hydraulic System 4...........................................
2.4 Air Supply to Air Spring 4.....................................
3. Lubrication 5.......................................................
4. Combustion Control 6..............................................
1. General
The exhaust valve (2, Fig.1) is installed in the centre of cylinder cover (1) and has the
parts that follow:
D Upper housing
D Lower housing
D Valve cage
D Valve spindle
D Valve seat.
I
I
1
016.873/08
II
III
III
II
IV
IV
2
I - I
See Fig. 2
IV - IV
II - II
See Fig. 3
III - III
See Fig. 3
See Fig. 2

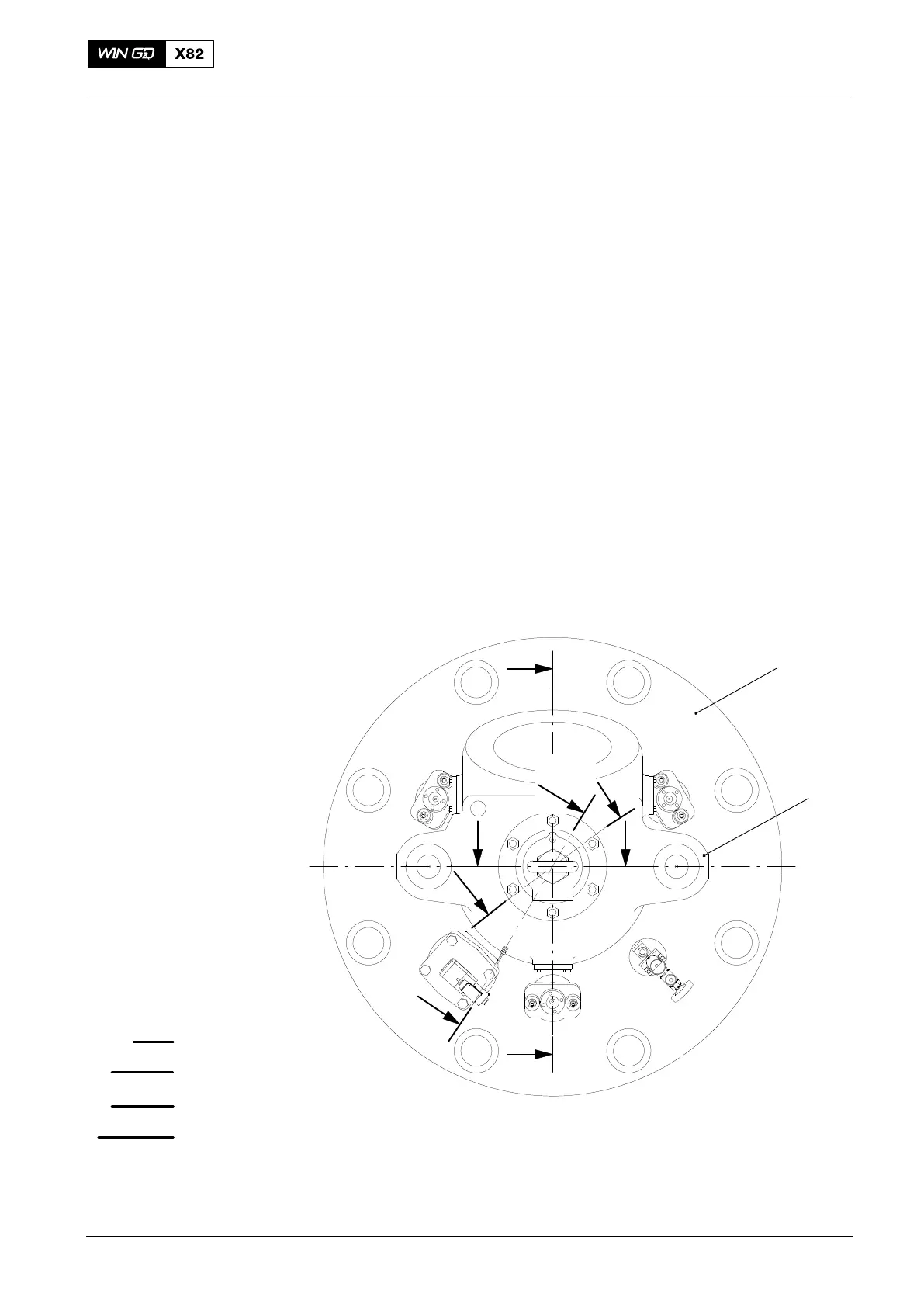

Fig. 1: Location of Parts in Cylinder Cover
1 Cylinder cover 2 Exhaust valve
2014
