Operation
8016−1/A2
Winterthur Gas & Diesel Ltd.
3/ 13
2.1 Dirty Oil Samples
2.1.1 Preparation
1) Write the applicable data on the oil analysis form (e.g. operation conditions, fuel
parameters, cylinder lubricating oil feed rate etc).
2) Make sure that the labels on the sample bottles refer to the related cylinders.
2.1.2 Procedure
1) Close the ball valve (2, Fig. 1) for approximately 30 minutes to 60 minutes.
Note: Some parts can look different.
2
3
1
Closed
Open
1
2
2
1
Open
Closed
Ball Valve Positions

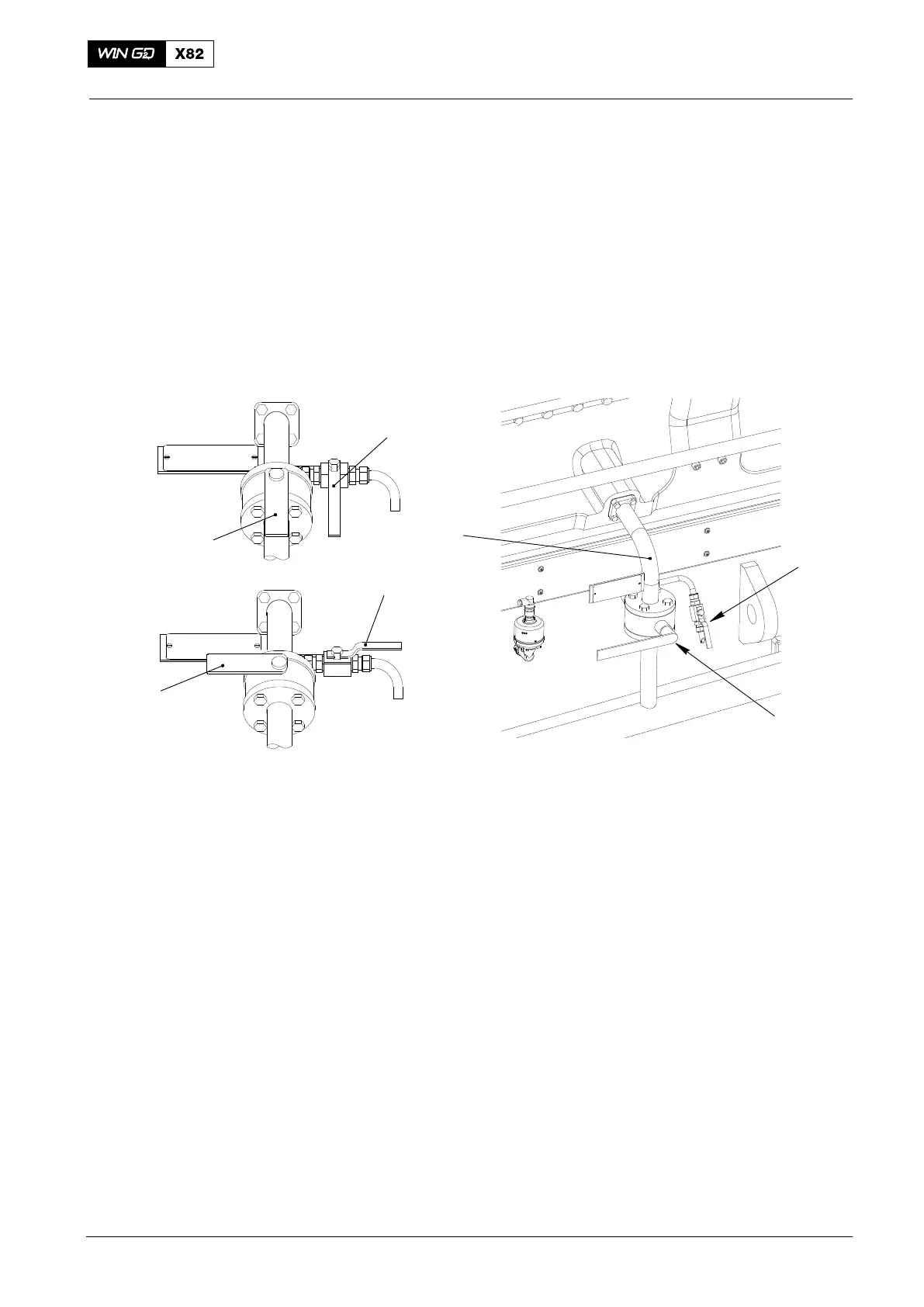

Fig. 7: Location of Ball Valves for Dirty Oil Samples
2) Put an applicable container under the ball valve (1).
3) Slowly open the ball valve (1) to flush out oil and possible dirt.
4) Close the ball valve (1).
5) Open the ball valve (2) to drain the remaining oil from the dirty oil pipe (3).
6) Close the ball valve (2).
7) Put the sample bottle under the ball valve (1).
8) After approximately 10 minutes to 60 minutes, slowly open the ball valve (1) to fill
the sample bottle.
9) Close the ball valve (1).
10) Open the ball valve (2) to drain the oil that collected in the dirty oil pipe (3).
11) Do the steps 1) to 10) again on each cylinder.
Note: WinGD recommends that you also get an oil sample of the cylinder
lubricating oil downstream of the duplex filter. Send the oil sample to the
laboratory to make an analysis to make sure the initial cylinder
lubricating oil had the correct quality and no contamination.
12) Make sure that the sample bottles are tightly closed and use an applicable
package.
13) Send the samples to the laboratory to make an analysis.
