7.5.1.2 Measuring Gas Setup

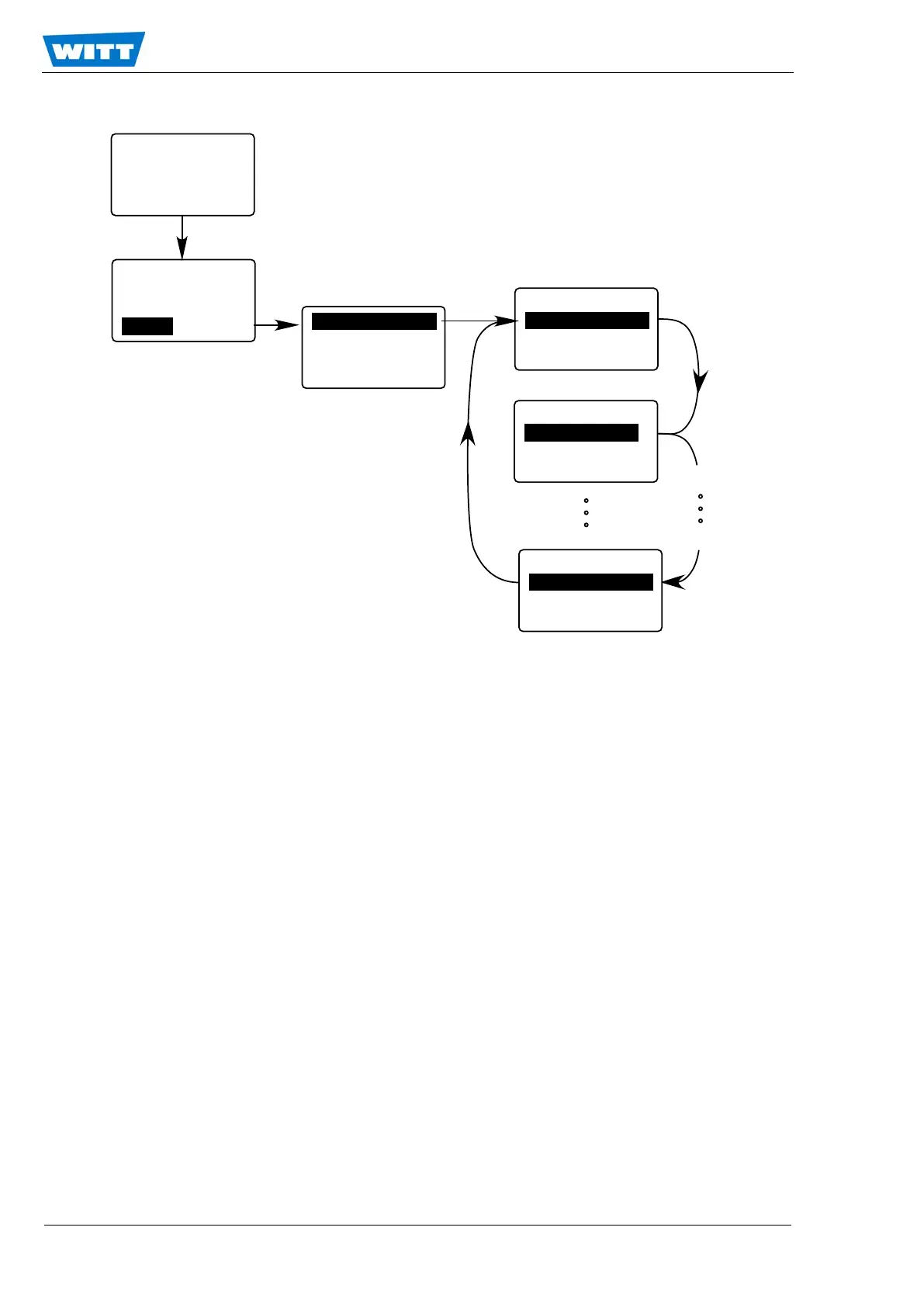

In the second line the binary gas to be measured may be altered. The stored underlying list of dif-
ferent measuring and carrier gases depends on the ordered configuration of the MFA 9000 and
may contain up to 16 binary gas mixtures.

Note!
In case a new binary measuring and carrier gas is chosen, the instruments applies the ap-
propriate linearization function (polynomial up to 6
th
order) and the most recently for this
gas determined calibration coefficients for offset and gain to calculate the proper gas con-
centration. Please mind the fact that all relay and output settings are identical for all gases
chosen.
Operation
Calibration
Diagnosis
Setup
Instr. Set.
Relay Set.
Output Set.
Expert Set.
Unit -> Vol%
H2 in N2
T90 Response
List for MGM
A1 A2 Er
0.30
[%] H2/N2
Unit -> ppm
O2 in N2
T90 Response
List for MGM
Unit -> ppm
User Poly.
T90 Response
List for MGM
