7.5.2.5 Relay 1 active/frozen during Calibration
Each relay can be configured as Calibration active or Calibration frozen.
To alternate the configuration, mark the second line and press <ENTER>.
Cal. frozen means that the relay does not react on the calibration gas concentration but stays as
long as the calibration procedure lasts in the previous state before calibration started.
Cal. active means that the relay reacts during calibration in the same way as in the operation state.
7.5.2.6 Relay 2 Mode
The Relay 2 Mode menu is similar to the relay 1 mode menu in chapter 7.5.2.1.
But relay 2 allows indicating more incidences, which is: “Maintenance” and “Aux”.
” Maintenance” is a state showing that the instrument is still working properly but requires a
check in the near future.
“Aux. L/H” provides a relay indication of the signal applied to analog input 1 exceeding a cer-
tain threshold value.
“Aux. H/L” provides a relay indication of an external signal falling below a certain threshold
value.
All other settings for Relay 2 must be done in the same way like the settings for Relay 1 described
in chapter 7.5.2.1 to 7.5.2.5.

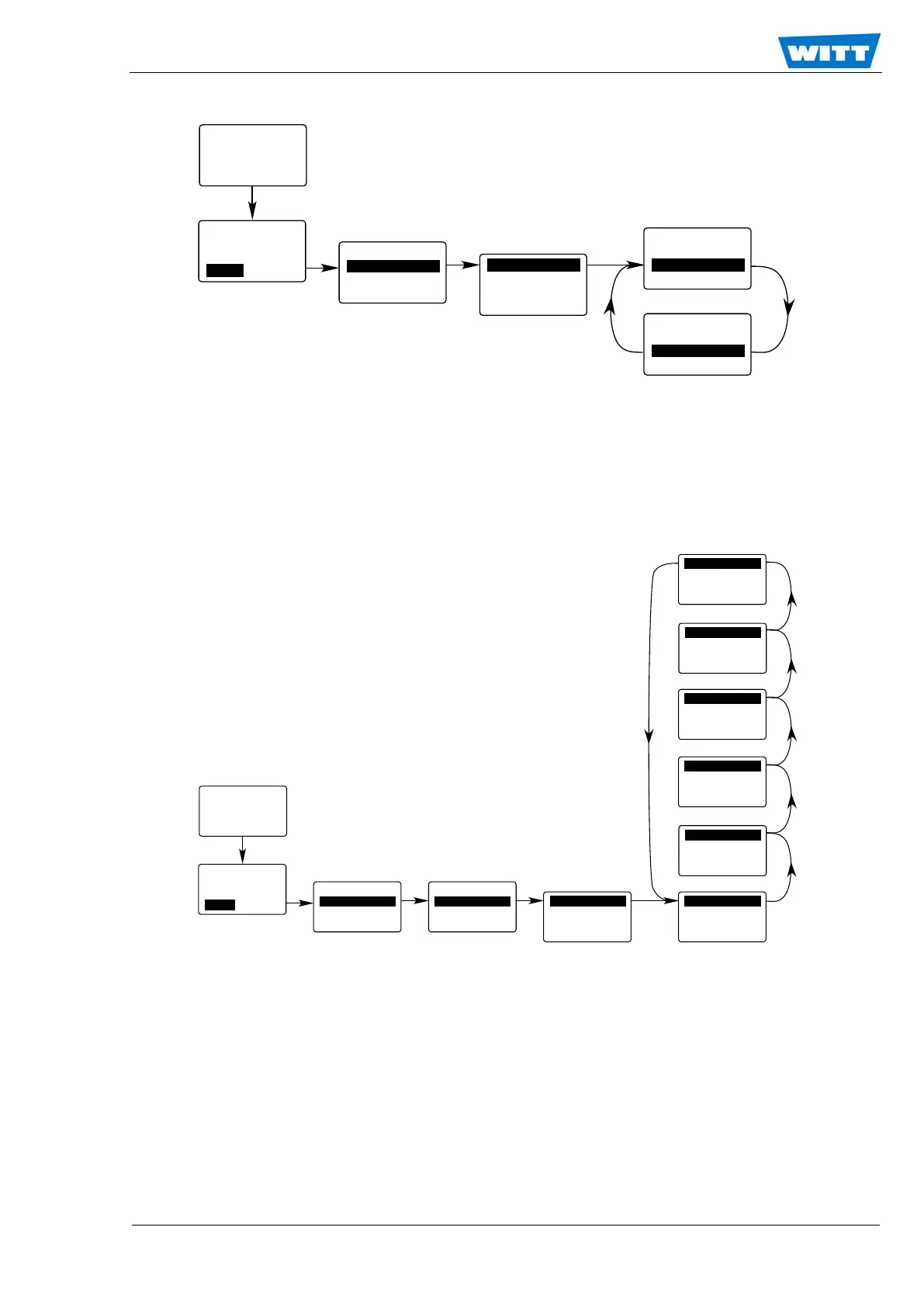

Operation
