2-16
Installation InformationCT Hoods and DD Ventilation
H
3.9 x 9.5mm
BOX MARKED
120 VAC INPUT
WIRING
NOTE: The ventilation hood must be properly ground-
ed. It should be installed by a qualifi ed electrician in ac-
cordance with all applicable national and local electrical
codes.
Run supply conductors to the hood wiring box 1.
marked “120 VAC input”.
Remove the cover from the wiring box and remove 2.
one knockout as shown in Figure 28.
Secure the conduit to the wiring box through a 3.
conduit connector.
Make electrical connections at the hood. Connect 4.
white-to-white, black-to-black and green-to-ground.
Replace the wiring box cover and screws. Make 5.
sure wires are not pinched between the cover and
box.
F
INAL STEP
Insert the fl ue extensions setting them on the hood.
Extend the upper fl ue to the ceiling and secure with the
two screws (H) as shown in Figure 29.
E
F
=

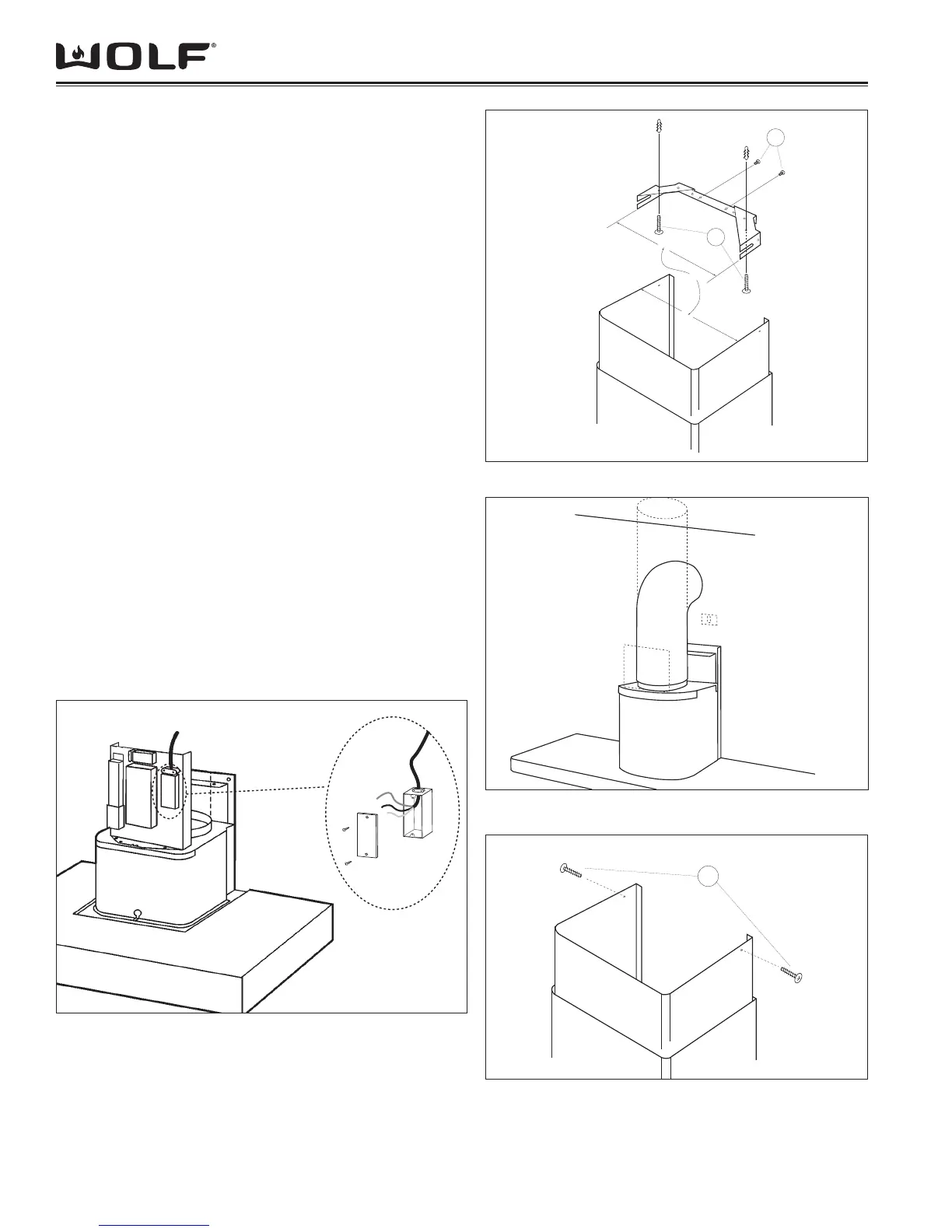

Figure 2-26 CTE Wall Hood Flue Support Bracket
Figure 2-27 CTE Wall Hood Air Outlet Pipe
Figure 2-29 CTE Wall Hood Flue Securing
Figure 2-28 CTE Wall Hood Electrical Connection
