2-17
Installation Information CT Hoods and DD Ventilation
DUCT WORK
INS TALLATION
TH ROUGH
ROOF
DUCTWORK
INSTALLATION
THROUGH EAVE –
INTERNAL
BLOWER ONLY
24" (610)
TO
30" (762)
COUNTERTOP
TO BOTTOM
OF HOOD
TO
HEIGHT
OF HOOD
21
5
/8" (549)
DEPTH OF HOOD
28
1
/4” (718)
41
1
/2” (1054)
LOW-PROFILE ISLAND HOOD INSTALLATION SPECIFICATIONS AND PREPARATION
NOTE: This installation must be completed by a qualifi ed installer or Wolf authorized service center technician.
Locate the electrical supply through the ceiling inside the area of the fl ue.1.
Install ductwork as outlined on page 2-13 & Figure 2-30.2.
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, THIS VENTILATION HOOD SHOULD ONLY BE
INSTALLED WITH BLOWERS MANUFACTURED BY WOLF APPLIANCE INC. AND SPECIFIED FOR USE WITH
THESE VENTILATION MODELS.

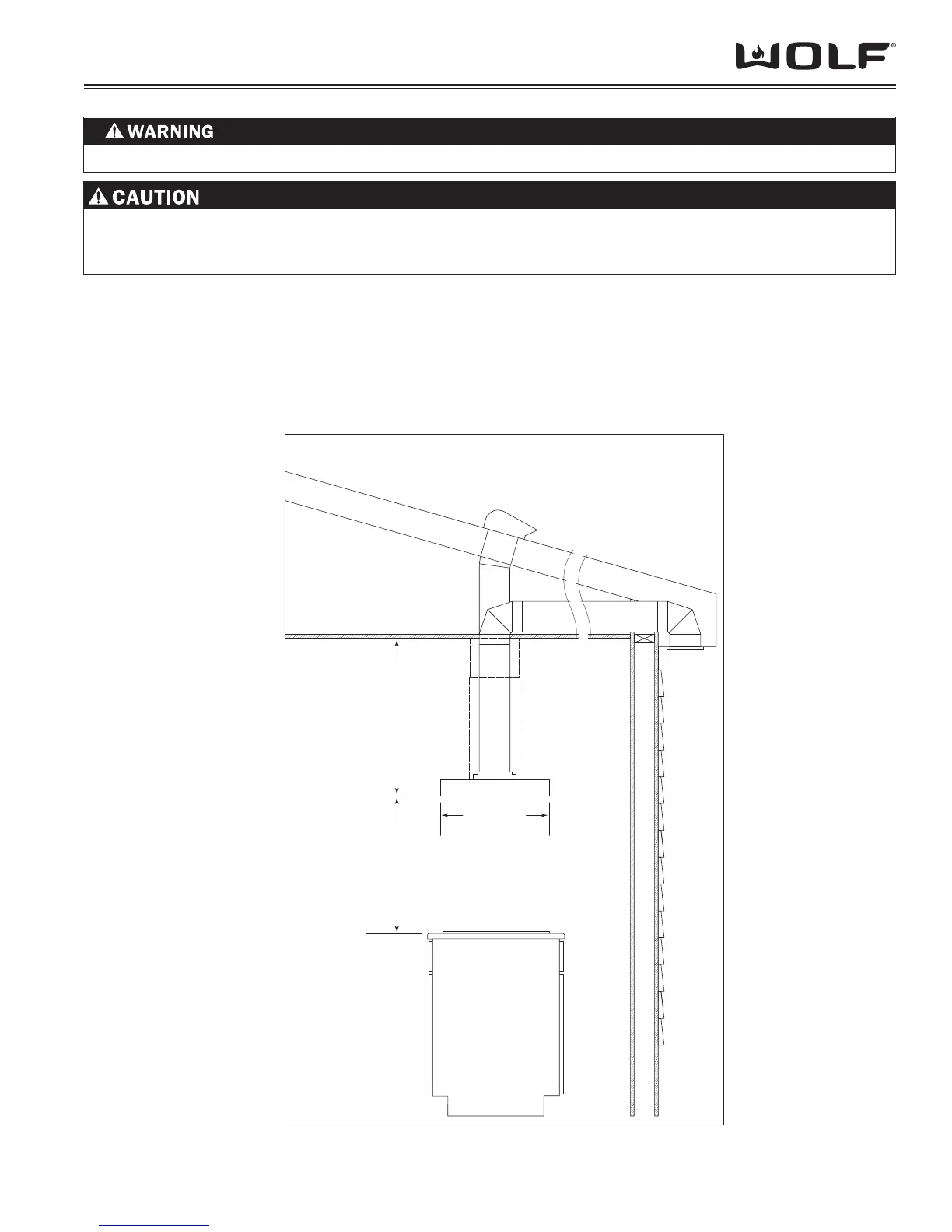

Figure 2-30 CTEI Hood Installation Considerations
