Sawmill Alignment
Routine Alignment Procedure
Sawmill Alignment 60HDdoc081208 7-10
7
See Figure 7-9. Loosen the jam nuts on the top and bottom vertical tilt adjustment
screws. To tilt the roller up, loosen the bottom screw and tighten top screw. To tilt the roller
down, loosen the top screw and tighten the bottom screw. Tighten the jam nuts and
recheck the tilt of the blade.
6. Move the blade guide alignment tool close to the inner blade guide roller assembly and
repeat the above steps. Adjust the vertical tilt of the inner blade guide if necessary.

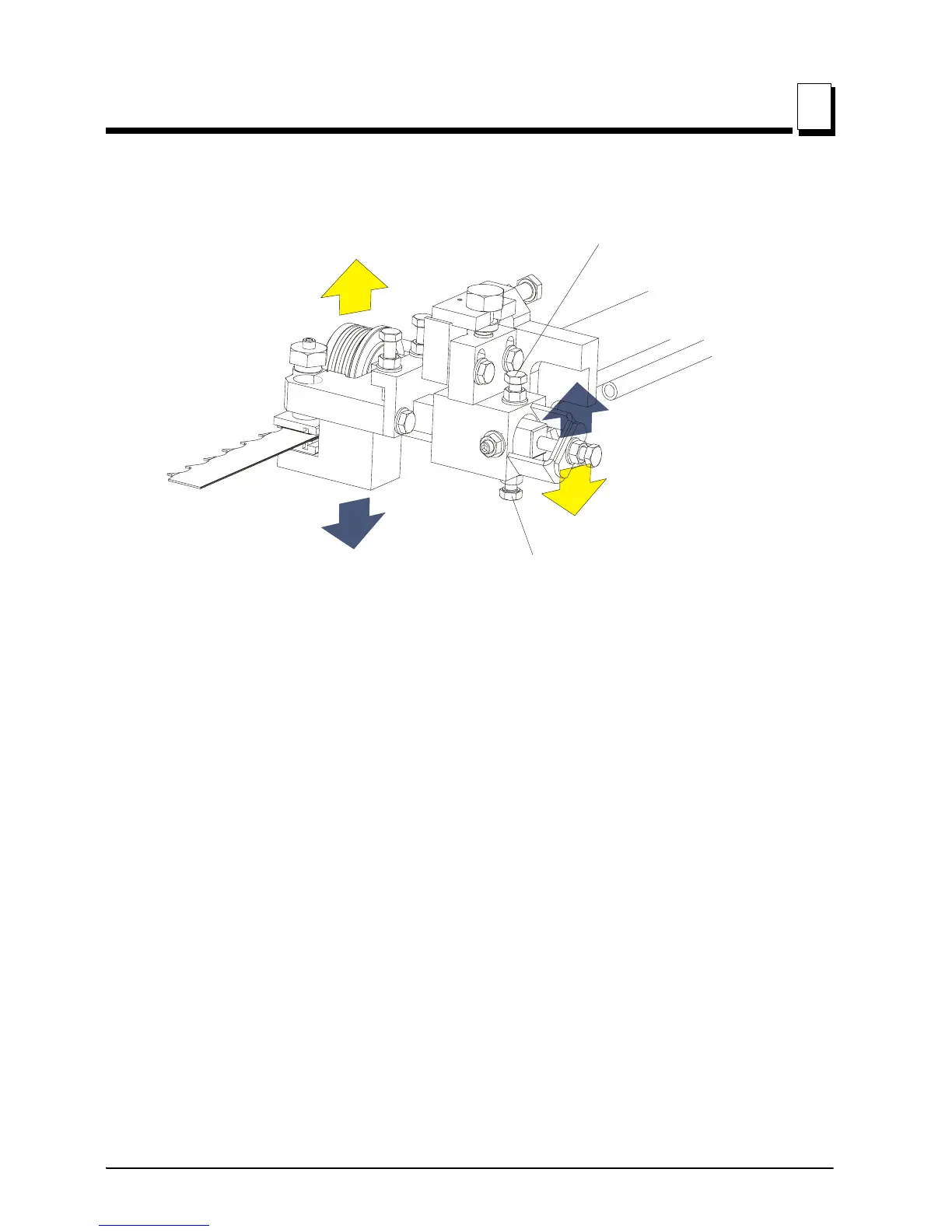

FIG. 7-9
Top Vertical Tilt
Adjustment Screw
Bottom Vertical Tilt
Ad
