Sawmill Alignment
Routine Alignment Procedure
7
7-11 60HDdoc081208 Sawmill Alignment
Blade Guide Horizontal Tilt Adjustment
If the blade guides are tilted in the wrong direction horizontally, the back of the blade may
contact the flange as the roller is spinning down, causing it to push the blade away from
the guide roller.
1. Remove the blade guide alignment tool from the blade and adjust the blade guide arm
halfway in.
2. Remove the clip from the blade guide alignment tool. Place the tool against the face of
the outer blade guide roller.
See Figure 7-10.
3. Measure between the back edge of the blade and the tool at the end closest to the inner
blade guide ("B").
4. Measure between the back edge of the blade and the other end of the tool ("A").
The roller should be tilted slightly to the left (’A’ 1/8" [3 mm] less than ’B’ ±1/8" [3 mm]).

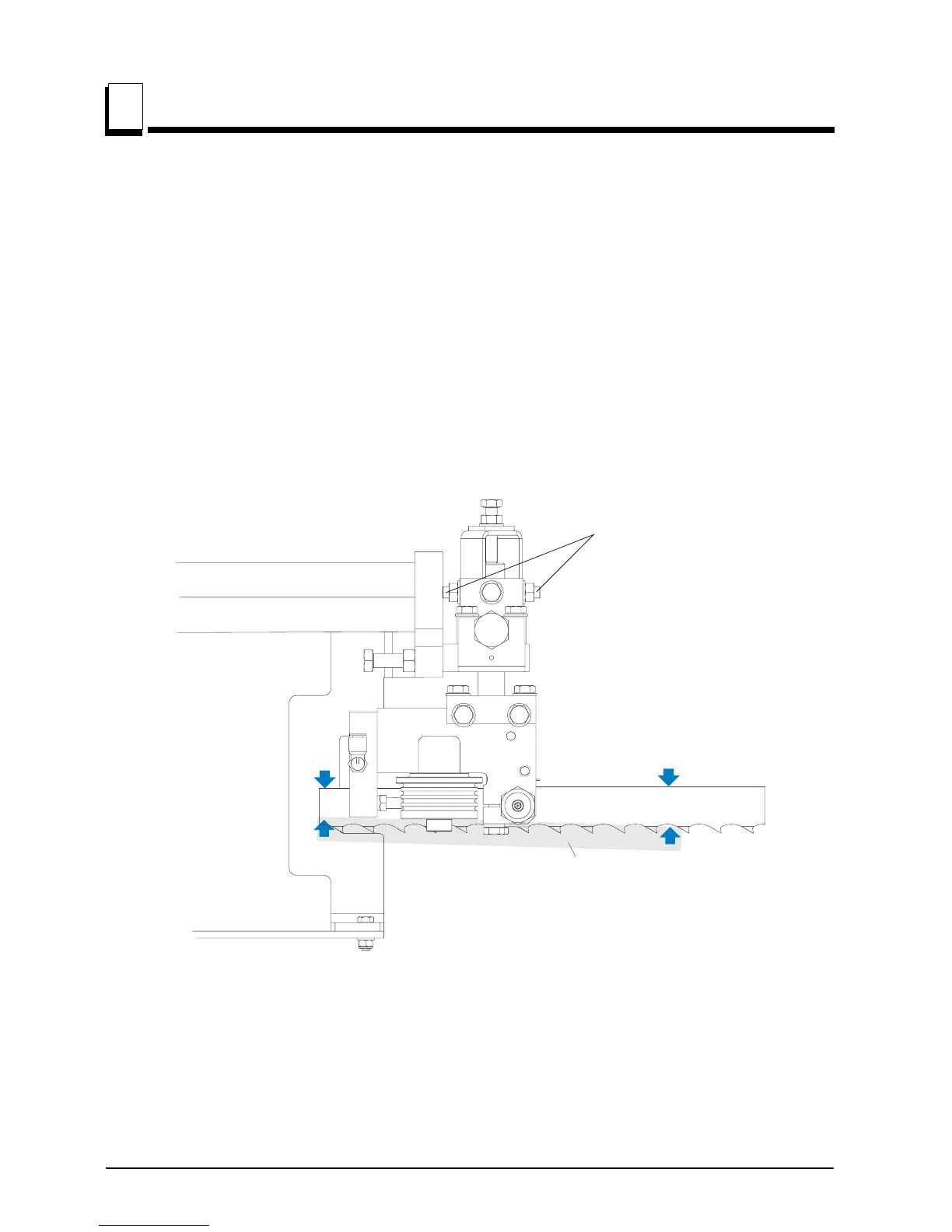

FIG. 7-10
Horizontal Tilt
Adjustment Screws
A
B
Blade Guide
Alignment Tool
600035b
