See Figure 7-11. Loosen the jam nuts on the horizontal tilt adjustment screws. To tilt the
roller left, loosen the right screw and tighten left screw. To tilt the roller right, loosen the
left screw and tighten the right screw. Tighten the jam nuts and recheck the tilt of the
blade.
5. Repeat the above steps for the inner blade guide roller assembly.
NOTE: Once the blade guides have been adjusted, any
cutting variances are most likely caused by the blade. See
Blade Handbook, Form #600.

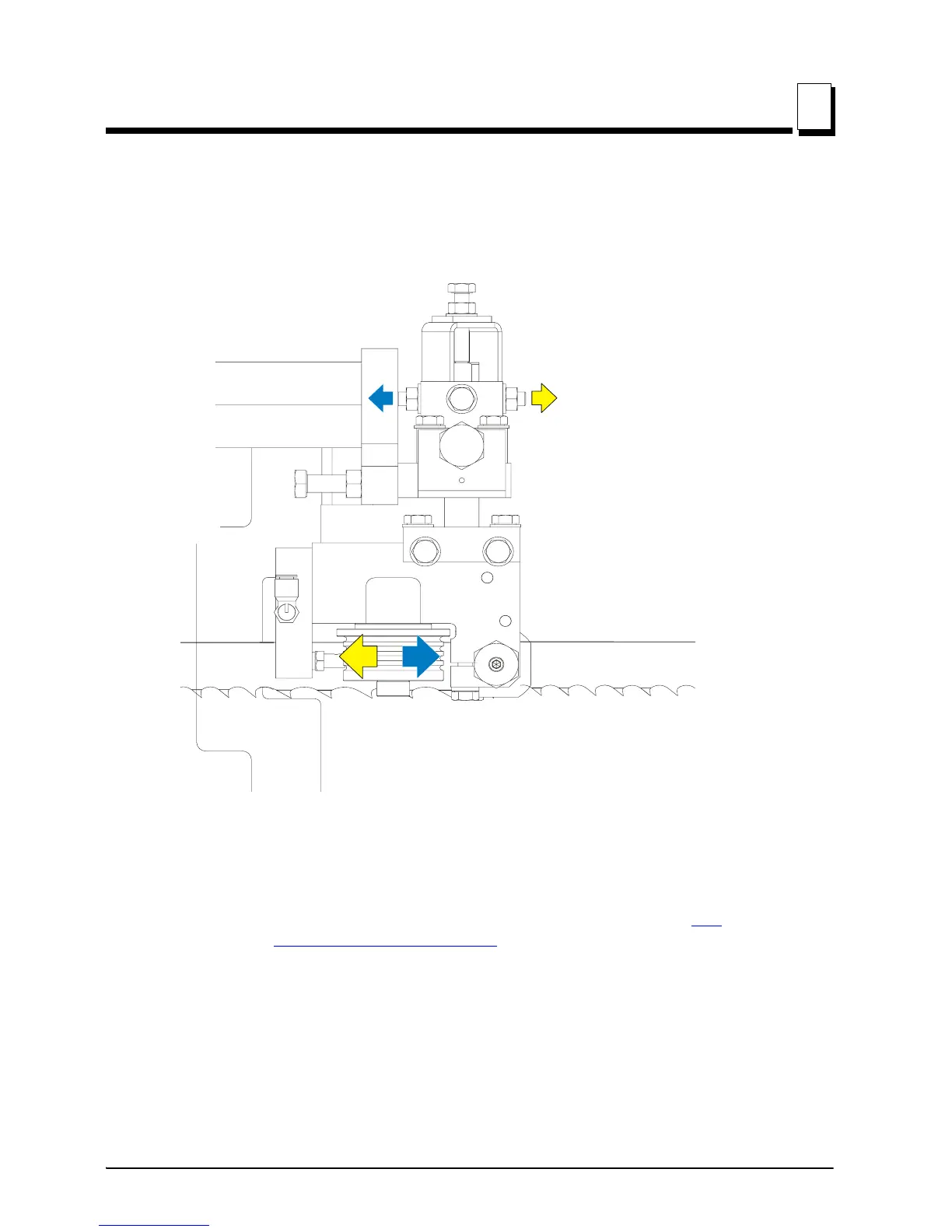

FIG. 7-11
Adjust screws right
to tilt roller left; Adjust
screws left to tilt roller
right
