Sawmill Alignment
Complete Alignment Procedure
7
7-45 60HDdoc081208 Sawmill Alignment
Clamp Stop/Stop Bolt Adjustment
1. Once the side supports are aligned, pivot them down to their horizontal position.
2. Tie a string to the stop block at the first bed rail. Stretch the string toward the rear of the
frame and tie to the stop block at the last bed rail.

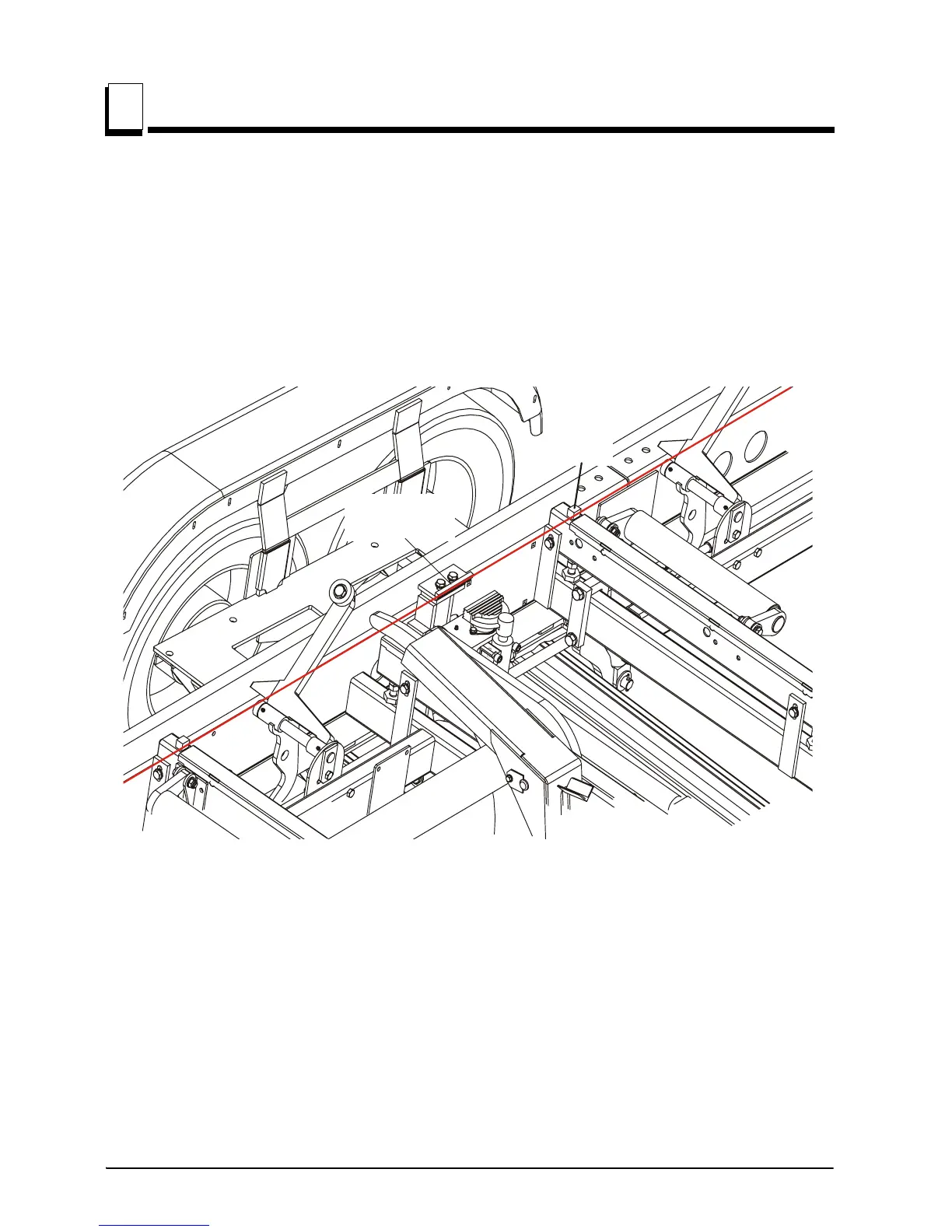

See Figure 7-42. Loosen the clamp stop bolts and adjust the clamp stop until it touches
the string.
FIG. 7-42
Stop
Block
Adjust clamp
stop to string
