Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc081208 7-46
7
Saw Head Tilt
As the blade enters a wide log or cant, the outside of the saw head will drop down slightly.
To compensate for the drop, the saw head is adjusted 1/16" (1.5 mm) higher at the out-
side.
1. Move the saw carriage so the blade is positioned over a bed rail. Adjust the blade guide
arm to 1/2" (15 mm) from full open. The saw head should still be adjusted so the blade is
14 3/4" (375 mm) above the bed rails.
See Figure 7-43.
2. Measure from the blade to the bed rail near the outer blade guide assembly. This mea-
surement should be 1/16" (1.5 mm) higher than the inner measurement.

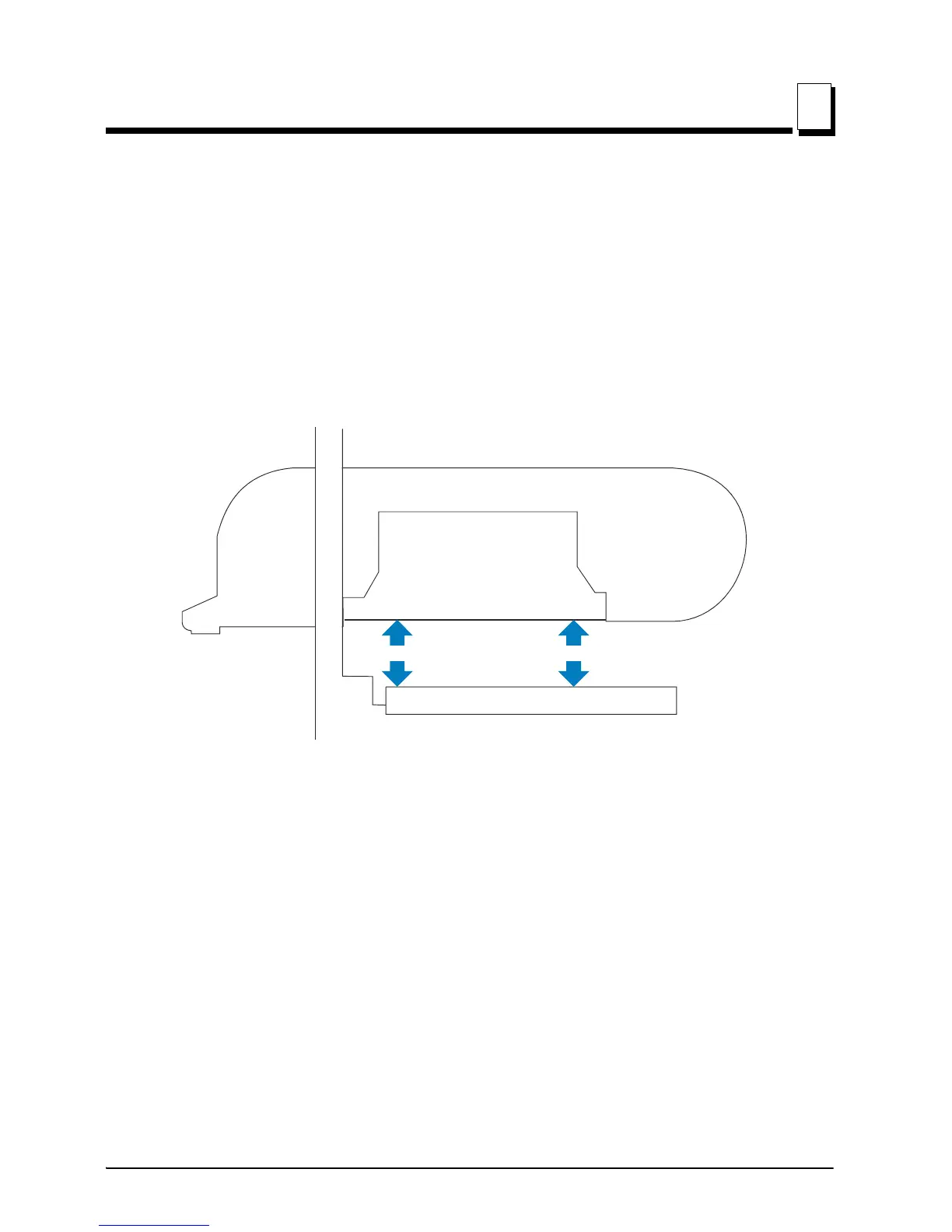

FIG. 7-43
A
A + 1mm
SM0257
