Sawmill Setup
Portable Sawmill Setup
Sawmill Setup 60HDdoc081208 3-6
3
See Figure 3-2.
CAUTION! If setup sawmill on a boggy terrain (such as
deep mud or sand) place the board or metal plate under
each outrigger leg to prevent it from sinking.
1. Unhook the carriage safety chain, located at the bottom of the vertical mast.
2. Start the engine to enable the battery-operated accessories (See Section 3.8
). Use the
up/down switch on the control panel to raise the cutting head from the carriage rest pin.
Remove the locking pin and swing the rest pin down below bed level.
CAUTION! Always make sure the engine is running before

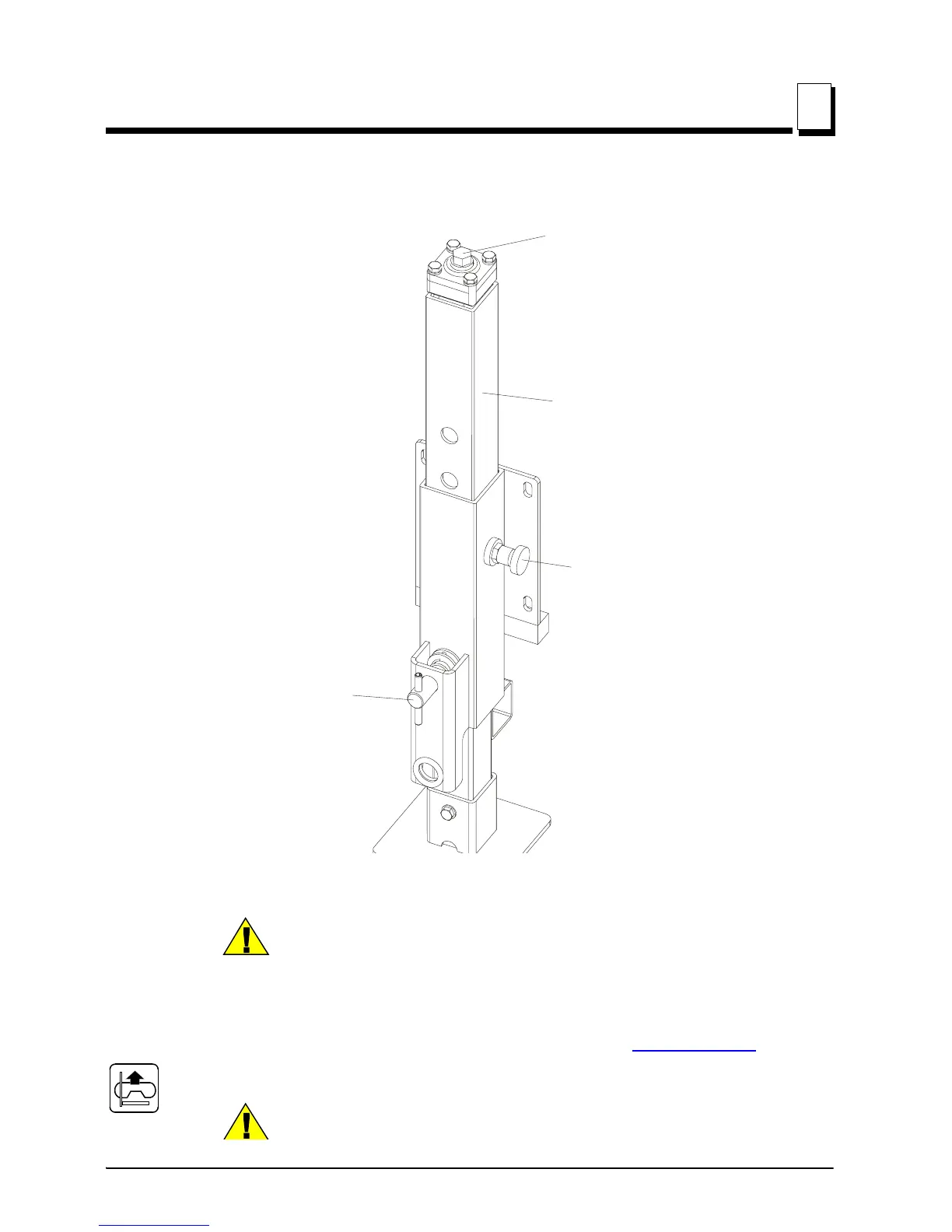

FIG. 3-2. OUTRIGGER ADJUSTMENT.
Locking Pin
Outrigger Leg
Travel Lock Pin
80_008
Adjustment
Bolt
