Using the YOXIMO with a power adaptor – in a vehicle
Do not remove the battery when using the YOXIMO with a power adaptor.
There are three options for using the YOXIMO with a power adaptor in a vehicle:
• power the terminal from the cigarette-lighter
• put the terminal in the cradle, and use the co-ax or the flat-pin connector to power the cradle
from the cigarette-lighter
• put the terminal in the cradle, and use the flat-pin connector to power the cradle from a built-
in connection to the vehicle’s electrical system
Cables/adaptors for these options have to be purchased separately, as accessories.
!
plug-in vehicle adaptor –
at-pin connector
for cradle
plug-in vehicle adaptor –
co-ax connector
for terminal or cradle
built-in vehicle adaptor –
at-pin connector
for cradle
31 2

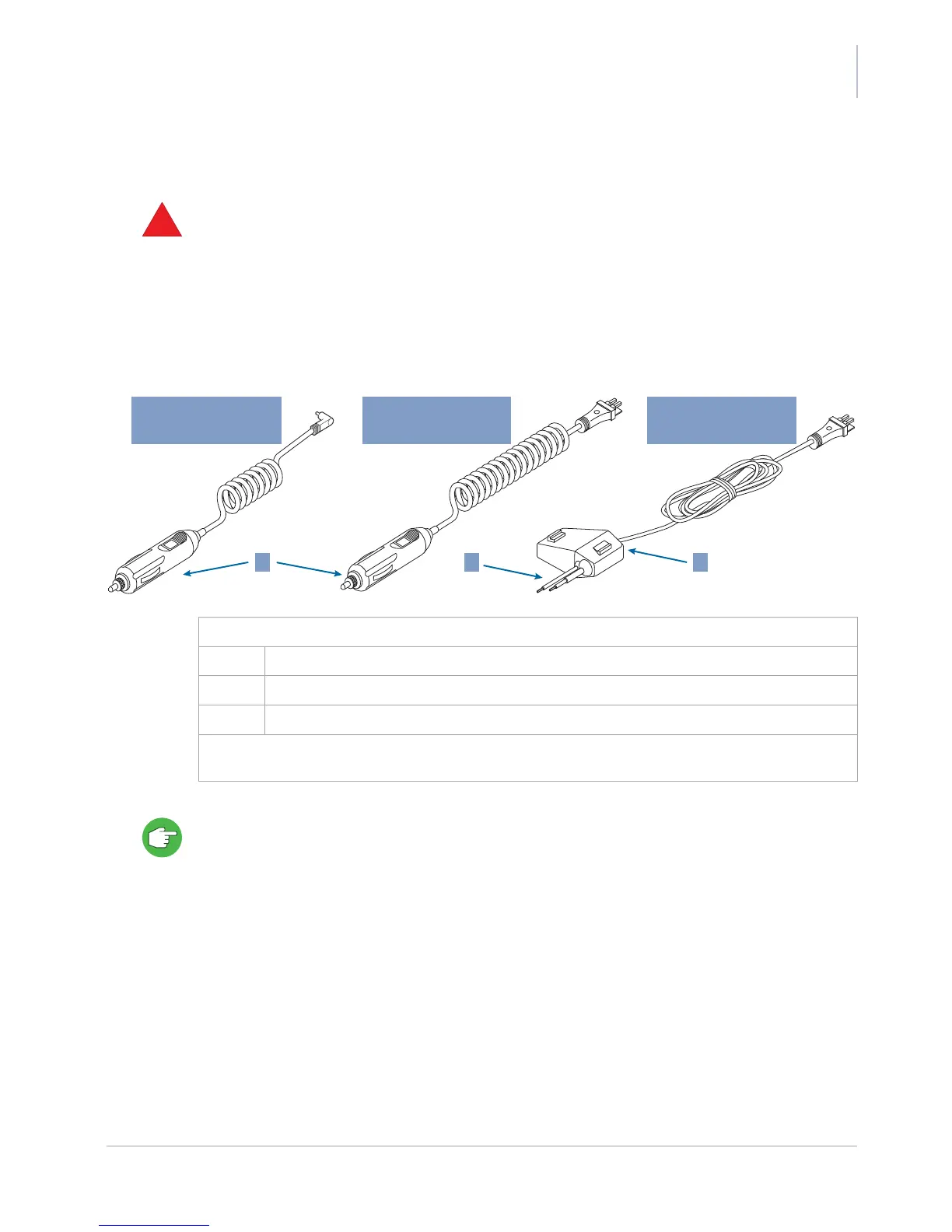

Figure 22. Vehicle power cable
1 cigarette lighter plug
2 connection to vehicle electrical system
3 fuse box
The cradle transforms the car or truck voltage to the 12 VDC needed to charge the battery in the
YOXIMO terminal.
