Fixing the cradle on a wall or other vertical surface
For convenience, you can also mount the cradle vertically. If you do this, you are advised to fit the
drop protection before you screw the cradle to the wall. Note that the card interfaces are not
accessible when the terminal is in a cradle with drop protection fitted.
Always fit the drop protection when the cradle is mounted vertically. This will prevent the terminal
from falling if it is not positioned correctly on the cradle. The drop protection is supplied as
standard, and can easily be screwed on to the cradle.

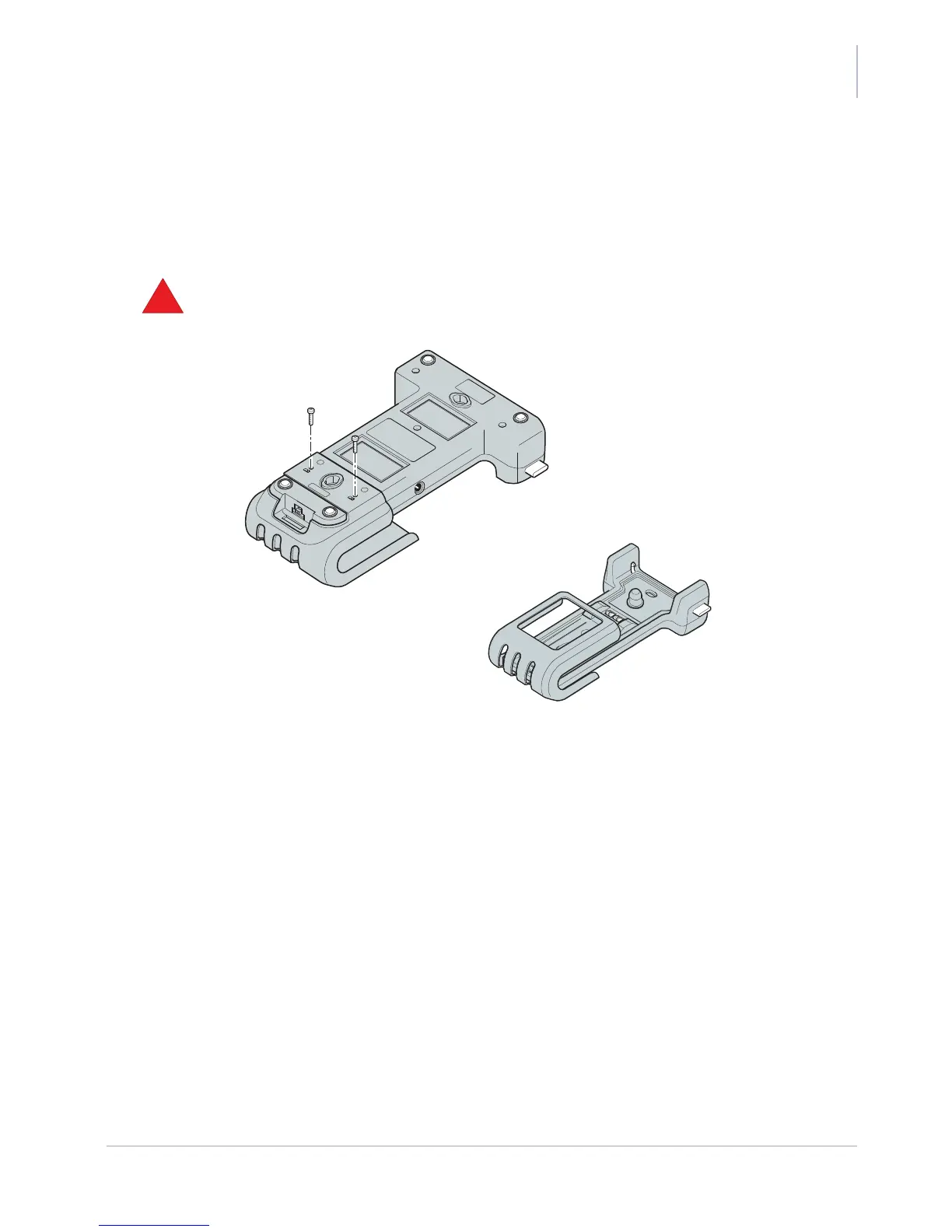

Figure 29. Mounting the drop protection on to the cradle
1. Fit the cradle in the drop protection, using the two screws supplied.
Use a torx T8 screwdriver to screw the drop protection on to the cradle.
2. After fitting the drop protection to the cradle, fix the cradle to the flat surface as described
under Fixing the cradle on a countertop or other horizontal surface, on page 29.
