YOXIMO owner manual
Indoors
Only use the power adaptor that is supplied with your YOXIMO terminal.
1. Plug the power cable from the mains adaptor into the socket on the side of the cradle.
2. Connect the mains adaptor to a wall socket.
3. Put the YOXIMO on its cradle as described in Placing the terminal on the cradle, on page 31,
and wait for the YOXIMO keypad backlight and display to light up.
In a vehicle
•
Only qualified personnel should install the YOXIMO in a vehicle. Faulty installation may
invalidate any warranty that applies to the unit.
• Only use the vehicle power cable that is supplied by your vendor.
In a vehicle, a power cable for direct wiring or with cigarette lighter plug is connected to the cradle.
The cradle transforms the car or truck voltage to the 12 VDC needed to charge the battery in the
YOXIMO terminal.
For more information, see Vehicle power cable, on page 22.
The straight car power cable for direct wiring has a length of 2 m. The coiled cable with a cigarette
lighter plug has a length of 0.60 m, and can be extended to 2.35 m. Worldline can supply these
cables.

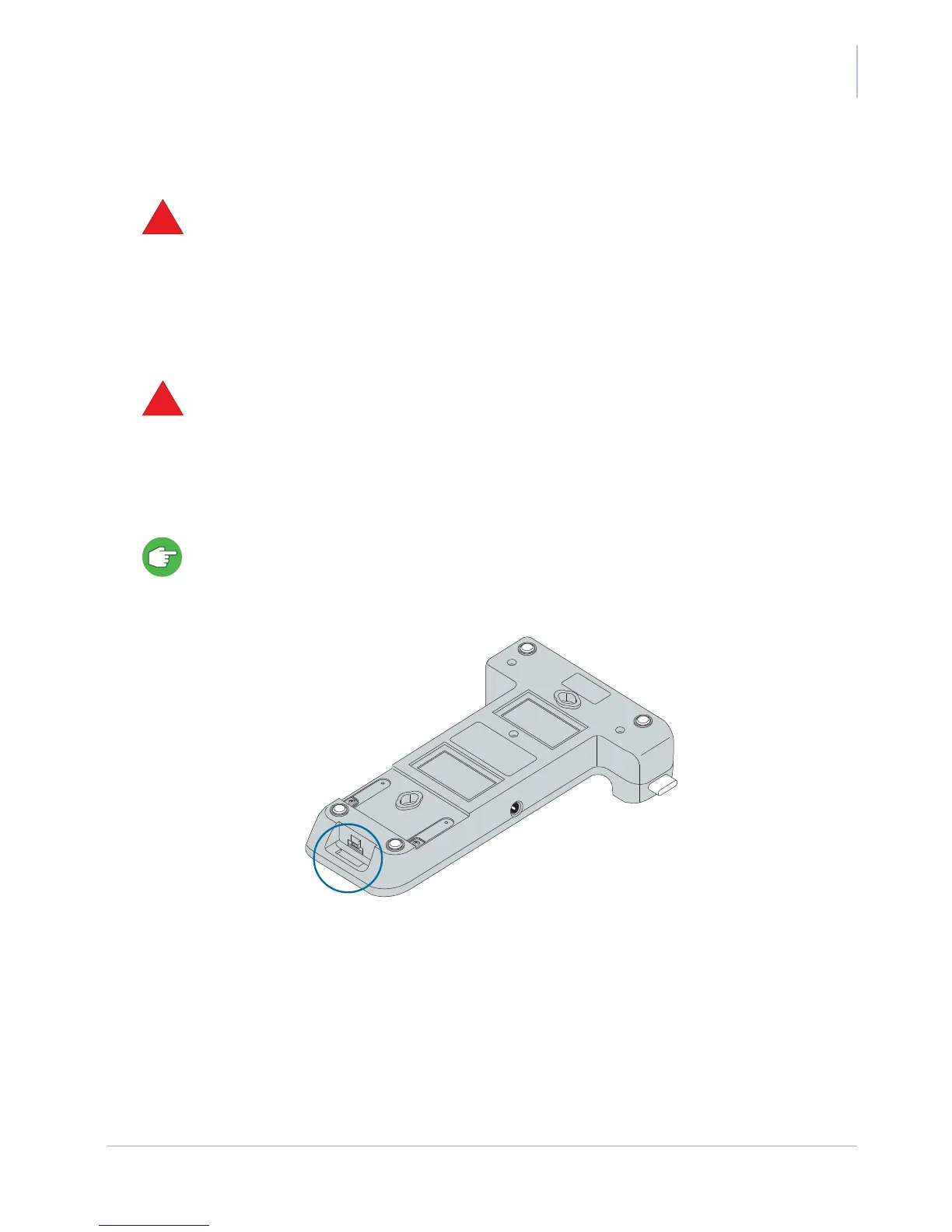

Figure 33. Vehicle power cable socket
1. Take the appropriate vehicle power cable.
2. Plug it into the connector underneath the front of the YOXIMO cradle.
3. Connect the power cable to the vehicle‘s electrical system (12 or 24 VDC) directly, or use the
cigarette lighter plug.
4. Put the YOXIMO on its cradle as described in Placing the terminal on the cradle, on page 31,
and wait for the YOXIMO keypad backlight and display to light up.
!
!
