2-M1
L3130 · L3430 · L3830 · L4630 · L5030, WSM
CLUTCH
1. FEATURE
The dry single plate with diaphragm spring type clutch
is adapted for all models.
This clutch is operated with the hanging type pedal,

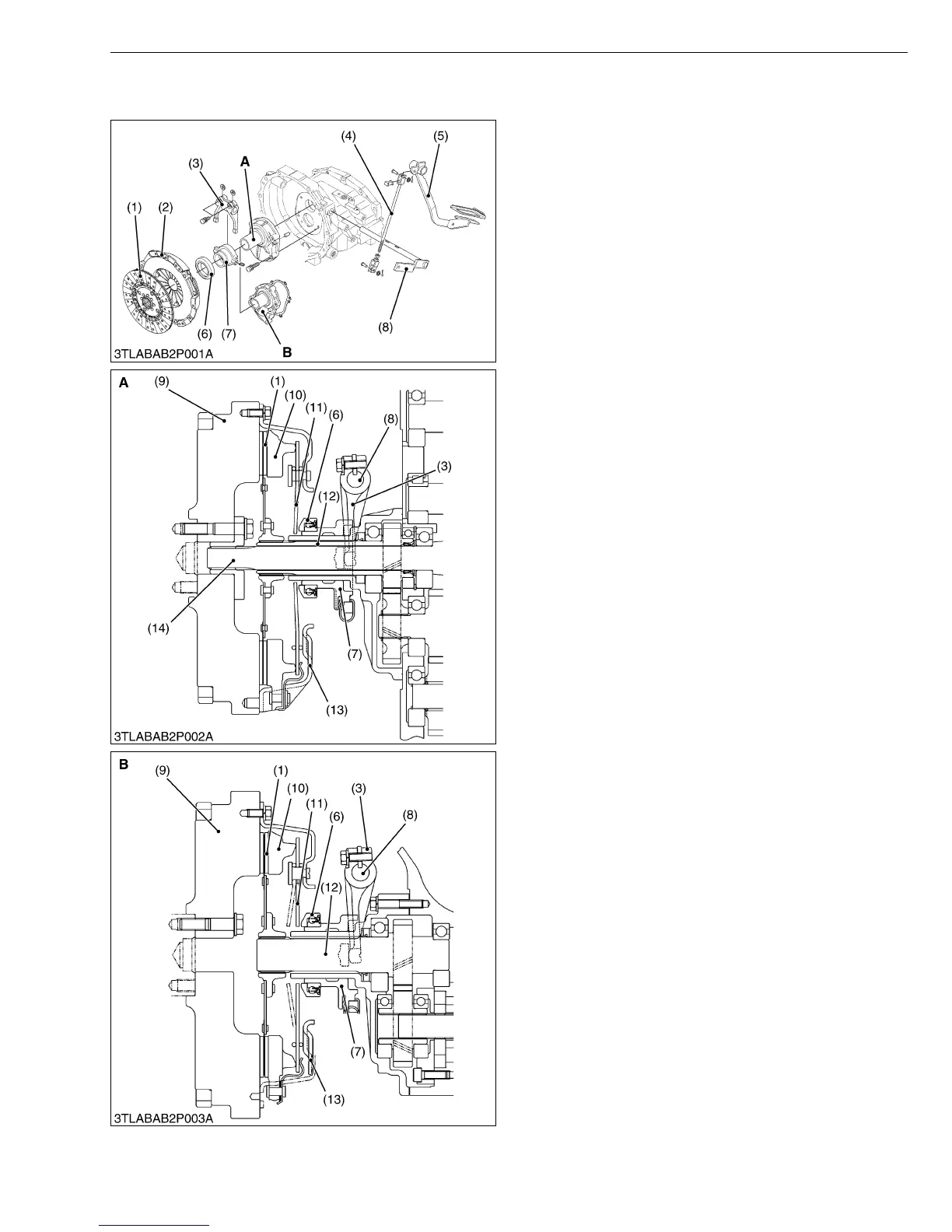

and the pedal (5) and release fork (3) have been linked
as shown in figure.
W1012642
(1) Clutch Disc
(2) Pressure Plate Assembly
(3) Release Fork
(4) Clutch Pedal Rod
(5) Clutch Pedal
(6) Release Bearing
(7) Release Hub
(8) Clutch Lever Shaft
(9) Flywheel
(10) Pressure Plate
(11) Diaphragm Spring
(12) Main Shaft
(13) Clutch Cover
(14) PTO Shaft
A : Manual Transmission and
GST Model
B : HST Model
To Next Page
