wsm L503 - Gst Model

9-M30
L3130 · L3430 · L3830 · L4630 · L5030, WSM

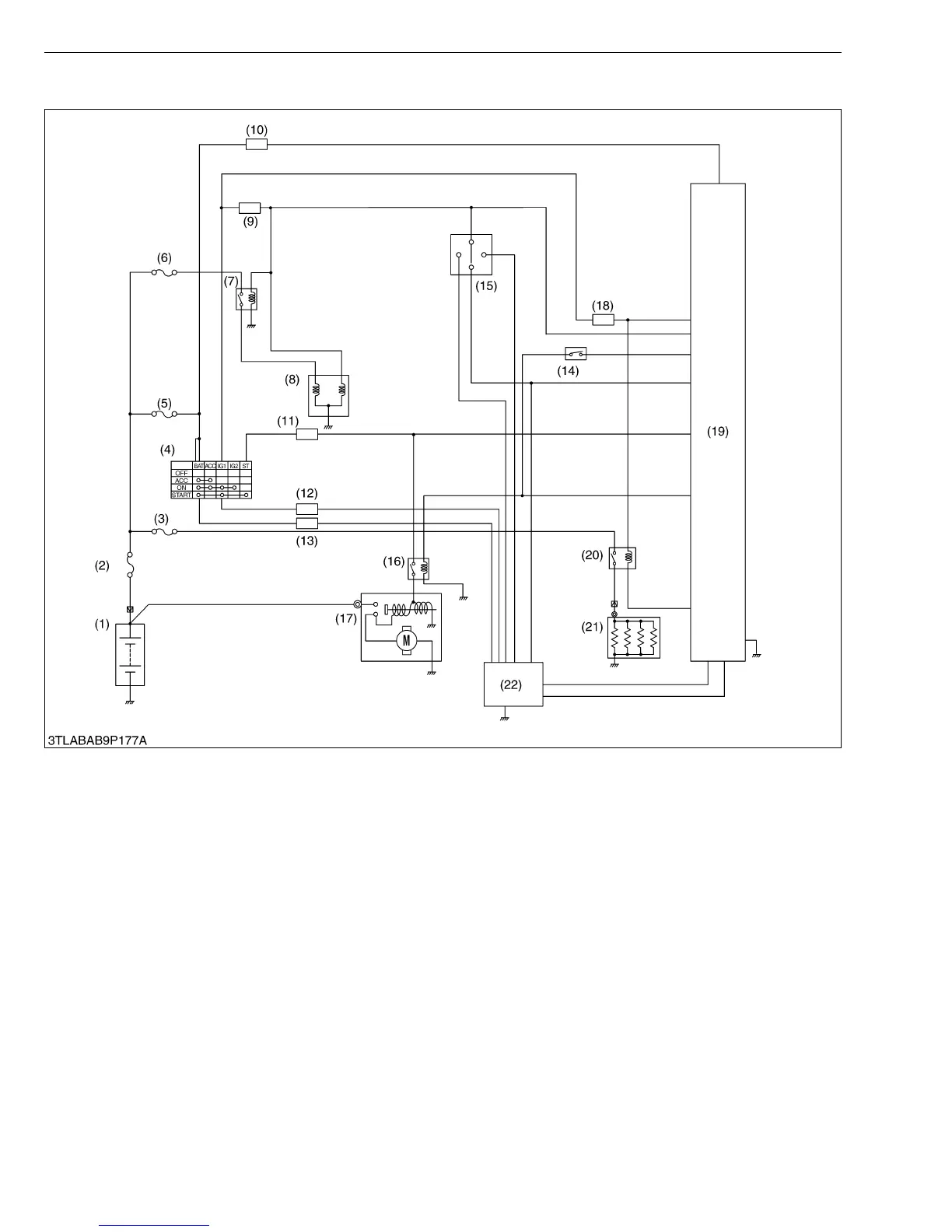

ELECTRICAL SYSTEM
[3] GST MODEL
(1) Battery
(2) Slow Blow Fuse (80 A)
(3) Slow Blow Fuse (50 A)
(4) Main Switch
(5) Slow Blow Fuse (60 A)
(6) Slow Blow Fuse (30 A)
(7) Key Stop Solenoid Relay
(8) Key Stop Solenoid
(9) Fuse (5 A)
(10) Fuse (5 A)
(11) Fuse (30 A)
(12) Fuse (10 A)
(13) Fuse (5 A)
(14) PTO Switch
(15) Shuttle Switch
(16) Starter Relay
(17) Starter
(18) Fuse (7.5 A)
(19) Electronic Instrument Panel
(IntelliPanel)
(20) Glow Relay
(21) Glow Plug
(22) Electronic Control Unit (ECU)
