9-M31
L3130 · L3430 · L3830 · L4630 · L5030, WSM

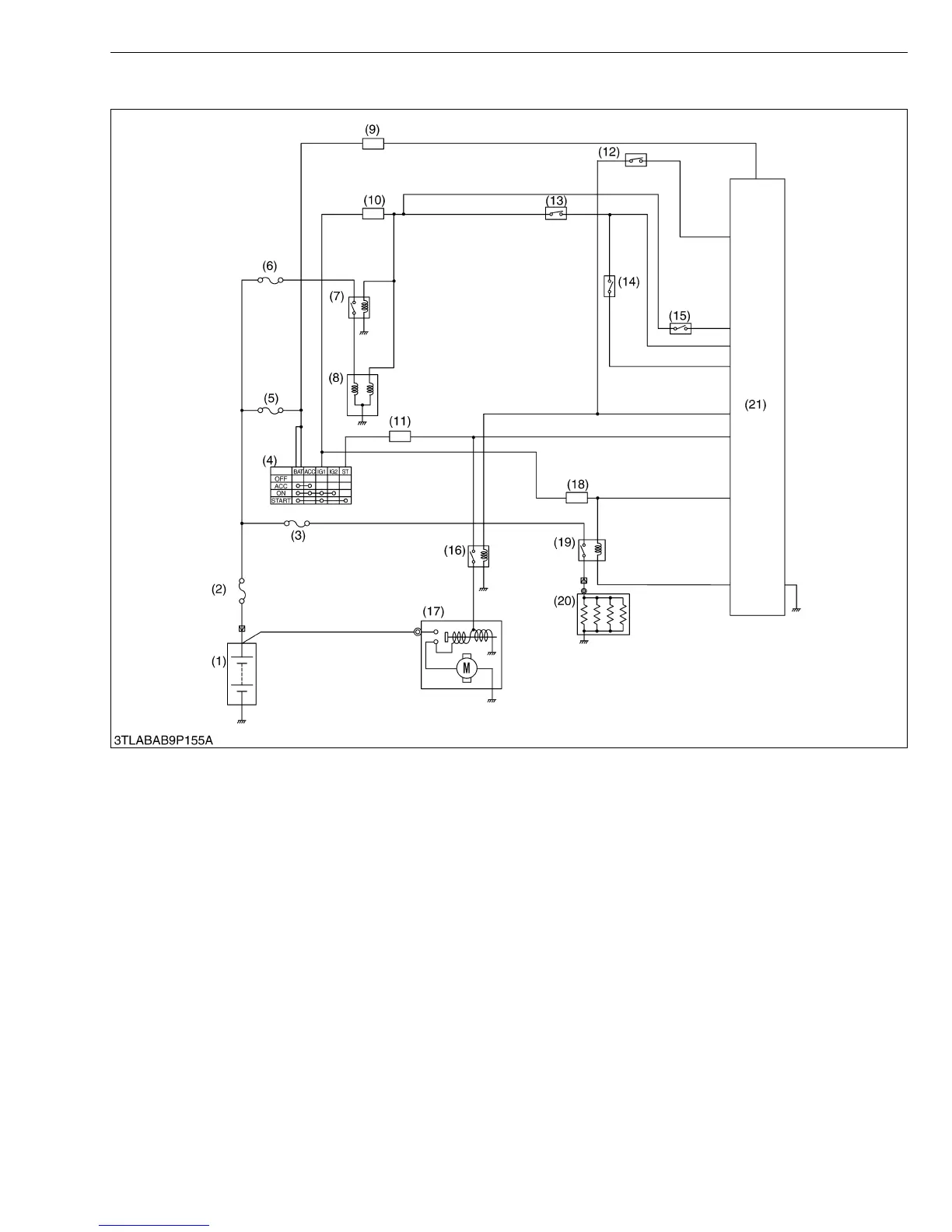

ELECTRICAL SYSTEM
[4] HST MODEL
(1) Battery
(2) Slow Blow Fuse (80 A)
(3) Slow Blow Fuse (50 A)
(4) Main Switch
(5) Slow Blow Fuse (60 A)
(6) Slow Blow Fuse (30 A)
(7) Key Stop Solenoid Relay
(8) Key Stop Solenoid
(9) Fuse (5 A)
(10) Fuse (5 A)
(11) Fuse (30 A)
(12) PTO Switch
(13) HST Pedal Switch
(14) Main Clutch Switch
(15) Cruise Switch
(16) Starter Relay
(17) Starter
(18) Fuse (7.5 A)
(19) Glow Relay
(20) Glow Plug
(21) Electronic Instrument Panel
(IntelliPanel)
To Next Page
