TRANSMISSION
[4] TWO STAGE PTO (IF EQUIPPED)
(1) Power Train

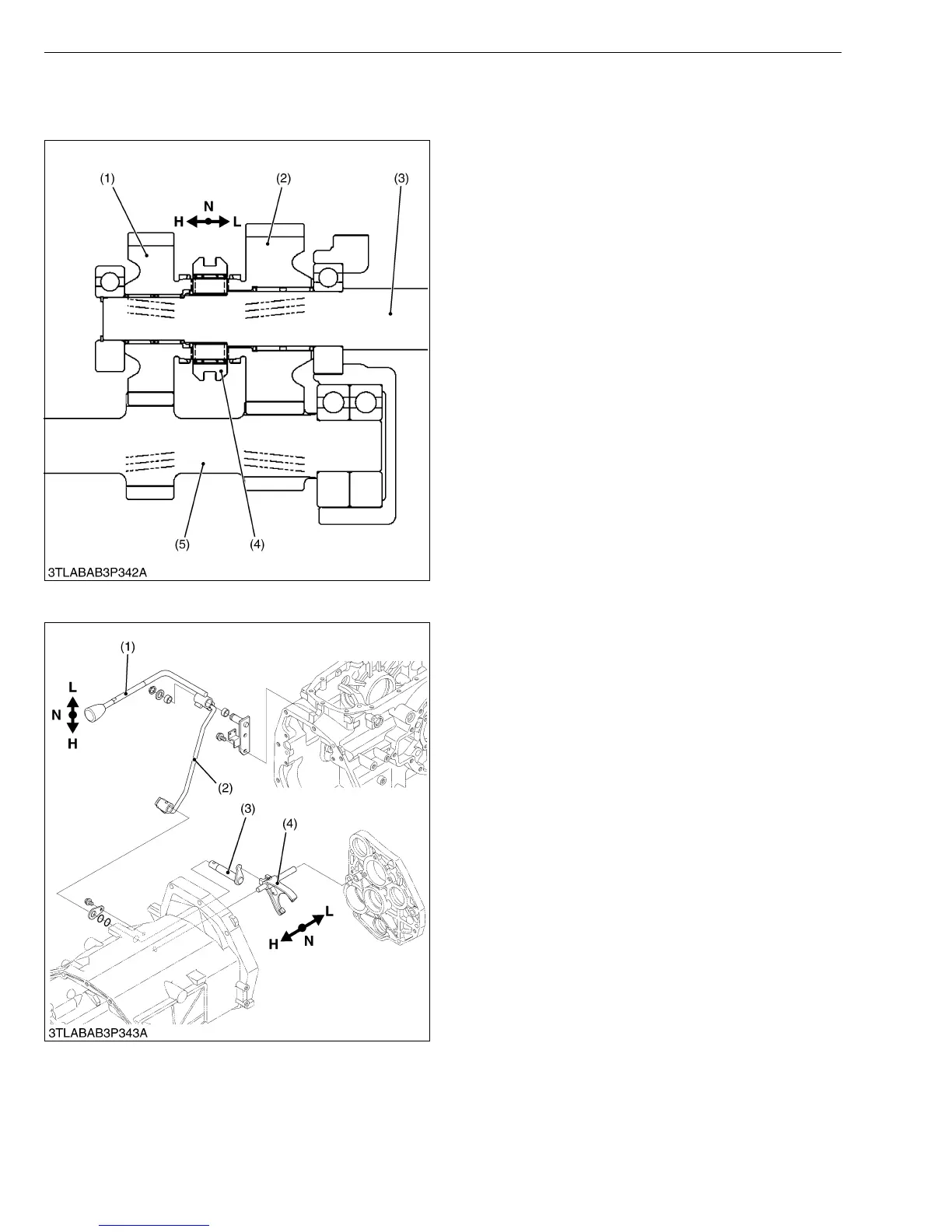

The two stage PTO gear section is located in the mid
case, and it uses constant mesh.
W1022635
(2) Shift Linkage
The links from the PTO speed change lever (1) to the
shift fork (4) are connected as shown in the figure.
When the PTO speed change lever (1) is moved to L
side, the shift fork (4) is moved to the L side by means of
the rod (2) to the Lo-speed side. When the PTO speed
change lever (1) is moved to the H side, the shift fork (4)
is moved to the Hi-speed side.
W1022707
(1) Gear for High
(2) Gear for Low
(3) PTO Drive Shaft
(4) Shifter
(5) PTO Counter Shaft
L : Lo-speed Shift
N : Neutral Position
H : Hi-speed Shift
(1) PTO Speed CHange Lever
(2) Rod
(3) Shift Arm
(4) Shift Fork
L : Lo-speed Shift
N : Neutral Position
H : Hi-speed Shift
