3-M37
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION
[3] SHIFT LINKAGE MECHANISM
The shift linkage mechanism of “Front Wheel Drive Lever”, refer to page 3-M6.
(1) Range Gear Shift Lever

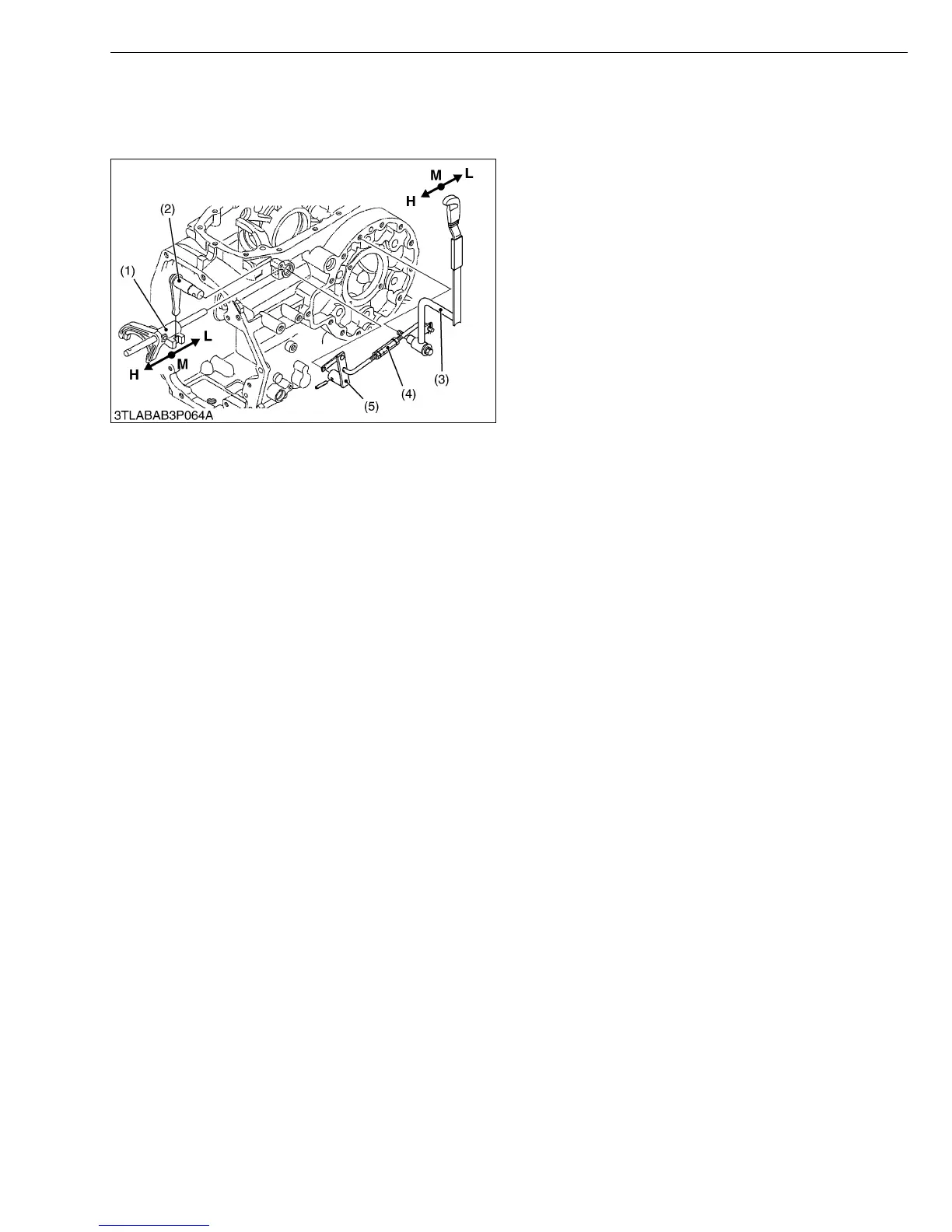

The links are connected from the shift lever (3) to the
shift fork (1) as shown in figure.
W1025045
(1) Shift Fork
(2) Shift Arm
(3) Range Gear Shift Lever
(4) Rod
(5) Sub-arm
H : High Speed
M : Middle Speed
L : Low Speed
KiSC issued 02, 2007 A
