L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM

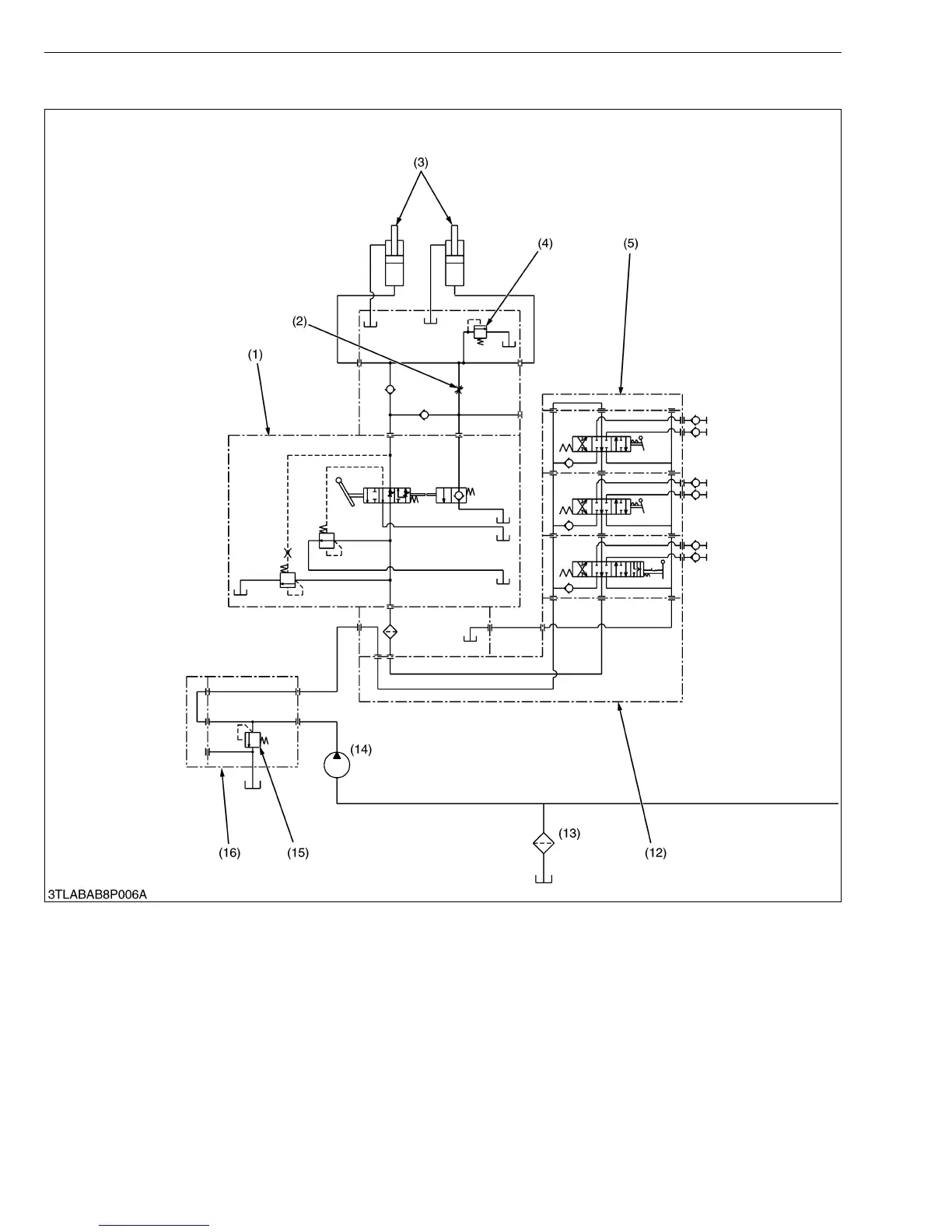

[3] HYDROSTATIC TRANSMISSION
(1) Position Control Valve
(2) Lowering Speed Adjusting
Valve
(3) Hydraulic Cylinder
(4) Cylinder Safety Valve
(5) Auxiliary Control Valve
(6) Power Steering Controller
(Refer to STEERING Section)
(7) Hydraulic Pump 2
(8) Servo Regulator (Refer to
TRANSMISSION Section)
To Next Page
