L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM
4. FRONT HYDRAULIC BLOCK
The front hydraulic block is provided to take power out from the tractor to operate the hydraulic cylinders on the
implement, such as front end loader, front blade and so on.

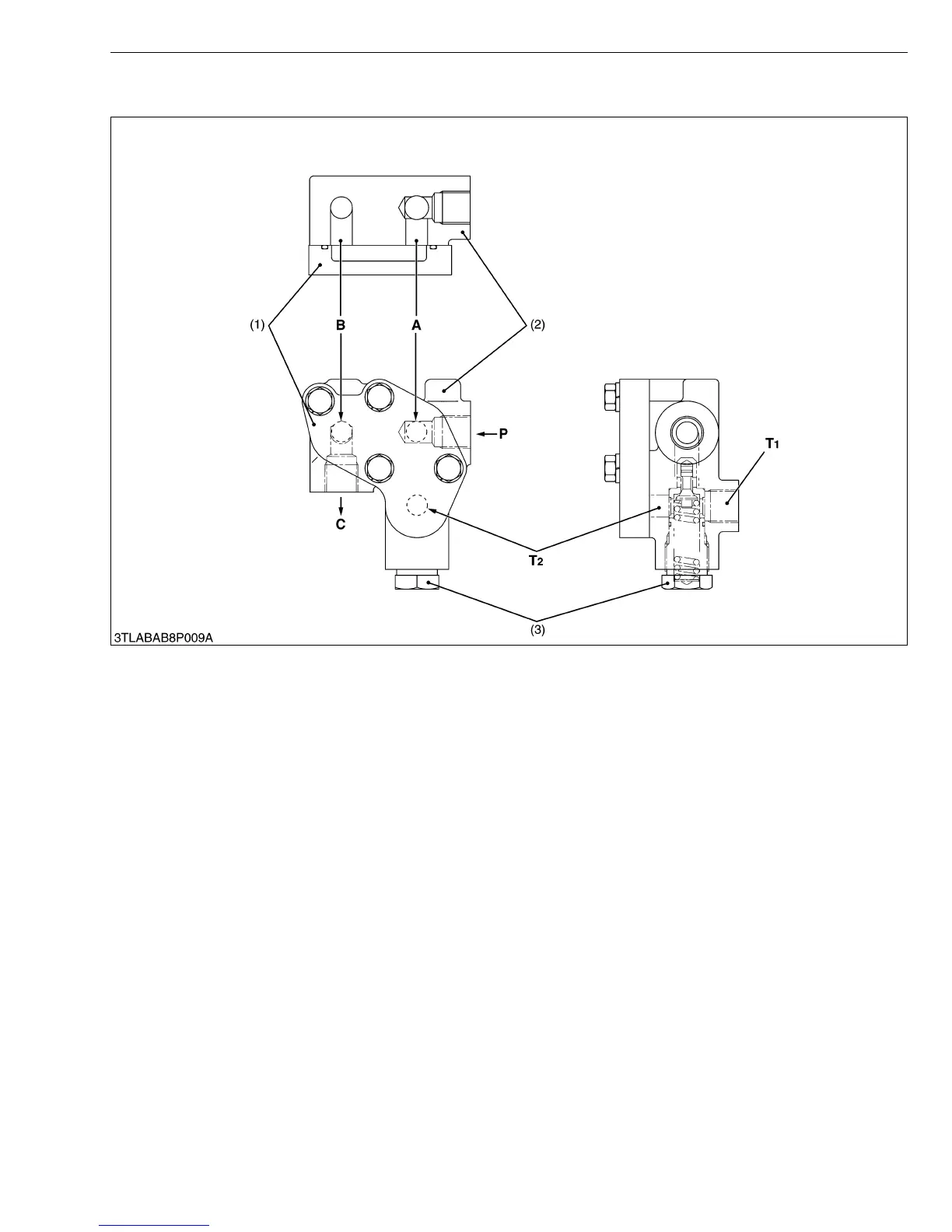

(1) Cap
(2) Front Hydraulic Block
(3) Relief Valve
A : To Implement Control Valve
B : From Implement Control
Valve
C : To Position Control Valve
P : From Hydraulic Pump
T
1 :To Transmission Case
T
2 :From Implement Control
Valve
KiSC issued 02, 2007 A
